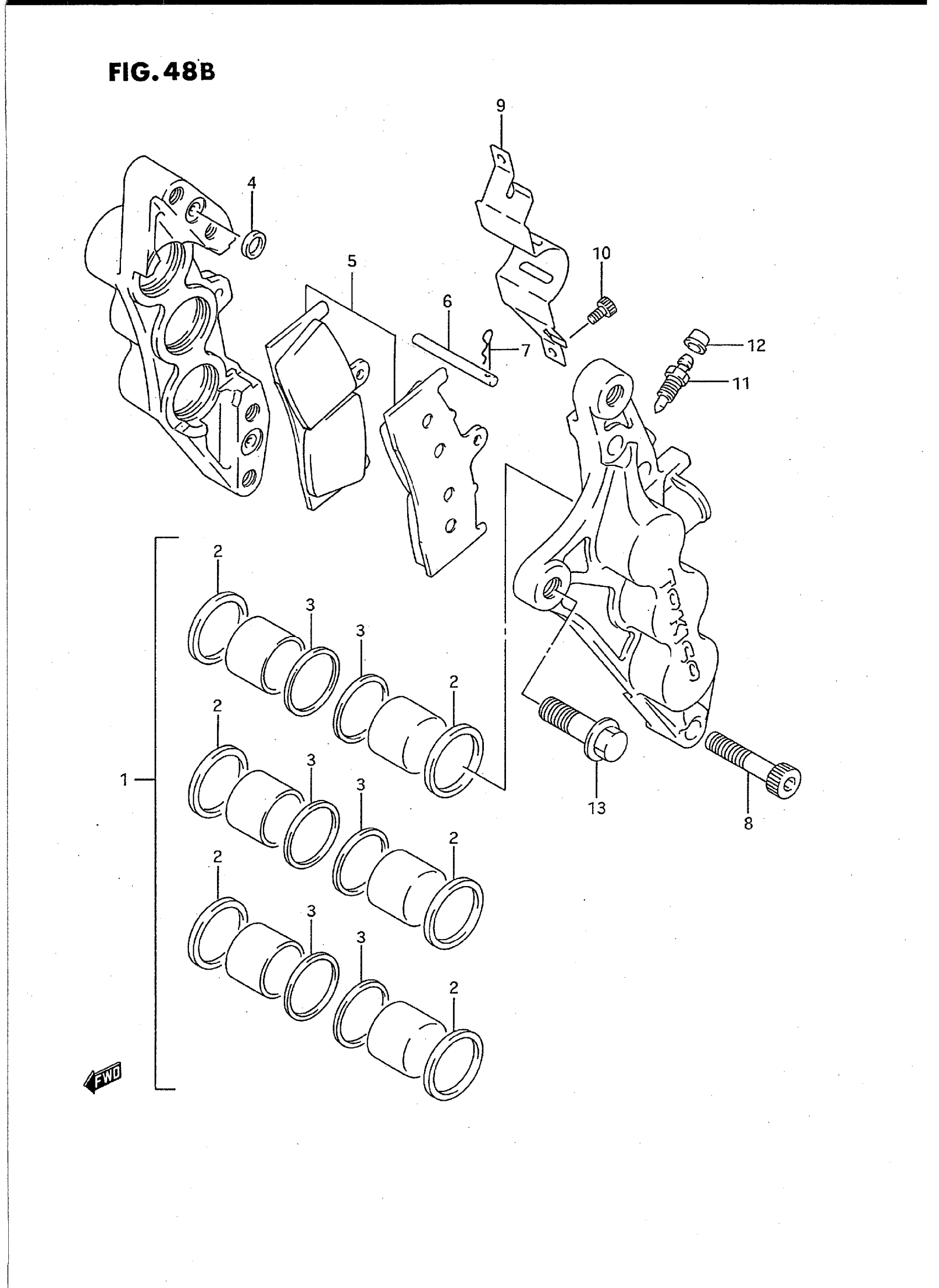

Suzuki GSX-R750WS (1995) FRONT CALIPERS (MODEL S) Diagram

NO DESCRIPTION AVAILABLE This part replaces 59100-46E10.

59100-46E11

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 12 This part replaces 59300-46E10.

59300-46E11

Unavailable

PISTON SET This part replaces 59100-46810.

59100-46811

Unavailable

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

SEAL, WIPER

59108-04A00

$10.77

SEAL

69107-34200

$10.71

PAD SET

59300-46830

Unavailable

PIN

69141-45000

$5.17

.CLIP, PAD PIN

69142-45000

$4.34

BOLT

59145-00A00

Unavailable

COVER

59151-46E00

$30.05

.SCREW

59153-22D00

$6.30

BLEEDER

59121-18410

$8.73

CAP

55156-66310

$5.17

BOLT This part replaces 01550-10303.

01550-1030A

$3.55
