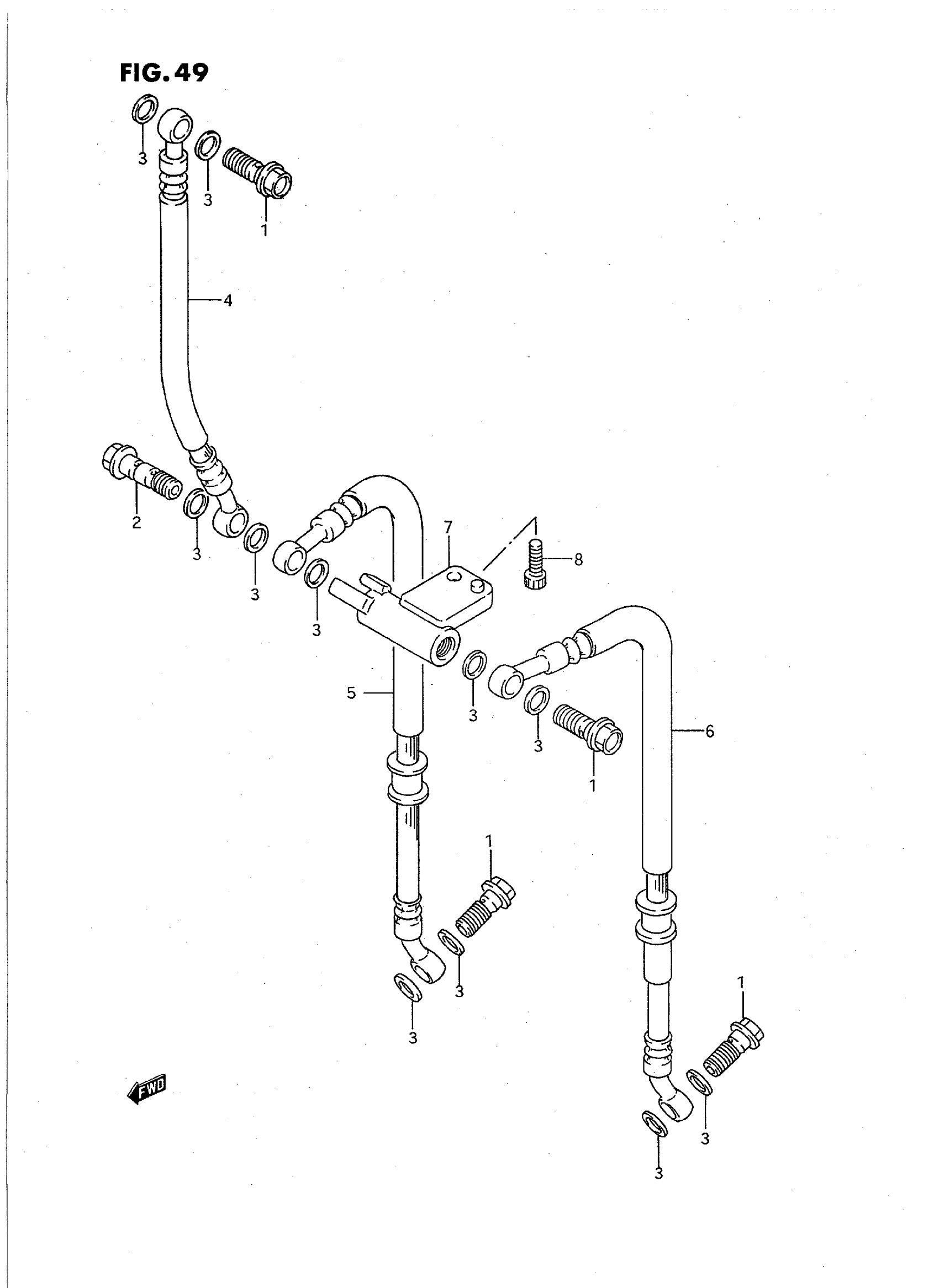

Suzuki GSX-R750WS (1995) FRONT BRAKE HOSE (MODEL P) Diagram

#

Description

Price

1

BOLT (10X1.00X24)

09360-10017

$3.08

2

BOLT (10X1.00X36)

09360-10018

$7.38

3

WASHER (10X15X1.5)

09161-10009

$1.83

4

HOSE, FRONT BRAKE NO.1

59480-17E00

Unavailable

5

HOSE, FRONT BRAKE NO.2 RH

59240-17E00

Unavailable

6

HOSE, FRONT BRAKE NO.2 LH

59440-17E00

Unavailable

7

JOINT, BRAKE HOSE

59491-17E00

Unavailable

8

BOLT This part replaces 07110-06165.

07130-0616B

$2.38

9

REFER TO FIG.49A (H-13) FOR

SPECIAL NOTE

Unavailable
