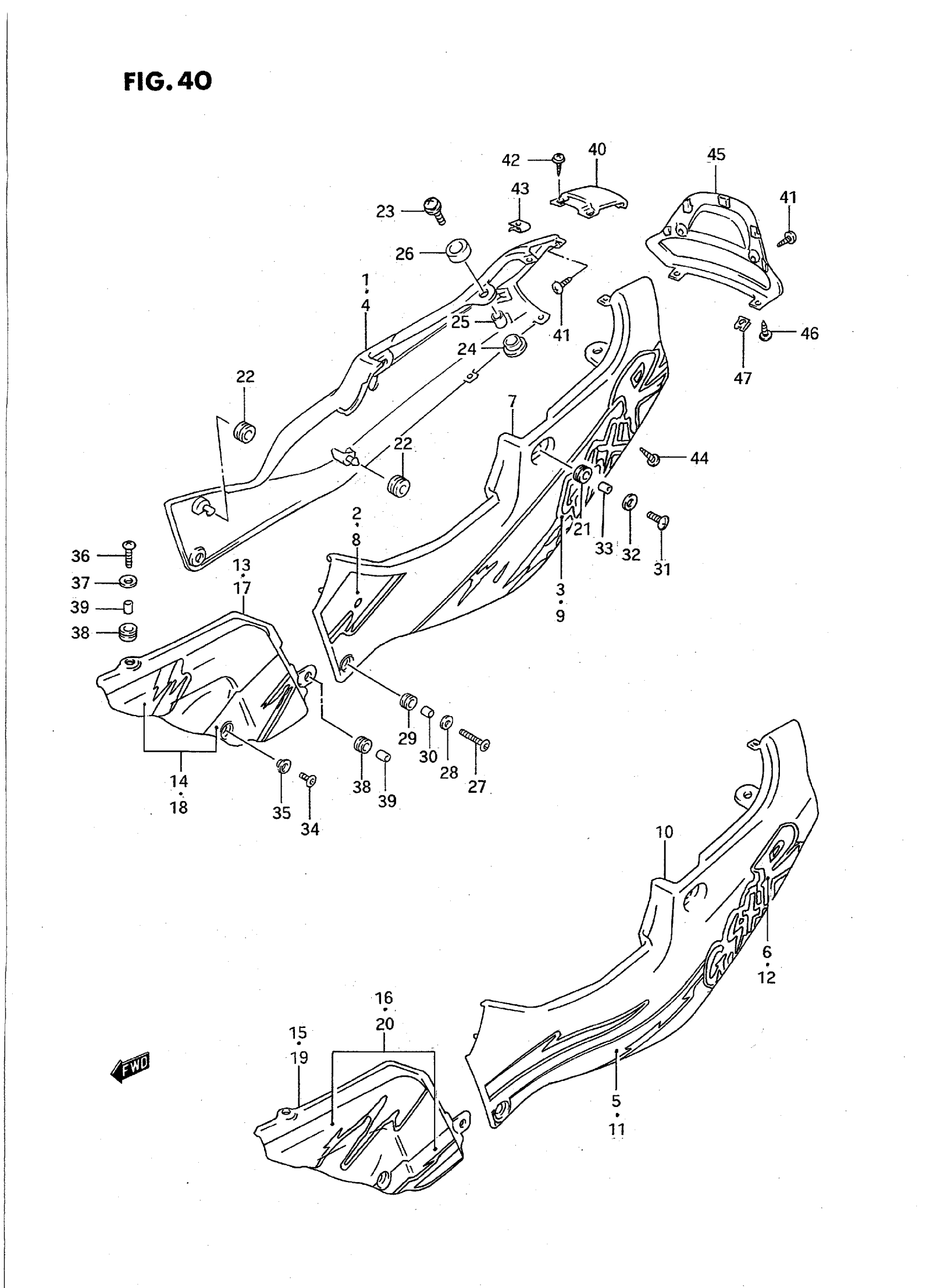

Suzuki GSX-R750WS (1995) FRAME COVER (MODEL P) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR M18; Includes Item(s) 2 - 3

47100-17E60-0JW

Unavailable

2

TAPE, RH | FOR 0JW

68135-17E00-A7U

Unavailable

3

TAPE, LOWER RH | FOR 0JW

68136-17E00-A5U

Unavailable

4

COVER, FRAME RH (BLACK) | FOR 1TU; Includes Item(s) 5 - 6

47100-17E80-33J

Unavailable

5

TAPE SET, RH | FOR 33J

68130-17E30-A5Z

Unavailable

6

EMBLEM, RH | FOR 33J

68131-17E10-A6A

Unavailable

7

COVER, FRAME LH (WHITE) | FOR M18; Includes Item(s) 8 - 9

47200-17E60-0JW

Unavailable

8

TAPE, LH | FOR 0JW

68145-17E00-A7U

Unavailable

9

TAPE, LOWER LH | FOR 0JW

68146-17E00-A5U

Unavailable

10

COVER, FRAME LH (BLACK) | FOR 1TU; Includes Item(s) 11 - 12

47200-17E80-33J

Unavailable

11

TAPE SET, LH | FOR 33J

68140-17E30-A5Z

Unavailable

12

EMBLEM, LH | FOR 33J

68141-17E10-A6A

Unavailable

13

COVER, FRAME BODY RH (WHITE) | FOR M18; Includes Item(s) 14

47500-17E30-0JW

Unavailable

14

TAPE SET, RH | FOR 0JW

68660-17E20-A5W

Unavailable

15

COVER, FRAME BODY RH (BLACK) | FOR 1TU; Includes Item(s) 16

47500-17E40-33J

Unavailable

16

TAPE SET, RH | FOR 33J

68660-17E30-A6B

Unavailable

17

COVER, FRAME BODY LH (WHITE) | FOR M18; Includes Item(s) 18

47600-17E30-0JW

Unavailable

18

TAPE SET, LH | FOR 0JW

68670-17E20-A5W

Unavailable

19

COVER, FRAME BODY LH (BLACK) | FOR 1TU; Includes Item(s) 20

47600-17E40-33J

Unavailable

20

TAPE SET, LH | FOR 33J

68670-17E30-A6B

Unavailable

21

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

22

CUSHION, INNER

09320-08018

$3.04

23

SCREW, UPPER

09136-06083

$2.19

24

CUSHION, CENTER LOWER

45326-17C00

$5.09

25

SPACER This part replaces 09180-06143.

09180-06286

$2.50

26

CUSHION, CENTER UPPER

45149-04A00

$3.59

27

SCREW, FRAME COVER FRONT

09139-06042

$5.55

28

WASHER This part replaces 09160-06006.

09160-06084

$1.78

29

CUSHION

09320-09016

$1.97

30

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

31

SCREW, SIDE

09139-06050

$4.73

32

WASHER This part replaces 09160-06012.

09160-06054

$1.62

33

SPACER This part replaces 09180-06027.

09180-06258

$1.81

34

SCREW, BODY COVER SIDE

09139-05025

$2.05

35

WASHER

09169-06040

$1.92

36

SCREW, BODY COVER UPPER

09125-06055

$2.34

37

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

38

CUSHION

09320-09016

$1.97

39

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

40

COVER, FRAME CENTER | FOR M18

47300-17E00-0JW

Unavailable

40

COVER, FRAME CENTER | FOR 1TU

47300-17E00-33J

Unavailable

41

SCREW, CENTER

09139-05021

$1.72

42

SCREW This part replaces 03141-14125.

03141-1412B

$2.83

43

NUT, FRONT

09148-04024

$2.23

44

SCREW This part replaces 03541-04105.

03541-0410A

$1.68

45

COVER, FRAME REAR

47411-17E00

Unavailable

46

SCREW

09139-05021

$1.72

47

NUT This part replaces 09148-05023.

09148-05021

$1.86

48

COLOR : M18 =

SPECIAL NOTE

Unavailable
