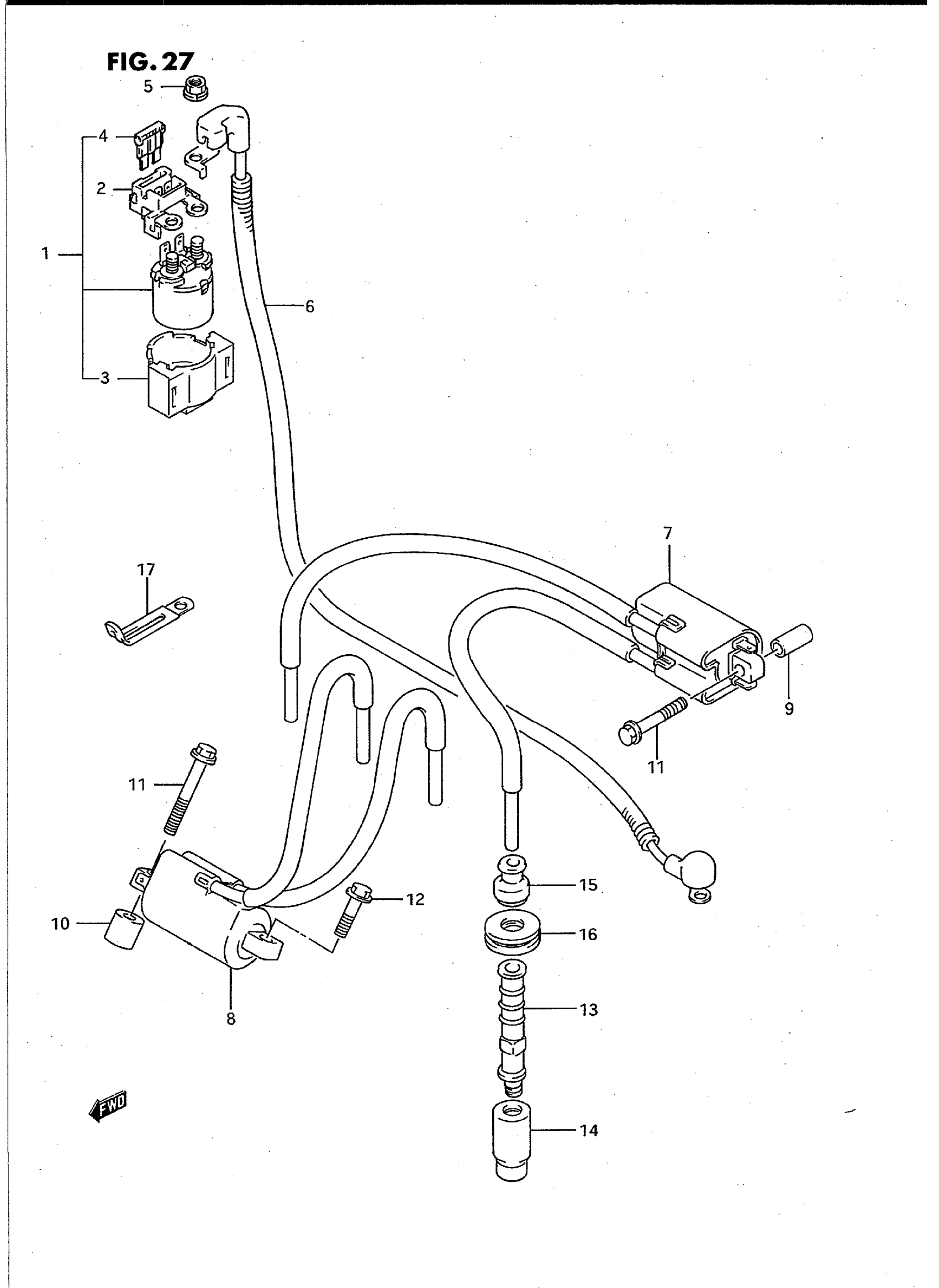

Suzuki GSX-R750WS (1995) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR | Includes Item(s) 2 - 4

31800-07D00

Unavailable

2

TERMINAL

31841-07D00

Unavailable

3

HOLDER

31892-07D00

$15.00

4

FUSE (30A)

09481-30201

Unavailable

5

NUT This part replaces 08361-35066.

08361-3506A

$1.80

6

LEAD WIRE, STARTING MOTOR | MODEL P This part replaces 33810-17E00.

33810-46E01

Unavailable

6

LEAD WIRE, STARTING MOTOR | MODEL R/S This part replaces 33810-17E01.

33810-46E01

Unavailable

7

COIL, IGNITION NO.1

33410-17E00

Unavailable

8

COIL, IGNITION NO.2

33420-17E00

Unavailable

9

SPACER This part replaces 09180-06072.

09180-06271

$2.35

10

SPACER, IGNITION COIL 2-3

33419-17E00

Unavailable

11

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

12

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

13

CAP, SPARK PLUG | MODEL P

33510-17E00

Unavailable

13

CAP, SPARK PLUG | MODEL R/S This part replaces 33510-17E10.

33510-17E11

Unavailable

14

SEAL, PLUG

33541-20C00

$13.43

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

16

COVER | MODEL P/R This part replaces 33543-17E00.

33543-17E01

Unavailable

16

COVER | MODEL S

33543-17E01

Unavailable

17

CLAMP(L:80) | MODEL P/R This part replaces 09404-06404.

09404-06036

$1.74

17

CLAMP | MODEL S This part replaces 09404-06431.

09404-06039

$1.74
