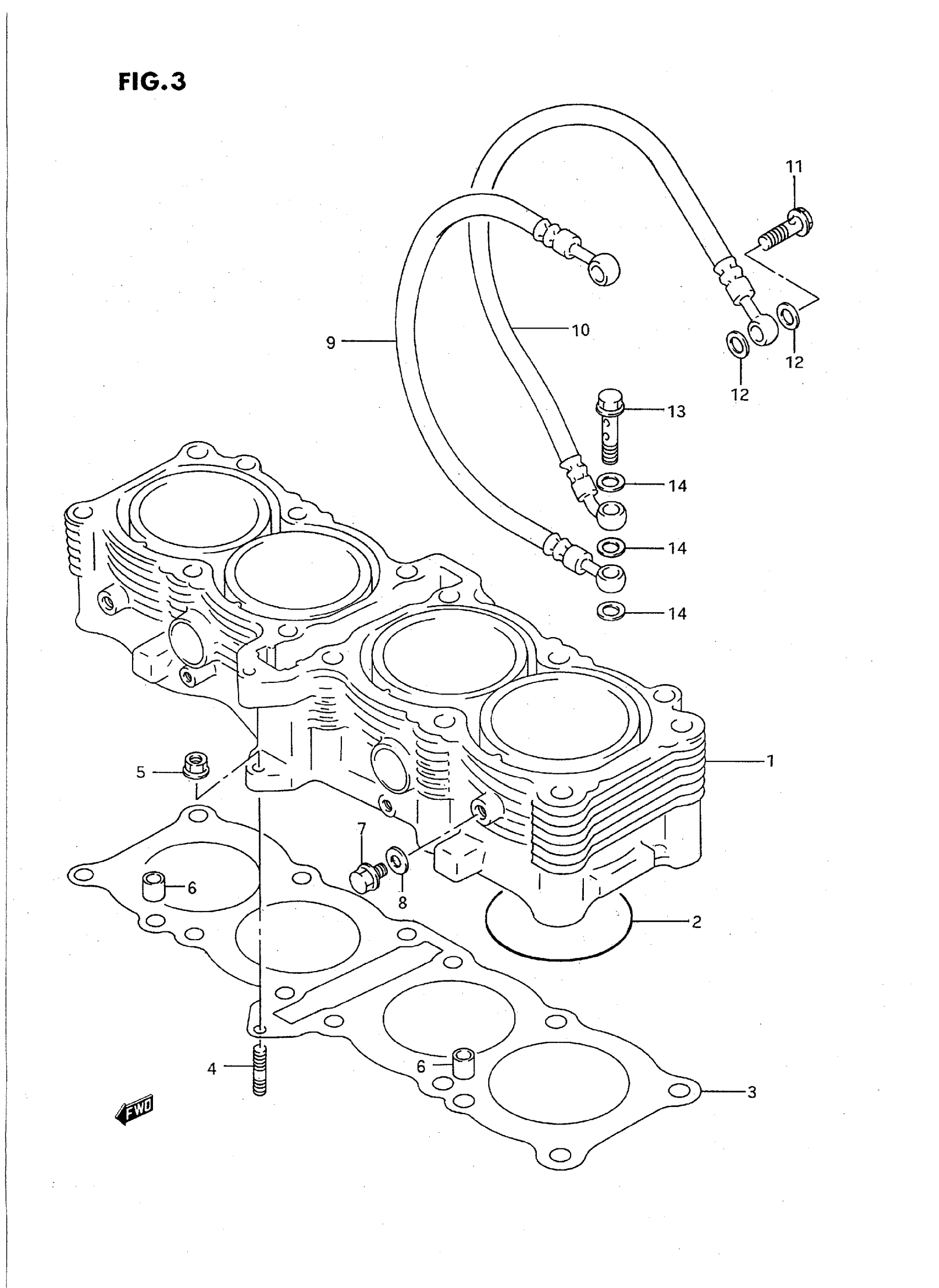

Suzuki GSX-R750WS (1995) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL P This part replaces 11210-17E01.

11200-17E01

Unavailable

1

CYLINDER | MODEL R This part replaces 11210-17E10.

11200-17E01

Unavailable

1

CYLINDER | MODEL S; Includes Item(s) 2

11200-17E01

Unavailable

2

O RING (D:2.6,ID:69.6) This part replaces 09280-75004.

09280-71004

$23.94

3

GASKET, CYLINDER

11241-17E00

Unavailable

4

STUD BOLT | MODEL P/R This part replaces 01421-06205.

01421-0620A

$1.91

4

STUD BOLT | MODEL S This part replaces 01421-06203.

01421-0620A

$1.91

5

NUT | MODEL P This part replaces 08316-16064.

08316-1006B

$2.50

5

NUT | MODEL R/S This part replaces 08316-10063.

08316-1006B

$2.50

6

PIN

04211-11189

$1.78

7

BOLT, CYLINDER DRAIN | MODEL P/R

17415-14300

$2.99

8

GASKET (8.2X14X1) | MODEL P/R This part replaces 09168-08008.

09168-08016

$1.65

9

HOSE, OIL RH | MODEL P This part replaces 11281-17E00.

11281-17E01

Unavailable

9

HOSE, OIL RH | MODEL R/S

11281-17E01

Unavailable

10

HOSE, OIL LH | MODEL P This part replaces 11282-17E00.

11282-17E01

Unavailable

10

HOSE, OIL LH | MODEL R/S

11282-17E01

Unavailable

11

BOLT,OIL PIPE This part replaces 11284-17E00.

09360-08013

$11.83

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

NO DESCRIPTION AVAILABLE This part replaces 11285-32C00.

09360-10052

Unavailable

14

WASHER (10X15X1.5)

09161-10009

$1.84
