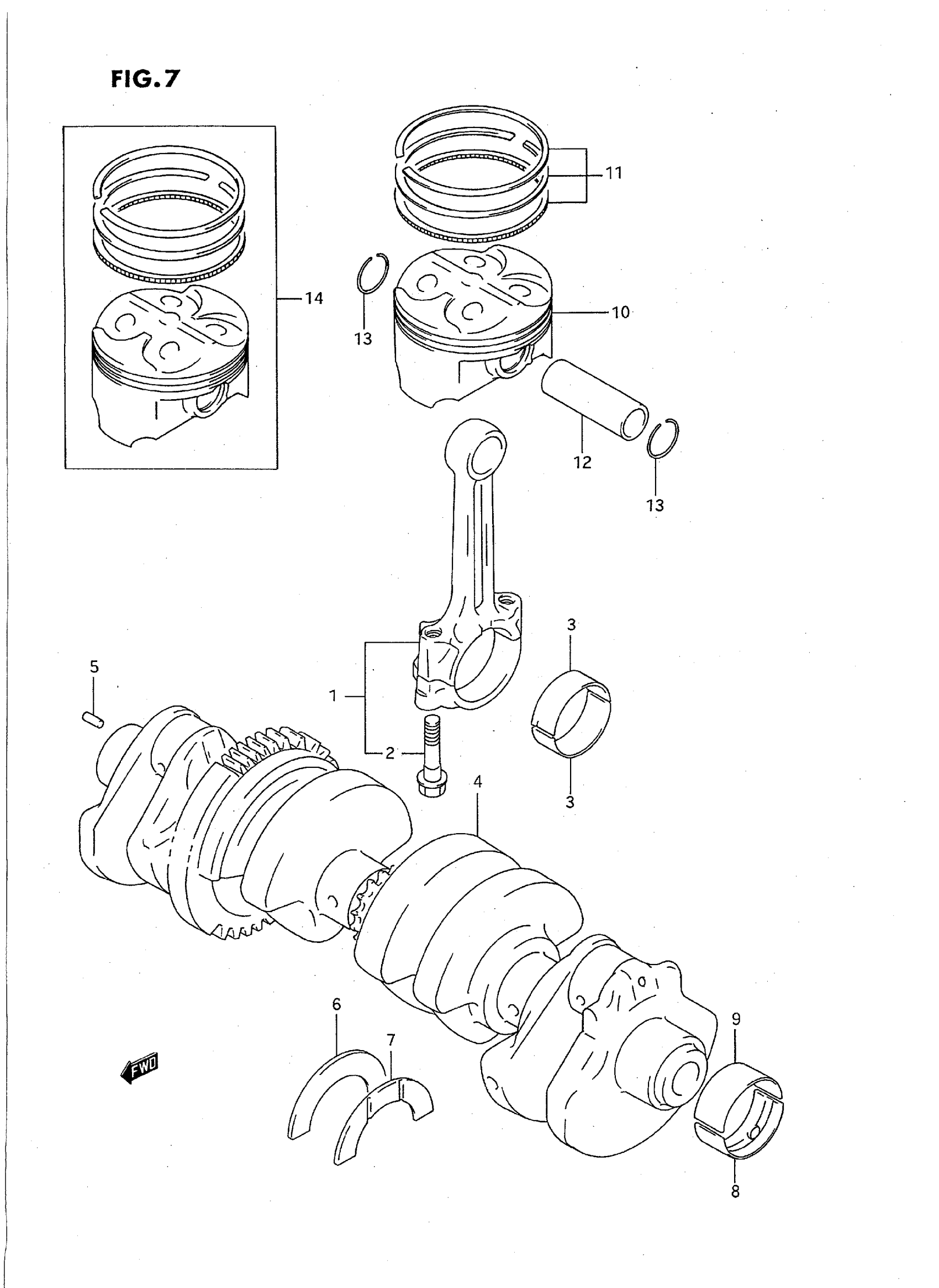

Suzuki GSX-R750WS (1995) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | MODEL P This part replaces 12160-17D00.

12160-17E01

Unavailable

1

ROD ASSY, CONNECTING | MODEL R/S; Includes Item(s) 2 This part replaces 12160-17E00.

12160-17E01

Unavailable

2

BOLT

12163-27A52

Unavailable

3

BEARING, CRANK PIN (GREEN) | MODEL P/R This part replaces 12164-17E00-0A0.

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (GREEN) | MODEL S

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (BLACK) | MODEL P/R This part replaces 12164-17E00-0B0.

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BLACK) | MODEL S

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BROWN) | MODEL P/R This part replaces 12164-17E00-0C0.

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (BROWN) | MODEL S

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (YELLOW) | MODEL P/R This part replaces 12164-17E00-0D0.

12164-17E01-0D0

$17.65

3

BEARING, CRANK PIN (YELLOW) | MODEL S

12164-17E01-0D0

$17.65

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-17821

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$11.38

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.69

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.69

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.50

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$11.38

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$11.60

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-17E00-0A0

Unavailable

8

BEARING, CRANKSHAFT (BLACK)

12229-17E00-0B0

Unavailable

8

BEARING, CRANKSHAFT (BROWN)

12229-17E00-0C0

Unavailable

8

BEARING, CRANKSHAFT (YELLOW)

12229-17E00-0D0

Unavailable

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-17E10-0A0

Unavailable

9

BEARING, CRANKSHAFT (BLACK)

12229-17E10-0B0

$13.97

9

BEARING, CRANKSHAFT (BROWN)

12229-17E10-0C0

Unavailable

9

BEARING, CRANKSHAFT (YELLOW)

12229-17E10-0D0

Unavailable

10

PISTON | MODEL P This part replaces 12111-17E04-0F0.

12111-17E20-0F0

Unavailable

10

PISTON | MODEL R/S

12111-17E20-0F0

Unavailable

11

RING SET, PISTON | MODEL P

12140-07D10

$87.28

11

RING SET, PISTON | MODEL R/S

12140-17E10

Unavailable

12

PIN, PISTON

12151-07D00

$18.43

13

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90

14

PISTON SET (OS:0.5) | OPT,MODEL P

12103-17820-050

Unavailable

14

PISTON SET (OS:1.0) | OPT,MODEL P

12103-17820-100

Unavailable

14

PISTON SET (OS:0.5) | OPT,MODEL R/S

12100-17E20-050

Unavailable

14

PISTON SET (OS:1.0) | OPT,MODEL R/S

12100-17E20-100

Unavailable
