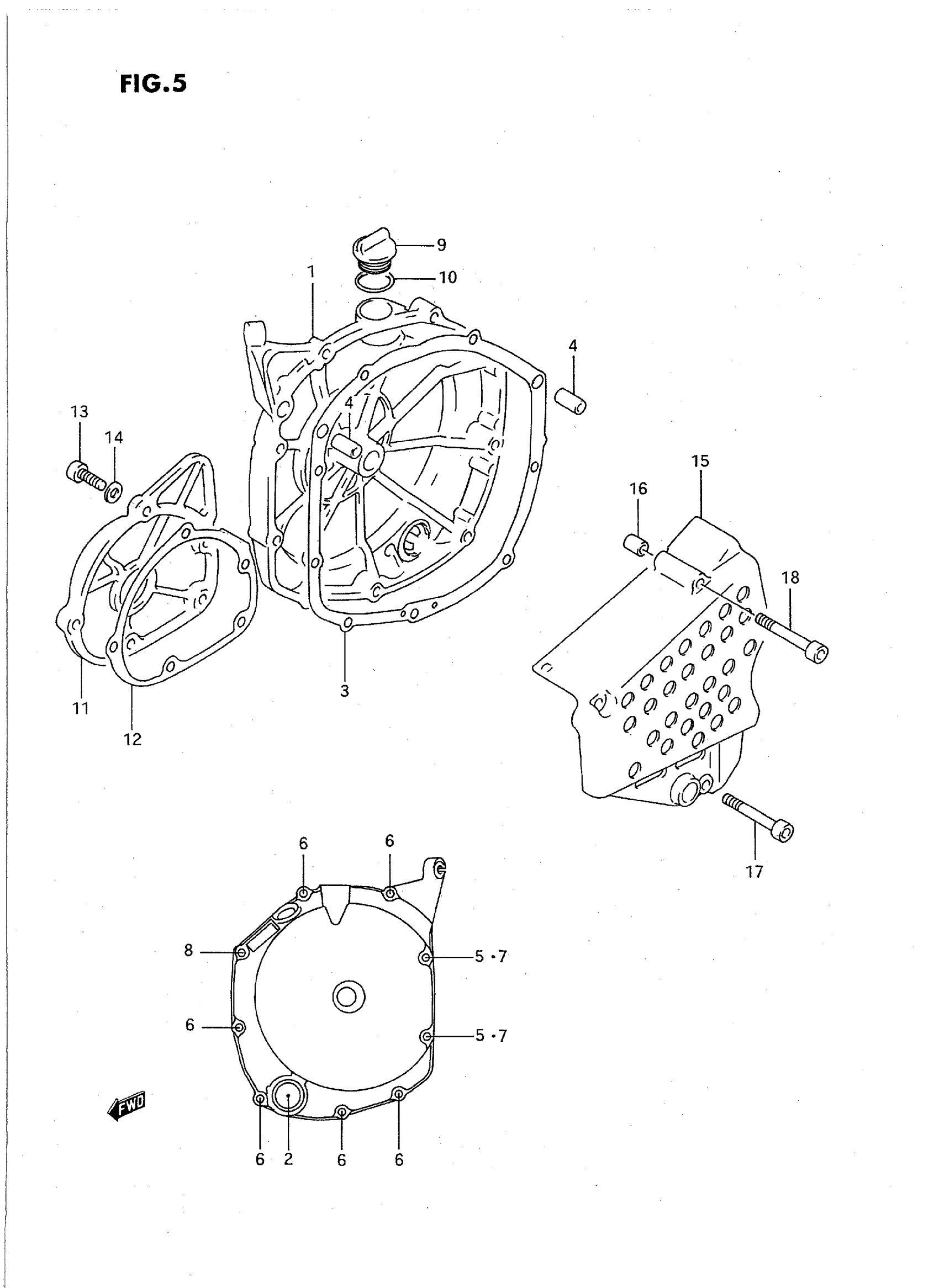

Suzuki GSX-R750WS (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL P This part replaces 11340-17E01.

11340-21E00

Unavailable

1

COVER, CLUTCH | MODEL R/S; Includes Item(s) 2

11340-21E00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER (NA)

11482-17E00

Unavailable

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT | MODEL P This part replaces 07110-06255.

07130-0625B

$3.04

6

BOLT | MODEL R/S This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT | MODEL P This part replaces 07110-06305.

07130-0630B

$3.37

7

BOLT | MODEL R/S This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT | MODEL P This part replaces 07110-06355.

07130-0635B

$3.37

8

BOLT | MODEL R/S This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG This part replaces 09259-20012.

09259-20008-XC0

$7.50

10

O RING

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR | MODEL P This part replaces 11381-17E00.

11381-31E00

Unavailable

11

COVER, SIGNAL GENERATOR | MODEL R/S

11381-31E00

Unavailable

12

GASKET, SIGNAL GENERATOR COVE

11491-17E01

Unavailable

13

BOLT,6X23 | MODEL P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

13

BOLT (6X23) | MODEL R/S

09106-06082

$2.62

14

GASKET

09168-06024

$2.20

15

COVER, ENGINE SPROCKET | MODEL P This part replaces 11361-17E00.

11361-17E10

Unavailable

15

COVER, ENGINE SPROCKET | MODEL R/S

11361-17E10

Unavailable

16

PIN

04211-09129

$1.65

17

BOLT | MODEL P This part replaces 07110-06505.

07130-0650B

$4.10

17

BOLT (6X50) | MODEL R/S

09106-06083

$5.00

18

BOLT | MODEL P This part replaces 07110-06555.

07130-0655B

$4.10

18

BOLT (6X50) | MODEL R/S

09106-06083

$5.00
