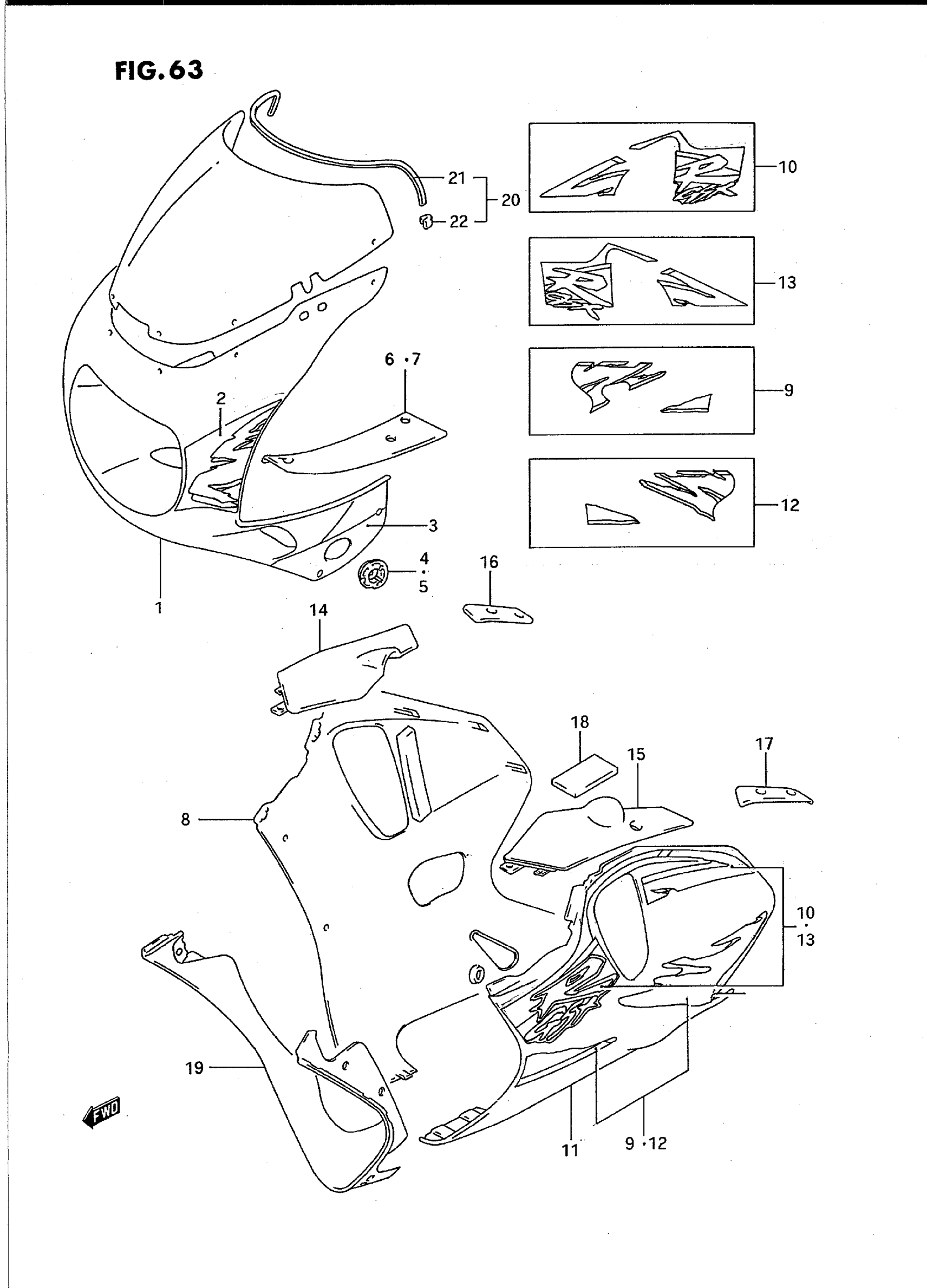

Suzuki GSX-R750WS (1995) COWLING BODY PARTS (MODEL S D4A) Diagram

#

Description
Price

1

COWLING ASSY, B | Includes Item(s) 2 - 5 This part replaces 94400-17EH0-33J.

94400-17EH1-33J

Unavailable

2

TAPE SET, BODY FRONT

68270-17E50-D6G

Unavailable

3

TAPE SET, BODY SIDE

68280-17E30-D6H

Unavailable

4

PLATE, FRONT TURN RH This part replaces 94416-17E20.

94416-17E21

Unavailable

5

PLATE, FRONT TURN LH This part replaces 94417-17E20.

94417-17E21

Unavailable

6

PANEL, UPPER RH This part replaces 94415-17E20.

94415-17E21

Unavailable

7

PANEL, UPPER LH This part replaces 94425-17E20.

94425-17E21

Unavailable

8

NO DESCRIPTION AVAILABLE | Includes Item(s) 9 - 10 This part replaces 94407-17EG0-Y22.

94407-17EG1-Y22

Unavailable

9

TAPE SET, UNDER LOWER RH

68180-17E80-D6F

Unavailable

10

TAPE SET, UNDER RH

68180-17E90-Y81

Unavailable

11

COWLING ASSY,UN | Includes Item(s) 12 - 13 This part replaces 94408-17EG0-Y22.

94408-17EG1-Y22

Unavailable

12

TAPE SET, UNDER LOWER LH

68190-17E80-D6F

Unavailable

13

TAPE SET, UNDER LH

68190-17E90-Y81

Unavailable

14

PANEL, LOWER FRONT RH

94416-17E10

Unavailable

15

PANEL, LOWER FRONT LH

94426-17E10

Unavailable

16

PANEL, LOWER REAR RH

94436-17E00

Unavailable

17

PANEL, LOWER REAR LH

94446-17E00

Unavailable

18

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

19

COWLING, UNDER CENTER (BLACK)

94498-17E00-019

Unavailable

20

SCREEN SET, WIND | Includes Item(s) 21 - 22

94610-17E30

Unavailable

21

MOLDING | L:700->600

94631-33C01

$18.02

22

CLIP

94637-21E00

$8.18

23

COLOR : D4A = 33J(BLACK),

SPECIAL NOTE

Unavailable
