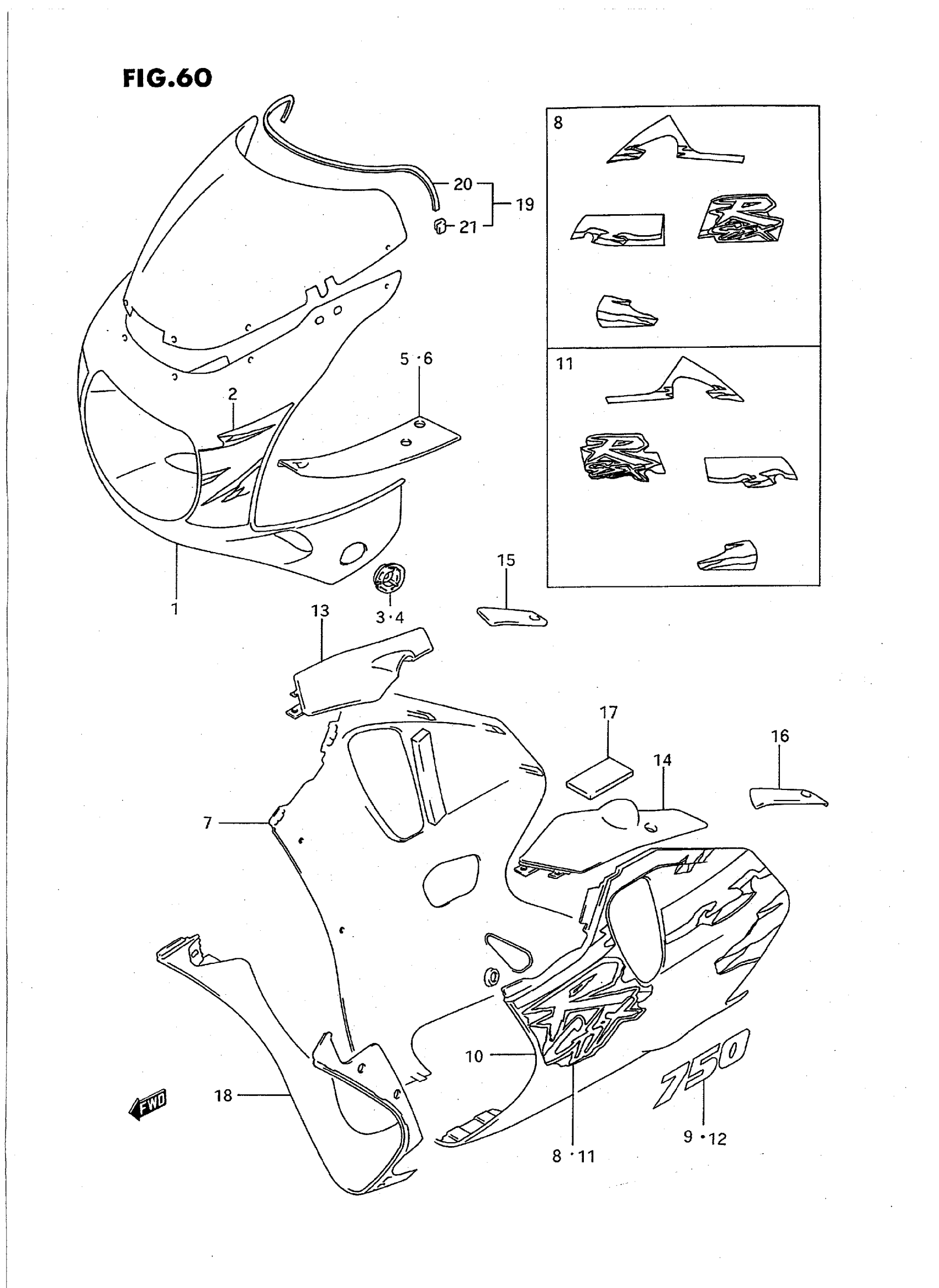

Suzuki GSX-R750WS (1995) COWLING BODY PARTS (MODEL R M18) Diagram

#

Description
Price

1

COWLING ASSY, BODY (WHITE) | Includes Item(s) 2 - 4

94400-17E70-0JW

Unavailable

2

TAPE SET, BODY

68270-17E30-C4P

Unavailable

3

PLATE, FRONT TURN RH This part replaces 94416-17E20.

94416-17E21

Unavailable

4

PLATE, FRONT TURN LH This part replaces 94417-17E20.

94417-17E21

Unavailable

5

PANEL, UPPER RH This part replaces 94415-17E20.

94415-17E21

Unavailable

6

PANEL, UPPER LH This part replaces 94425-17E20.

94425-17E21

Unavailable

7

COWLING ASSY, UNDER RH | Includes Item(s) 8 - 9

94407-17ED0-1LE

Unavailable

8

TAPE SET, UNDER RH

68180-17E50-1WY

Unavailable

9

EMBLEM, 750

68181-17E10-20H

Unavailable

10

COWLING ASSY, UNDER LH | Includes Item(s) 11 - 12

94408-17ED0-1LE

Unavailable

11

TAPE SET, UNDER LH

68190-17E50-1WY

Unavailable

12

EMBLEM, 750

68181-17E10-20H

Unavailable

13

PANEL, LOWER FRONT RH

94416-17E10

Unavailable

14

PANEL, LOWER FRONT LH

94426-17E10

Unavailable

15

PANEL, LOWER REAR RH

94436-17E00

Unavailable

16

PANEL, LOWER REAR LH

94446-17E00

Unavailable

17

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

18

COWLING, UNDER CENTER (BLACK)

94498-17E00-019

Unavailable

19

SCREEN SET, WIND | Includes Item(s) 20 - 21

94610-17E20

Unavailable

20

MOLDING | L:700->600

94631-33C01

$18.02

21

CLIP

94637-21E00

$8.18

22

COLOR : M18 =

SPECIAL NOTE

Unavailable
