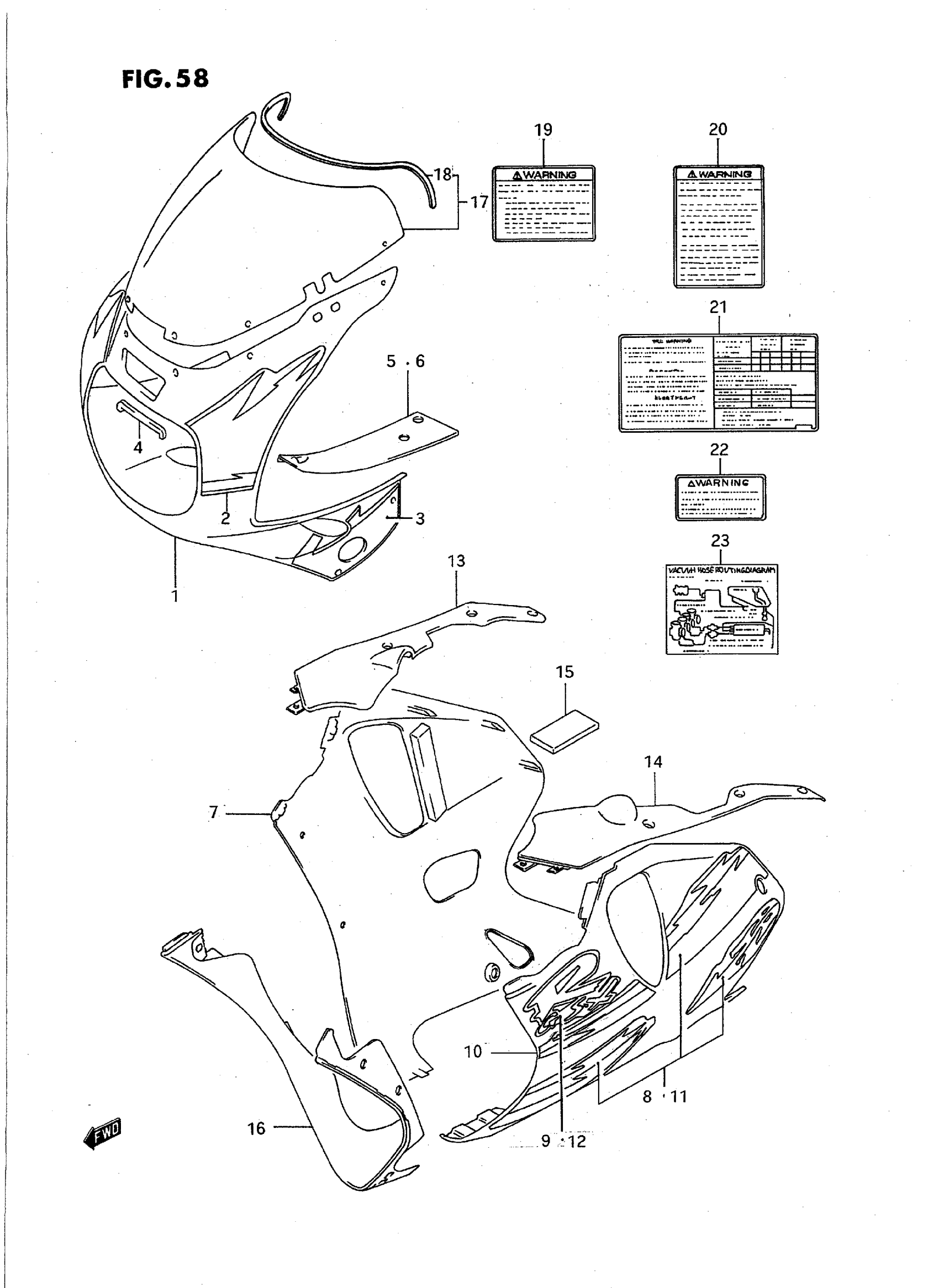

Suzuki GSX-R750WS (1995) COWLING BODY PARTS (MODEL P M18) Diagram

#

Description
Price

1

COWLING ASSY, BODY (WHITE) | Includes Item(s) 2 - 3

94400-17E30-0JW

Unavailable

2

TAPE SET, FRONT

68270-17E20-A5W

Unavailable

3

TAPE SET, SIDE

68280-17E11-1LE

Unavailable

4

CUSHION, FRONT POSITION LAMP

94418-17E00

Unavailable

5

PANEL, UPPER, RH

94415-17E00

Unavailable

6

PANEL, UPPER, LH

94425-17E00

Unavailable

7

COWLING ASSY, UNDER RH | Includes Item(s) 8 - 9

94407-17E60-1LE

Unavailable

8

TAPE SET, UNDER RH

68180-17E30-A5S

Unavailable

9

EMBLEM

68181-17E00-A6D

Unavailable

10

COWLING ASSY, UNDER, LH | Includes Item(s) 11 - 12

94408-17E60-1LE

Unavailable

11

TAPE SET, UNDER LH

68190-17E30-A5S

Unavailable

12

EMBLEM

68181-17E00-A6D

Unavailable

13

PANEL, LOWER RH

94416-17E00

Unavailable

14

PANEL, LOWER LH

94426-17E00

Unavailable

15

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

16

COWLING, UNDER CENTER (BLACK)

94498-17E00-019

Unavailable

17

SCREEN SET, WIND | Includes Item(s) 18

94610-17E00

Unavailable

18

MOLDING | ->94631-18D01L:800->600 This part replaces 94631-19C30.

94631-18D01

Unavailable

19

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

20

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

21

LABEL, TIRE AIR PRESSURE

68332-17E30

Unavailable

22

LABEL,WARNING S This part replaces 68613-18E00.

68613-18E01

$6.37

23

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-46E00

Unavailable

24

COLOR : M18 =

SPECIAL NOTE

Unavailable
