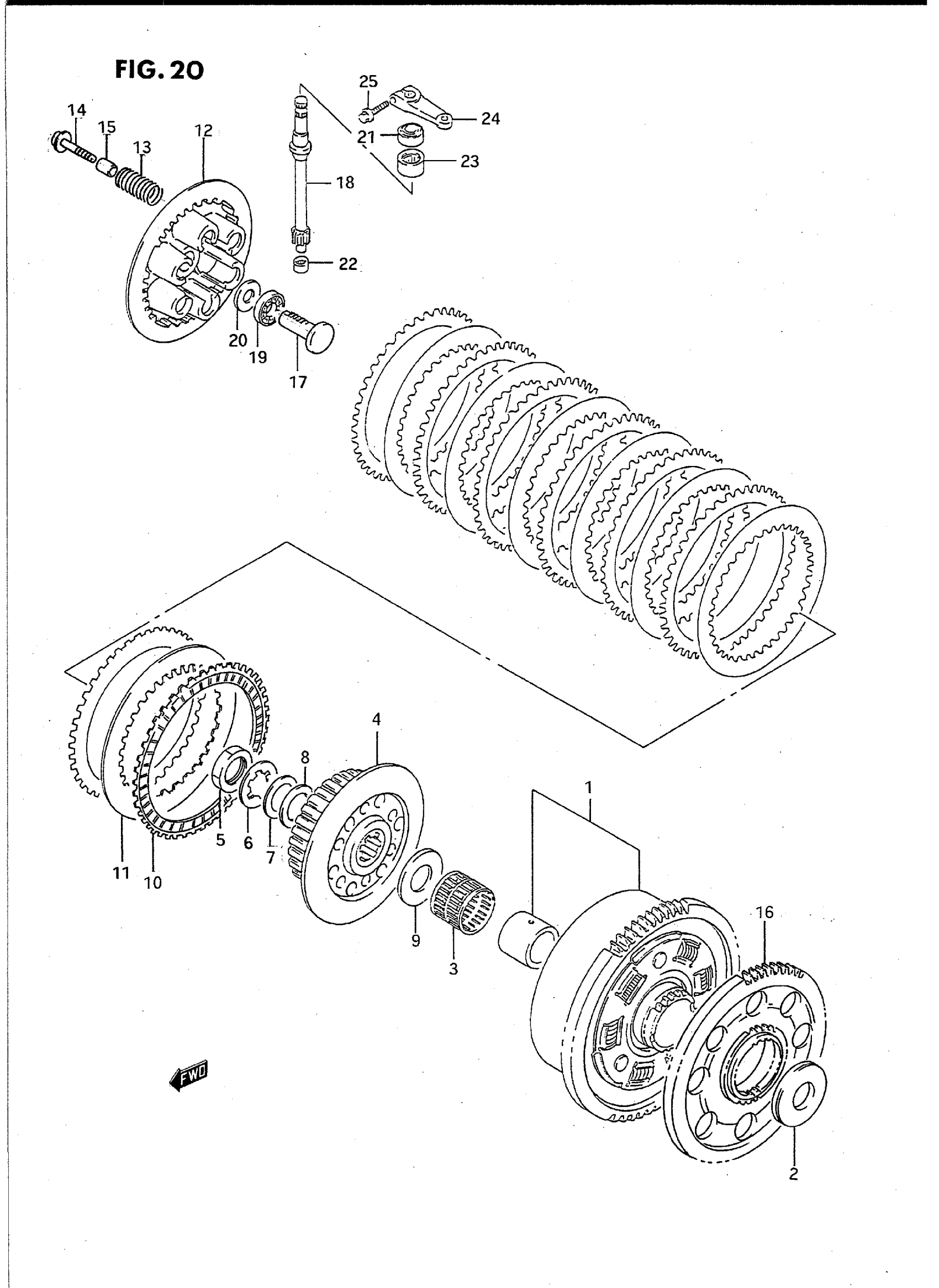

Suzuki GSX-R750WS (1995) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:75) | MODEL P

21200-17841

Unavailable

1

GEAR ASSY, PRIM | MODEL R/S This part replaces 21200-21841.

21200-21842

Unavailable

2

WASHER

09160-25067

Unavailable

3

BEARING

09263-35017

$40.54

4

HUB, SLEEVE | MODEL P

21410-17E10

Unavailable

4

HUB, SLEEVE | MODEL R/S This part replaces 21411-17E20.

21410-17E10

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09167-25007

Unavailable

7

WASHER, WAVE

09164-25001

Unavailable

8

WASHER

08211-25441

Unavailable

9

.WASHER (25X50X2.5)

09160-25056

$11.61

10

PLATE, CLUTCH DRIVE NO.2 | MODEL P/R This part replaces 21441-17E10.

21441-17E21

Unavailable

10

PLATE, DRIVE (T:2.2) | MODEL S

21441-17E21

Unavailable

11

PLATE, DRIVEN (T:2.0)

21451-17E00

Unavailable

12

DISC, PRESSURE | MODEL P This part replaces 21462-17D01.

21462-17E01

Unavailable

12

DISC, PRESSURE | MODEL R/S

21462-17E01

Unavailable

13

SPRING

09440-20020

$8.18

14

BOLT (6X40)

09116-06161

Unavailable

15

SPACER (6.2X12X16)

09180-06198

$4.32

16

GEAR, ALTERNATOR (NT:34/61) | MODEL P This part replaces 22721-17E01.

22721-21E02

Unavailable

16

GEAR, ALTERNATOR (NT:34/61) | MODEL R/S This part replaces 22721-21E01.

22721-21E02

Unavailable

17

RACK, RELEASE | MODEL P This part replaces 23165-07D00.

23165-21E00

Unavailable

17

RACK, RELEASE | MODEL R/S

23165-21E00

Unavailable

18

PINION, RELEASE | MODEL P

23261-17C00

Unavailable

18

PINION, RELEASE | MODEL R/S

23261-21E00

Unavailable

19

BEARING (15X28X2)

09263-15003

$8.29

20

WASHER, CLUTCH PUSH | MODEL P This part replaces 09160-15015.

09160-15045

$3.89

20

WASHER (15X28X1) | MODEL R/S

09160-15045

$3.89

21

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

22

BEARING (10X14X10) This part replaces 09263-10013.

09263-10014

$13.52

23

BEARING (15X22X12)

09263-15012

$15.48

24

ARM, CLUTCH RELEASE

23271-40000

Unavailable

25

BOLT | MODEL P

01547-06207

$2.01

25

BOLT, GEAR SHIFT LINK | MODEL R/S This part replaces 01500-06203.

01500-0620A

$1.78
