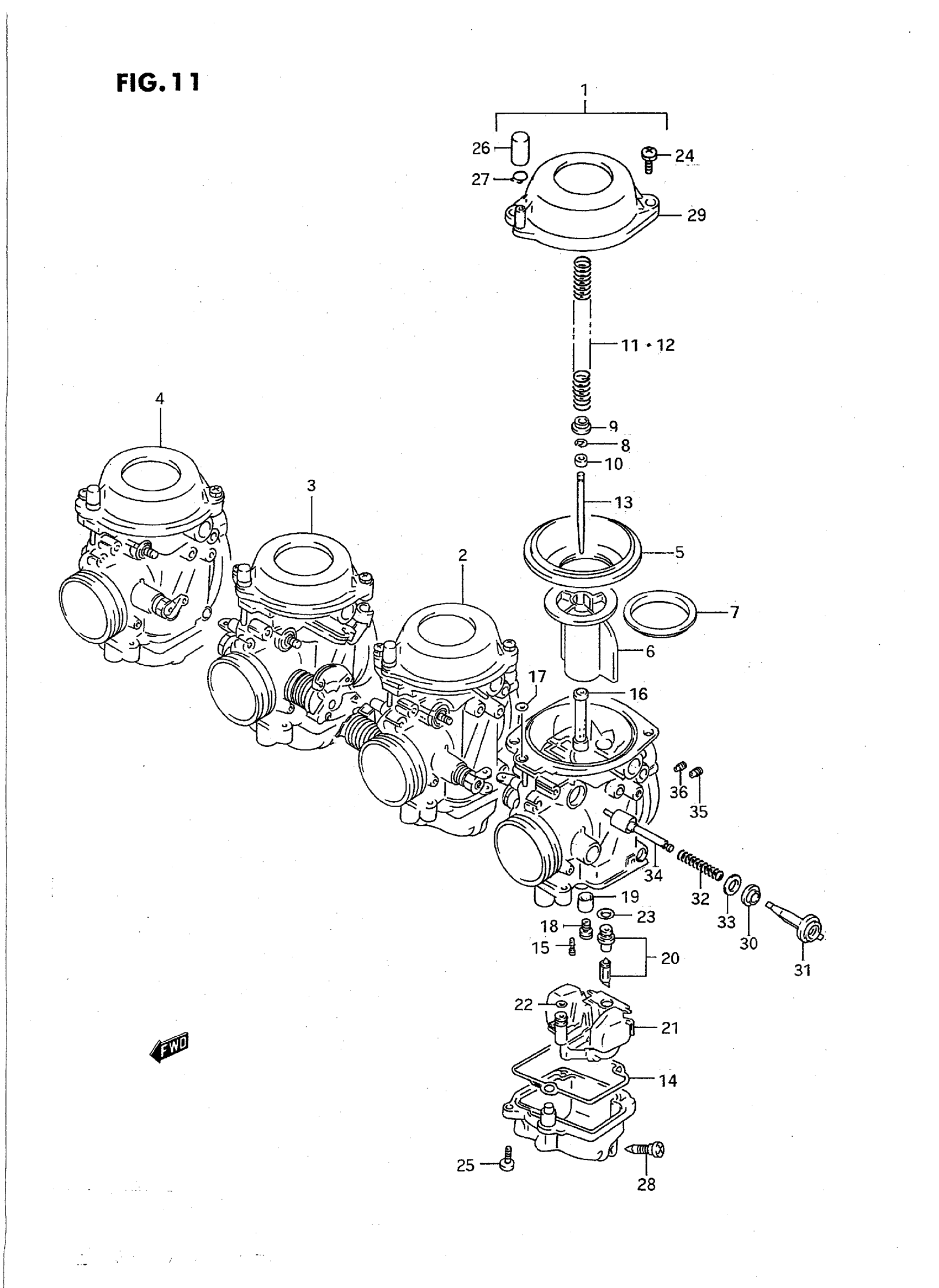

Suzuki GSX-R750WS (1995) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-17E10

Unavailable

1

CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-17E40

Unavailable

2

CARBURETOR ASSY, ML

13202-17E10

Unavailable

2

CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-17E40

Unavailable

3

CARBURETOR ASSY, MR

13203-17E10

Unavailable

3

CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-17E40

Unavailable

4

CARBURETOR ASSY, RH

13204-17E10

Unavailable

4

CARBURETOR ASSY, RH | CALIFORNIA ONLY; Includes Item(s) 5 - 36

13204-17E40

Unavailable

5

.DIAPHRAGM | MODEL P/R This part replaces 13507-07D00.

13507-07D02

$26.78

5

.DIAPHRAGM | MODEL S This part replaces 13507-07D01.

13507-07D02

$26.78

5

.DIAPHRAGM | MODEL P/R,CALIFORNIA ONLY This part replaces 13507-17C00.

13507-17C02

$29.60

5

.DIAPHRAGM | MODEL S This part replaces 13507-17C01.

13507-17C02

$29.60

6

VALVE, PISTON

13501-17D00

Unavailable

6

VALVE, PISTON | CALIFORNIA ONLY

13501-18E00

Unavailable

7

RING | EXCEPT CALIFORNIA

13504-17E00

Unavailable

8

E RING

13394-31210

$4.64

8

E RING | CALIFORNIA ONLY

13394-10010

$5.45

9

RING

13331-12D00

$6.63

9

RING | CALIFORNIA ONLY

13382-42A00

$4.48

10

RING

13387-07D00

$5.44

10

RING | CALIFORNIA ONLY

13387-47010

$7.22

11

SPRING | LH,RH This part replaces 13417-17E10.

13417-31E00

Unavailable

11

SPRING | LH,RH,CALIFORNIA ONLY This part replaces 13417-17E00.

13417-17D00

$7.18

12

SPRING | ML,MR

13417-07D10

Unavailable

12

SPRING | ML,MR,CALIFORNIA ONLY

13417-17E20

Unavailable

13

NEEDLE, JET (6ZDY18-1)

13383-17E20

Unavailable

13

NEEDLE, JET (5E88-1) | CALIFORNIA ONLY

13383-17E30

Unavailable

14

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

15

JET, PILOT (35)

09492-35008

$9.32

15

JET, PILOT (37.5) | CALIFORNIA ONLY

09492-35010

$9.32

16

JET, NEEDLE (O-8)

09494-00787

Unavailable

16

JET, NEEDLE (P-1) | CALIFORNIA ONLY

09494-00789

Unavailable

17

O RING

13278-02340

$1.91

17

O RING | CALIFORNIA ONLY

13509-17C00

$4.34

18

JET, MAIN (115)

09491-23011

$9.63

18

JET, MAIN (110) | LH,RH,CALIFORNIA ONLY

09491-22016

$10.06

18

JET, MAIN (112.5) | ML,MR,CALIFORNIA ONLY

09491-22015

$9.69

19

RING | EXCEPT CALIFORNIA

13331-07D00

$6.63

20

VALVE ASSY,NEED | EXCEPT CALIFORNIA This part replaces 13370-07D00.

13370-46E21

$73.30

21

FLOAT ASSY

13240-17E10

$67.73

21

FLOAT/NEEDLE VALVE ASSY | CALIFORNIA ONLY

13250-17E00

Unavailable

22

.O RING

13374-46710

$4.48

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

25

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

25

SCREW | CALIFORNIA ONLY This part replaces 13602-05129.

02112-05127

$1.97

26

CAP | EXCEPT CALIFORNIA

13508-17C00

$4.74

27

CLIP | EXCEPT CALIFORNIA This part replaces 13671-33600.

13671-05A40

$3.71

28

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

29

COVER, DIAPHRAGM

13502-17D00

Unavailable

29

COVER, DIAPHRAGM | CALIFORNIA ONLY

13502-17E20

Unavailable

30

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.19

31

HOLDER

13418-17C10

$13.90

32

SPRING This part replaces 13271-26D00.

13417-26D00

$6.08

32

SPRING | CALIFORNIA ONLY

13417-26D00

$6.08

33

WASHER

13432-47090

$2.28

34

PLUNGER ASSY

13411-05320

$26.80

35

JET, MAIN AIR (0.5) | EXCEPT CALIFORNIA

09493-50004

Unavailable

36

JET, PILOT AIR (1.25)

09493-25003

$16.87

36

JET, PILOT AIT (1.5) | CALIFORNIA ONLY

09493-30004

$16.87
