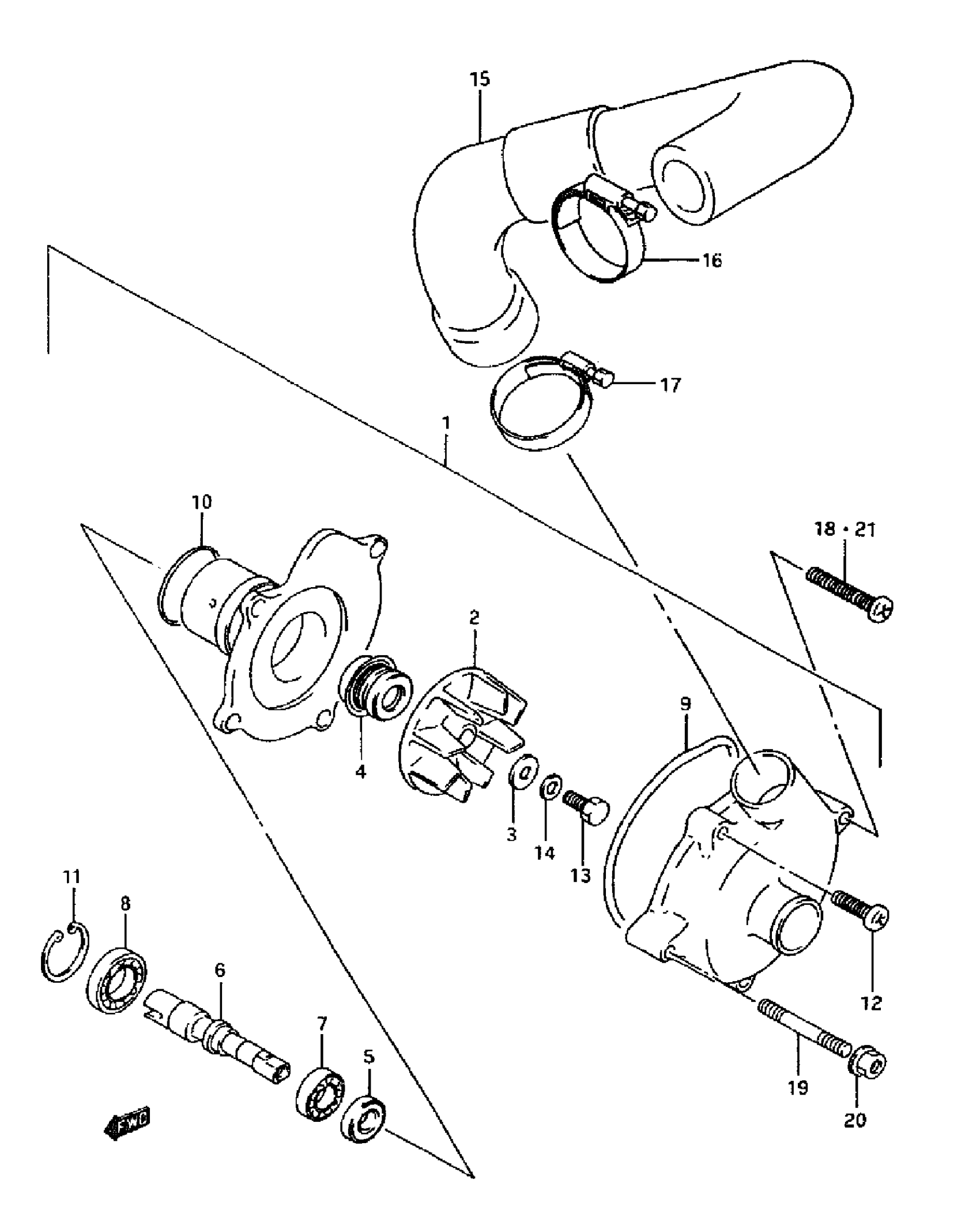

Suzuki GSX-R750W (1995) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | MODEL P/R This part replaces 17400-17E00.

17400-17E02

Unavailable

1

PUMP ASSY,WATER | MODEL S This part replaces 17400-17E01.

17400-17E02

Unavailable

2

.IMPELLER This part replaces 17491-17E00.

17491-17E01

$26.78

3

GASKET

09168-06025

$2.92

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5) This part replaces 17461-38A00.

09283-10004

$4.96

6

SHAFT, WATER PUMP | MODEL P/R

17511-17E00

Unavailable

6

SHAFT, WATER PUMP | MODEL S

17511-17E01

Unavailable

7

BEARING | MODEL P/R

08113-69010

$23.28

7

BEARING (LOX26X8) | MODEL S

09262-10014

$16.01

8

BEARING (15X28X7) | MODEL P/R

09262-15008

Unavailable

8

BEARING (12X28X8) | MODEL S

09262-12001

$18.47

9

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

10

.O-RING

17435-33400

$15.29

11

CIRCLIP This part replaces 08331-41286.

08331-41289

$2.68

12

SCREW | MODEL P This part replaces 02112-06166.

02112-0616A

$1.49

12

SCREW | MODAL R/S This part replaces 02112-06163.

02112-0616A

$1.49

13

BOLT (6XL3)

09100-06099

$2.00

14

LOCK WASHER

09164-06006

$2.61

15

HOSE, WATER PUMP OUTLET | MODEL P This part replaces 17854-17E00.

17854-17E01

Unavailable

15

HOSE WATER PUMP OUTLET | MODEL RIS

17854-17E01

Unavailable

16

CLAMP | MODEL P/R This part replaces 09402-30502.

09402-32511

$10.86

16

CLAMP | MODE I S

09402-32511

$10.86

17

CLAMP | MODEL P/R This part replaces 09402-33502.

09402-38511

$11.67

17

CLAMP | MODEL S

09402-38511

$11.67

18

SCREW | MODEL P

02112-06357

$1.78

19

BOLT | MODAL R/S.

09108-06117

Unavailable

20

NUT | MODAL R/S This part replaces 08316-10063.

08316-1006B

$2.50

21

SCREW | MODEL R/S This part replaces 02112-06353.

02112-0635B

$2.19
