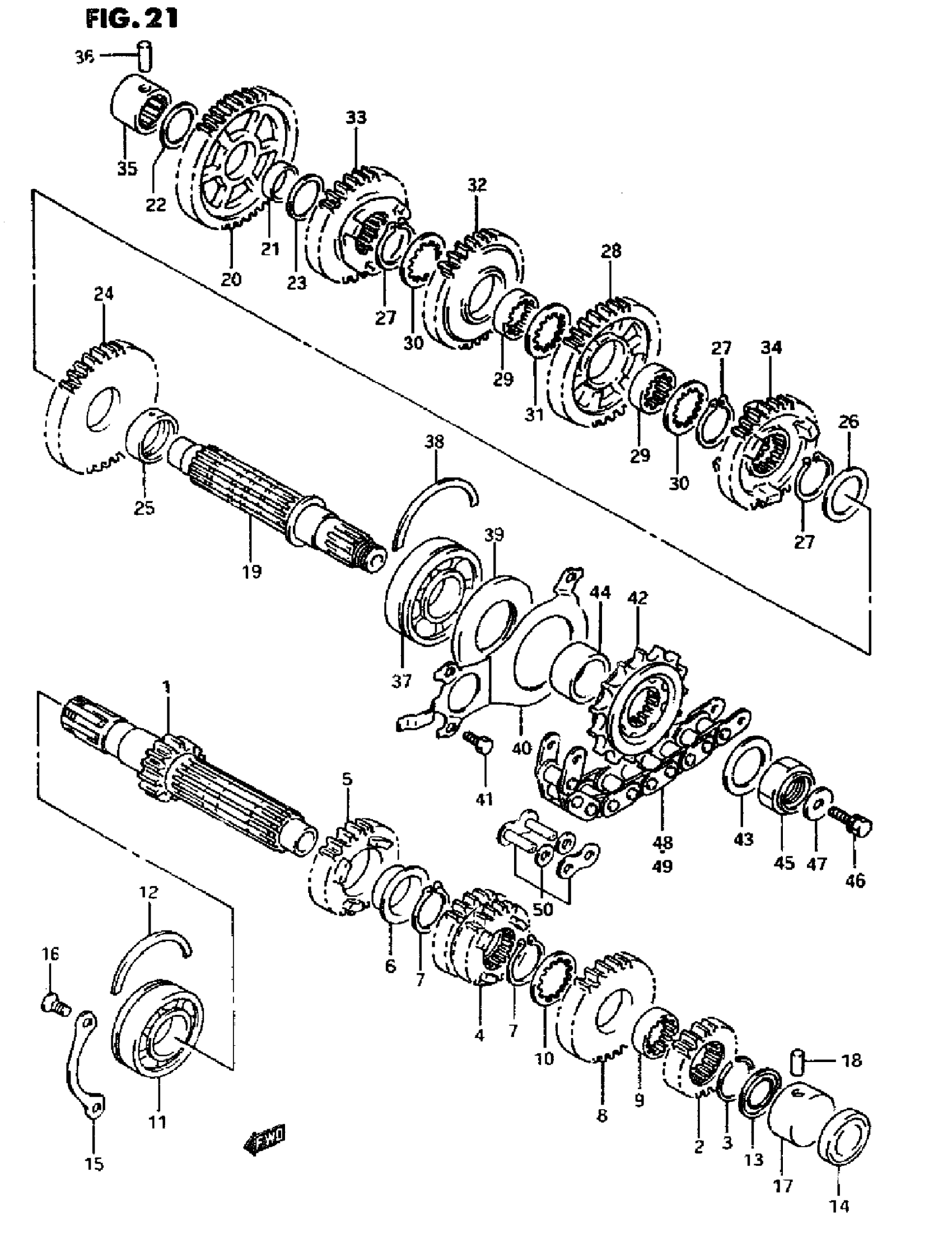

Suzuki GSX-R750W (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15) | MODEL P This part replaces 24121-17E01.

24120-17E20

Unavailable

1

COUNTERSHAFT (NT:15) | MODEL R/S

24120-17E20

Unavailable

2

GEAR, 2ND DRIVE (NT:17)

24221-17E00

Unavailable

3

CIRCLIP

09380-27004

$3.44

4

GEAR. 3/4TH DRIVE (NT:20/21)

24231-17E00

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 24251-17E01.

24251-17E11

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL R/S This part replaces 24251-17E10.

24251-17E11

Unavailable

6

BUSH

09301-28001

$21.67

7

CIRCLIP

09380-27001

$2.58

8

MAR. 6TH DRIVE (NT:25) | MODEL P This part replaces 24261-17E01.

24261-17E10

Unavailable

8

MAR. 6TH DRIVE (NT:25) | MODEL R/S

24261-17E10

Unavailable

9

BUSH, 3RD DRIVEN This part replaces 24262-17E00.

24262-17E01

$43.58

10

WASHER

09167-27001

$2.56

11

BEARING, LH | MODEL P/R This part replaces 09262-25051.

09262-25105

$54.85

11

BEARING. RH | MODEL S

09262-25105

$54.85

12

C RING This part replaces 09390-62006.

09390-62012

$6.93

13

OIL SEAL

09285-20006

$6.05

14

CAP, COUNTER SHAFT

23116-27A30

Unavailable

15

HOLDER. BEARING

24741-27A00

$11.37

16

SCREW | MODEL P/R

02122-06167

$1.49

16

SCREW | MODEL S This part replaces 02122-06163.

02122-0616A

$1.46

17

BEARING, LH

09263-20069

$56.63

18

PIN

04221-07129

$1.94

19

SHAFT, DRIVE | MODEL P This part replaces 24131-17E01.

24131-17E10

Unavailable

19

SHAFT, DRIVE | MODEL R/S

24131-17E10

Unavailable

20

GEAR, IS", DRIVEN (NT:43)

24311-17E01

Unavailable

21

BUSH

09300-22008

$16.03

22

WASHER, RH

08211-20341

$3.05

23

WASHER. LH

08211-22341

$4.18

24

GEAR,2ND DRIVEN | MODEL P This part replaces 24321-17E02-0A0.

24321-17E02

Unavailable

24

GEAR. 2ND DRIVEN (NT:35) | MODEL R/S

24321-17E10

Unavailable

25

BUSH | MODEL P/R This part replaces 09300-28003-0A0.

09300-28003

Unavailable

25

BUSH | MODEL S

09300-28003

Unavailable

26

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$5.17

27

CIRCLIP

09380-27001

$2.58

28

GEAR, 3RD DRIVEN (NT:33)

24331-17E02

Unavailable

29

BUSHING

24332-17E02

Unavailable

30

WASHER

09167-27001

$2.56

31

WASHER

09167-27002

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 24341-17E02.

24341-17E04

Unavailable

33

GEAR, 5TH DRIVEN (NT:29)

24351-17E02

Unavailable

34

GEAR, 6TH DRIVEN (NT:28) | MODEL P

24361-17E10

Unavailable

34

GEAR, 6TH DRIVEN (NT:28) | MODEL R/S

24361-17E20

Unavailable

35

BEARING. RH

09263-20040

$44.45

36

PIN (L:2O)

04221-07209

$2.50

37

BEARING, LH

09262-28025

$163.68

38

C RING

09390-70001

$10.62

39

OIL SEAL (36X70X6)

09283-36008

$19.79

40

PLATE

24751-17E00

Unavailable

41

BOLT | MODEL P This part replaces 01107-06107.

01500-06107

$2.14

41

BOLT | MODEL R/S This part replaces 01500-06123.

01500-0612A

$1.85

42

SPROCKET, ENGINE (NT:15) This part replaces 27510-17C00.

27510-17C10

$99.95

43

WASHER (25X40X1.5) This part replaces 08211-25402.

09181-25268

$3.00

44

SPACER (25X36XL7.7)

09180-25098

Unavailable

45

NUT

09159-20004

$14.56

46

BOLT | MODEL P This part replaces 01147-06168.

01570-06167

$3.25

47

WASHER | MODEL P

08212-06222

$1.95

48

CHAIN ASSY (RK50GSVZ3,108L) | MODEL P This part replaces 27600-17C20-108.

27600-24F20-108

Unavailable

49

CHAIN ASSY (RK50GSVZ3,108L) | MODEL R/S This part replaces 27600-17E20-108.

27600-24F20-108

Unavailable

50

JOINT SET, CHAIN | MODEL R/S This part replaces 27620-17E20.

27620-24F20

$24.73
