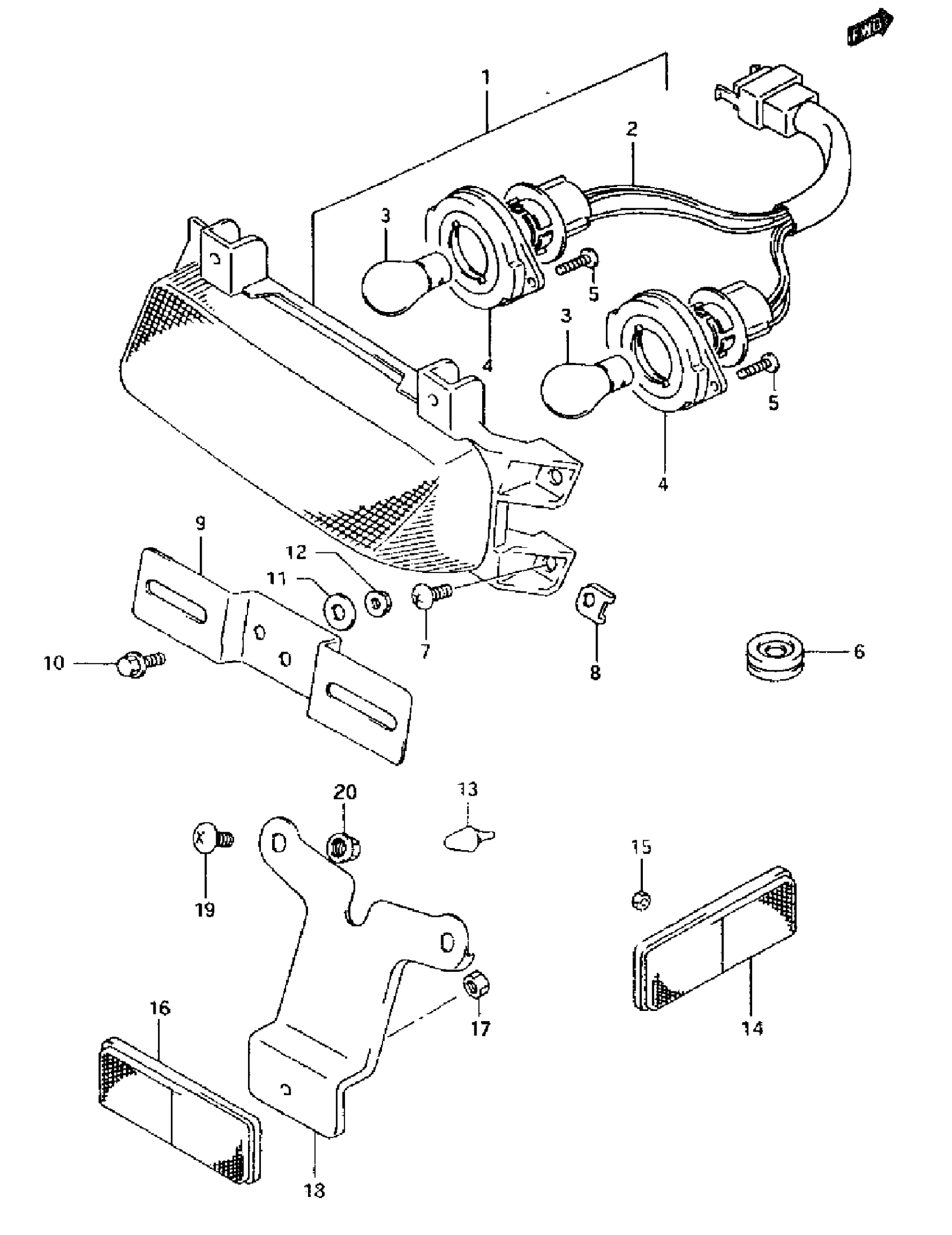

Suzuki GSX-R750W (1995) TAIL LAMP Diagram

#

Description
Price

1

LAW ASSY, REAR COMBINATION

35710-17E30

Unavailable

2

SOCKET & CORD

35718-17E00

Unavailable

3

BULB (12V, 21/5W)

09471-12128

$6.73

4

CUSHION

35765-48B21

$12.97

5

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

6

GROMMET | MODEL P/R

09308-07013

$2.89

7

.SCREW | MODEL P This part replaces 02142-05124.

02142-0512A

$1.49

7

.SCREW | MODEL R/S This part replaces 02142-05123.

02142-0512A

$1.49

8

NUT

09148-05021

$1.86

9

BRACKET, LICENSE PLATE | MODEL P This part replaces 35927-17E30.

35927-00A10

$14.20

9

BRACKET, LICENSE PLATE | MODEL R/S

35927-00A10

$14.20

10

BOLT | MODEL P This part replaces 01517-06164.

01550-0616A

$1.97

10

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

11

.WASHER (6.5X20X1.6) | MODEL P This part replaces 09160-06059.

09160-06088

$1.65

11

.WASHER (6.5X20X1.6) | MODEL R/S

09160-06088

$1.65

12

NUT | MODEL P This part replaces 08316-26066.

08316-1006B

$2.50

12

NUT | MODEL R/S This part replaces 08316-20063.

08316-2006A

$2.63

13

CUSHION

09321-06026

$2.92

14

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

15

NUT | MODEL P This part replaces 08310-11056.

08310-0005A

$1.84

15

NUT | MODEL R/S This part replaces 08310-00053.

08310-0005A

$1.84

16

REFLECTOR, REAR | MODEL P/R This part replaces 35970-00A21.

35970-00A10

Unavailable

16

REFLECTOR, REAR | MODEL S

35970-24D60

$25.98

17

NUT | MODEL P This part replaces 08310-11056.

08310-0005A

$1.84

17

NUT | MODEL R/S This part replaces 08310-00053.

08310-0005A

$1.84

18

BRACKET, REAR REFLECTOR

35974-18D10

Unavailable

19

SCREW | MODEL P This part replaces 02142-06125.

02142-0612A

$1.49

19

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

20

NUT | MODEL P This part replaces 08316-26065.

08316-2006A

$2.63

20

NUT | MODEL R/S This part replaces 08316-20063.

08316-2006A

$2.63
