1995 Suzuki GSX-R750W Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1995 Suzuki GSX-R750W, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

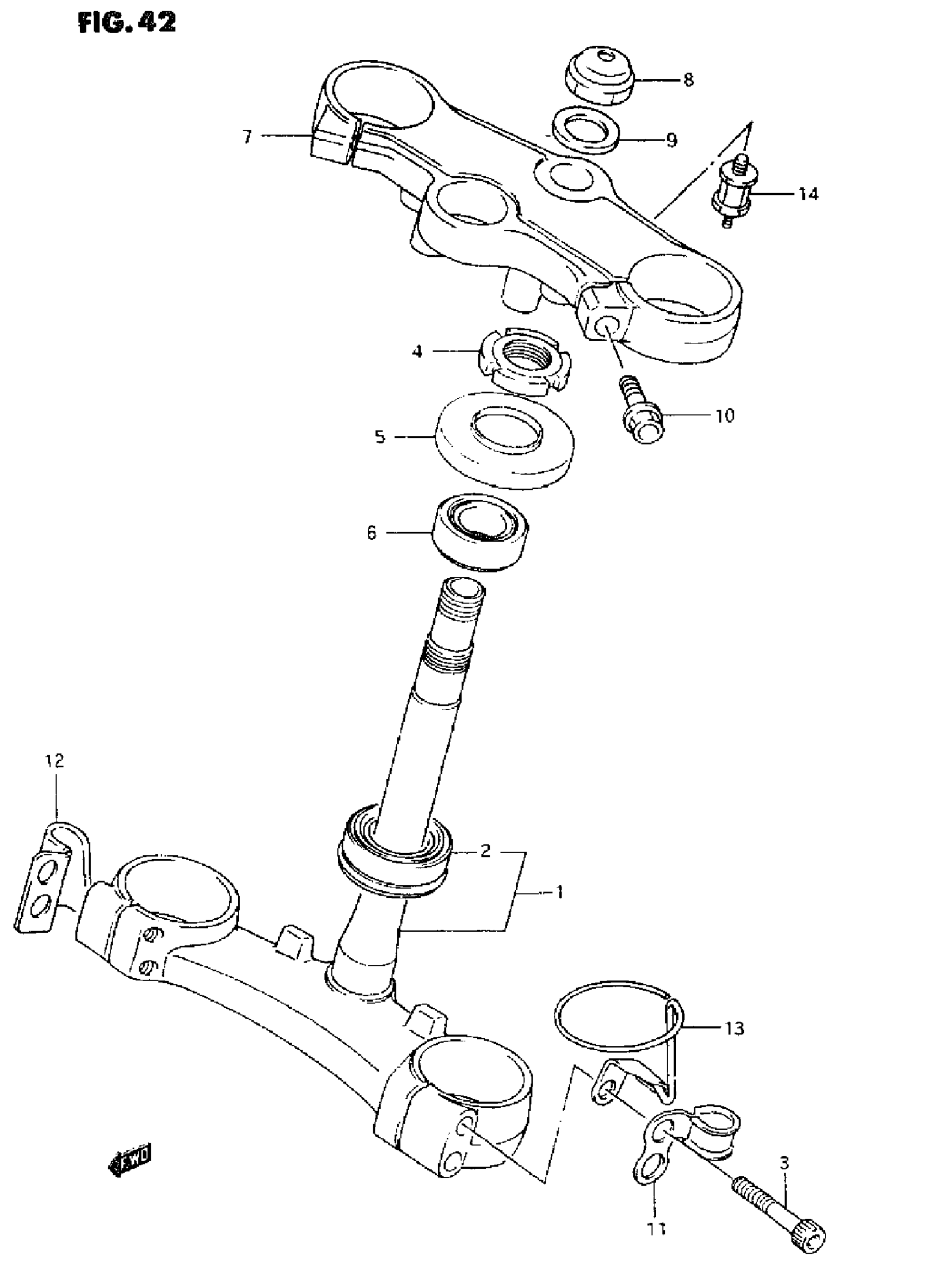

1995 Suzuki GSX-R750W Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | MODEL P

51410-17E00

1
Out of stock

1

STEM. STEERING | MODEL R/S

51410-17E20

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

1
Out of stock

3

BOLT,10X45 | MODEL P This part replaces 09106-10022.

09106-10022-XC0

4
Out of stock

3

BOLT, LOWER | NODAL R/S

01550-08407

4
Out of stock

4

NUT, STEERING STEM

51631-28000

1
Out of stock

5

DUST SEAL This part replaces 09285-34009.

09285-34013

1
Out of stock

6

BEARING

09265-25008

1
Out of stock

7

BRACKET, UPPER | MODEL P

51311-17E00

1
Out of stock

7

BRACKET, UPPER | MODEL R/S

51311-17E20

1
Out of stock

8

NUT This part replaces 51353-17C00.

51353-28A10

1
Out of stock

9

WASHER, STEM | MODEL P This part replaces 51354-17C00.

51356-24B01

1
Out of stock

9

WASHER | MODEL R/S

51356-24B01

1
Out of stock

10

BOLT, UPPER | MODEL P

01550-10407

2
Out of stock

10

BOLT I UPPER | MODEL R/S

01550-08407

2
Out of stock

11

CLAMP, METER CABLE | MODEL P

34938-17E10

1
Out of stock

12

CLAMP. CLUTCH CABLE | MODEL P

58285-17C00

1
Out of stock

13

HOLDER, STEERING DAMPER | MODEL P

51740-17D00

1
Out of stock

14

CUSHION, METER | MODEL P

17788-10D00

2
Out of stock
