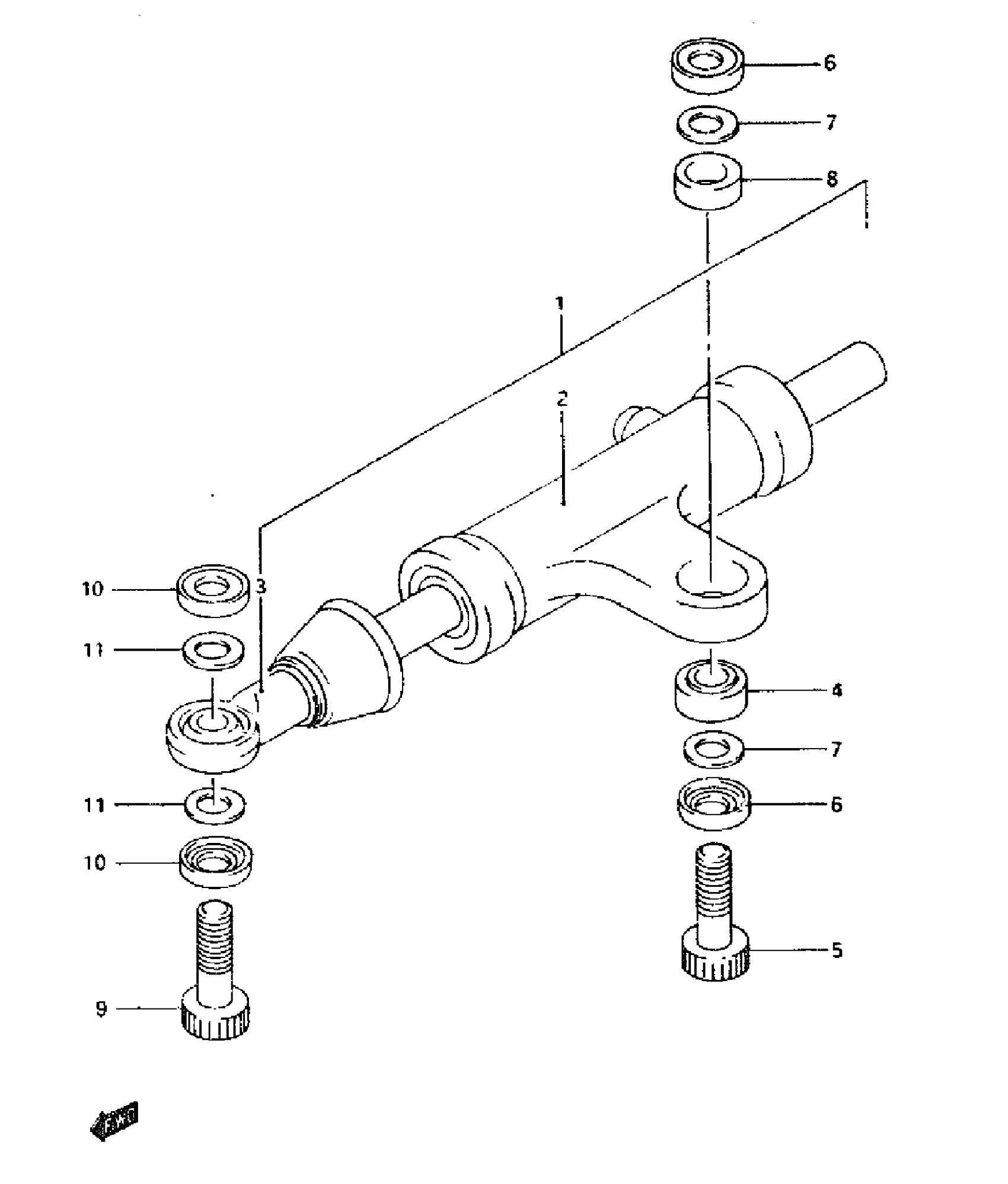

Suzuki GSX-R750W (1995) STEERING DAMPER (MODEL R/S) Diagram

#

Description

Price

1

DAMPER ASSY, , STEERING | MODEL R This part replaces 51750-17E20.

51750-46E00

Unavailable

1

DAMPER ASSY, , STEERING | MODEL S

51750-46E00

Unavailable

2

DAMPER, STEERING

51759-46E00

Unavailable

3

END LAD

51760-40C01

Unavailable

4

BEARING

09269-08003

$51.13

5

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

6

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

7

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.06

8

SPACER,8.4X14X6 This part replaces 09180-08130.

09180-08130-XC0

$3.85

9

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

10

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

11

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.06
