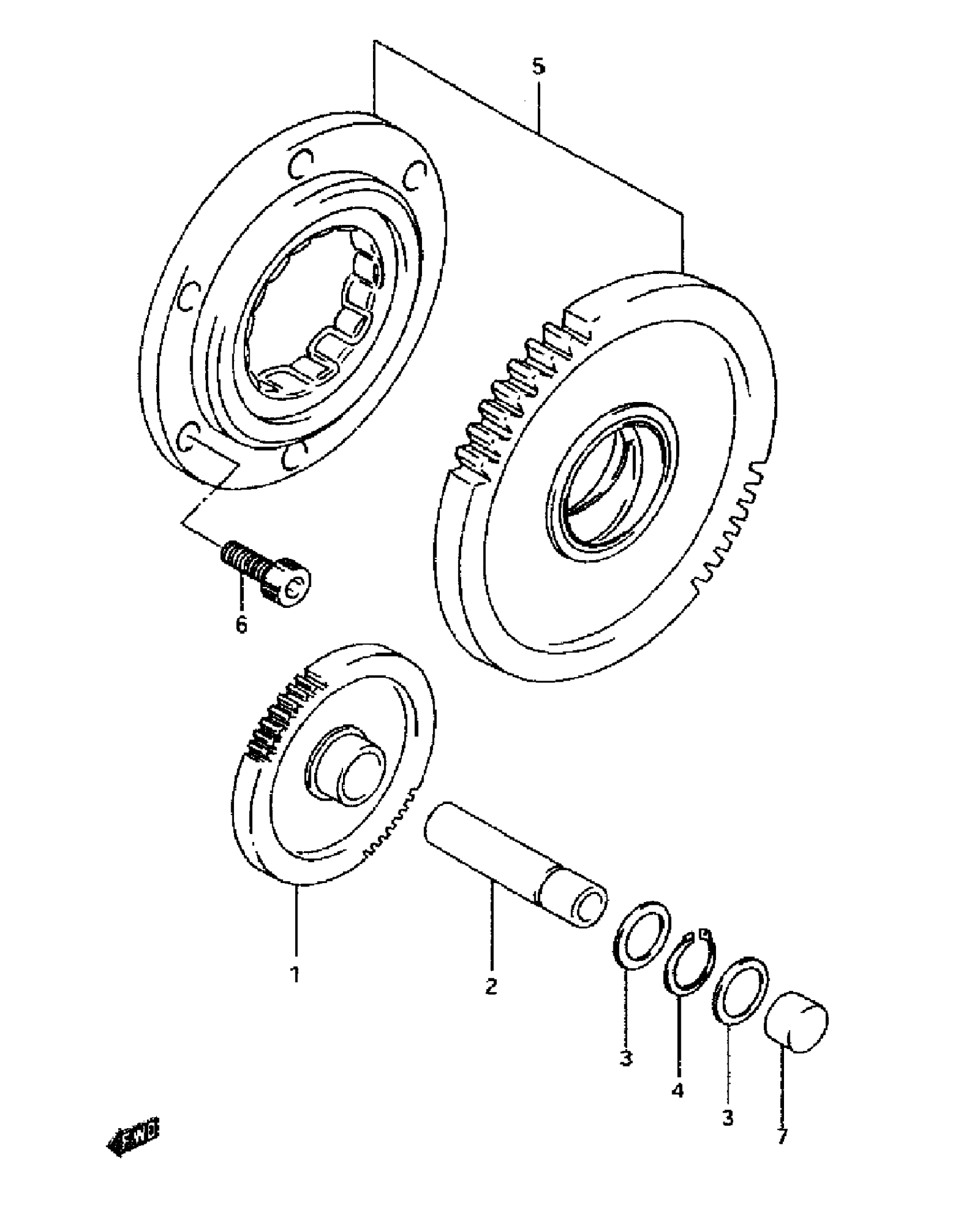

Suzuki GSX-R750W (1995) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE (NT:12/56) | MODEL P This part replaces 12611-17E00.

12611-21E00

Unavailable

1

GEAR. STARTER IDLE (NT:12/56) | MODEL R/S

12611-21E00

Unavailable

2

SHAFT, STARTER IDLE AEAR

12616-17E00

Unavailable

3

WASHER (12X18X0.5) This part replaces 08221-12185.

09181-12130

$2.06

4

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

5

CLUTCH SET, STARTER | RK"JEL P This part replaces 12600-17820.

12600-21811

Unavailable

5

CLUTCH SET, STARTER | MODEL R/S This part replaces 12600-21810.

12600-21811

Unavailable

6

BOLT | MODEL P This part replaces 07110-06166.

07130-0616B

$2.39

6

BOLT | MODEL R/S This part replaces 07130-06123.

07130-0612A

$2.50

7

PLUG, STARTER IDLE SHAFT

09241-12006

Unavailable
