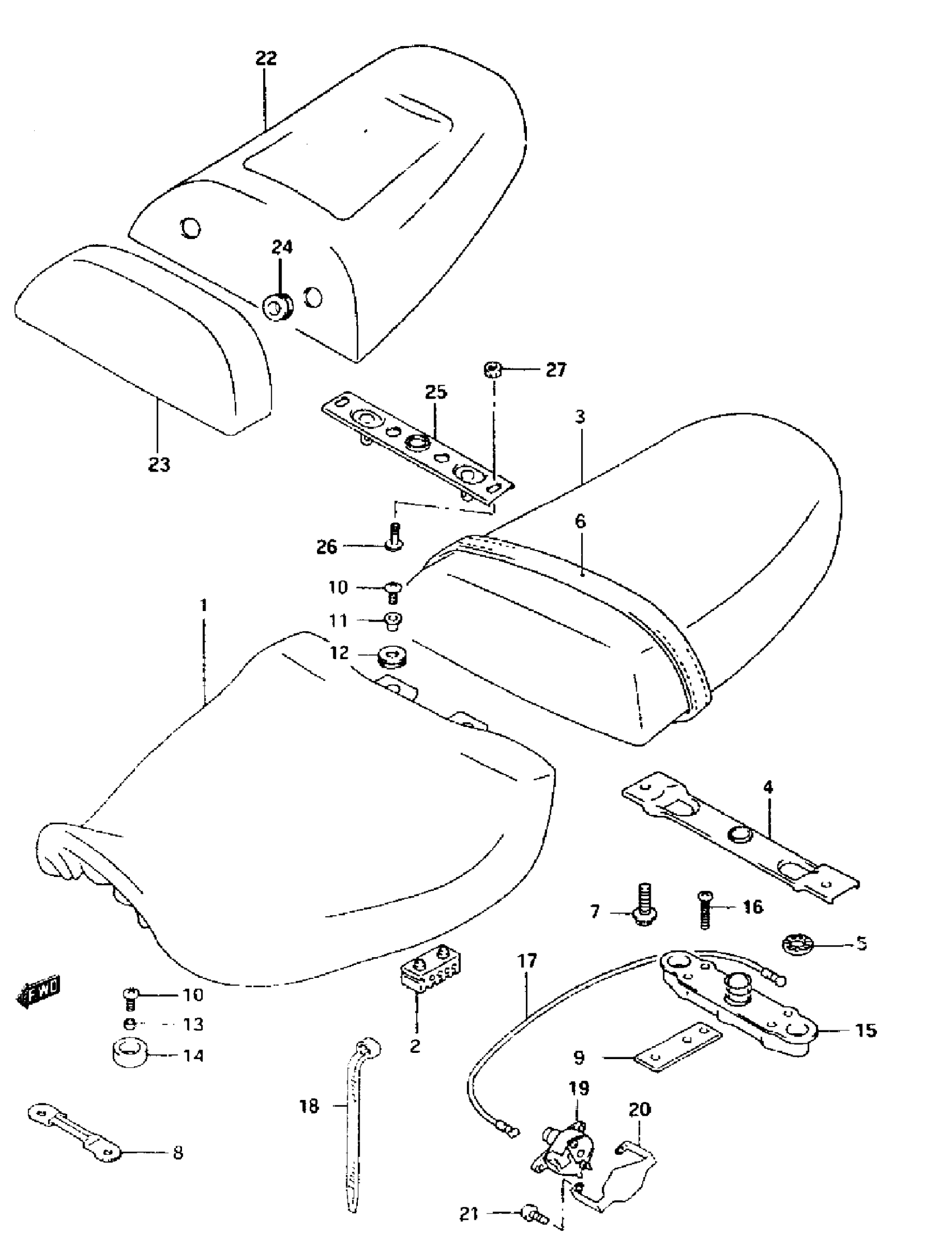

Suzuki GSX-R750W (1995) SEAT (MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL R FOR HIS This part replaces 45100-17E10-58R.

45100-17E11-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL R FOR LUJ This part replaces 45100-17E10-6WS.

45100-17E11-58R

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 45100-17E10-58R.

45100-17E11-58R

Unavailable

2

CUSHION

45149-31300

$3.56

3

NO DESCRIPTION AVAILABLE | FOR HIS This part replaces 45300-17E20-5FM.

45300-17E10-58R

Unavailable

3

SEAT ASSY, PILLION (CRAY) | FOR 1UJ

45300-17E20-6US

Unavailable

3

NO DESCRIPTION AVAILABLE | FOR D4A This part replaces 45300-17E20-P55.

45300-17E10-58R

Unavailable

4

STRIKER, SEAT LOCK

45210-22D01

Unavailable

5

CUSHION, BOSS

45213-31300

$2.81

6

BAND , SEAT GRIP (BLUE)

45180-17E00-5FM

Unavailable

6

BAND, SEAT GRIP (GRAY) | MADE I R

45180-17E00-6US

Unavailable

6

BAND, SEAT GRIP (PURPLE) | MODEL S

45180-17E00-P55

Unavailable

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

PLATE. SEAT FRONT

45119-17E00

$14.45

9

BRACKET, SEAT FRONT

45210-17E00

Unavailable

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

11

WASHER

09169-06064

$3.61

12

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

13

SPACER This part replaces 09180-06053.

09180-06309

$2.06

14

CUSHION, SEAT SUPPORT

45149-04A00

$3.59

15

BRACKET, SEAT SUPPORT REAR

45220-13601

$80.52

16

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

17

CABLE. SEAT LOCK

45280-17E00

Unavailable

18

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

19

LOCK SET,SEAT This part replaces 95700-12852.

95700-12853

$137.02

20

PLATE. SEAT LOCK GUARD

45289-45D01

Unavailable

21

SCREW

09139-06075

Unavailable

22

BOX SET, SEAT TAIL (WHITE) | OPT, FOR M18

45500-17870-0JW

Unavailable

22

BOX SET, SEAT TAIL (SILVER) | OPT, FOR 10J

45500-17870-1UJ

Unavailable

22

BOX SET, SEAT TAIL (BLACK) | OPT, FOR MA

45500-17870-33J

Unavailable

23

BACKREST, SEAT (BLACK) | OPT

46220-17E00-58R

Unavailable

24

CUSHION | OPT

09320-12031

$2.34

25

STRIKER | OPT

45210-33C00

Unavailable

26

SCREW | OPT This part replaces 02142-06123.

02142-0612A

$1.49

27

NUT | OPT This part replaces 08316-20063.

08316-2006A

$2.63
