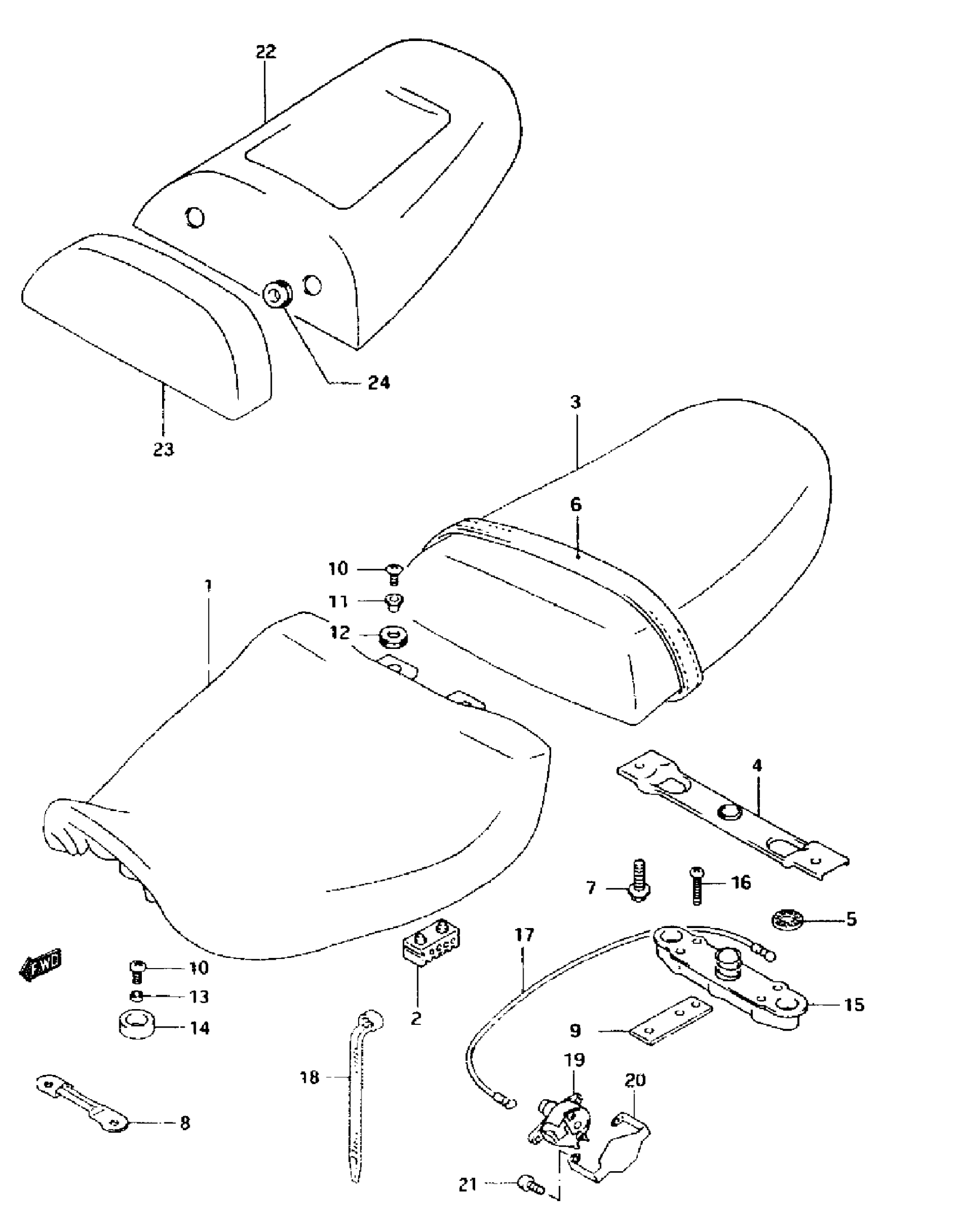

Suzuki GSX-R750W (1995) SEAT (MODEL P) Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-17E00-58R

Unavailable

2

CUSHION

45149-31300

$3.56

3

NO DESCRIPTION AVAILABLE This part replaces 45300-17E20-58R.

45300-17E10-58R

Unavailable

4

STRIKER, SEAT LACK

45210-22D01

Unavailable

5

CUSHION, BASS

45213-31300

$2.81

6

SW, SEAT GRIP (BLACK)

45180-17E10-58R

Unavailable

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

PLATE, SEAT FRONT

45119-17E00

$14.45

9

BRACKET, SEAT FRONT

45210-17E00

Unavailable

10

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

11

WASHER

09169-06064

$3.61

12

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

13

SPACER This part replaces 09180-06053.

09180-06309

$2.06

14

CUSHION, SEAT SUPPORT

45149-04A00

$3.59

15

BRACKET. SEAT SUPPORT REAR

45220-13601

$80.52

16

SCREW This part replaces 02112-06353.

02112-0635B

$2.19

17

CABLE, SEAT LACK

45280-17E00

Unavailable

18

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

19

LOCK SET,SEAT This part replaces 95700-12851.

95700-12853

$137.02

20

PLATE. SEAT LOCK GUARD This part replaces 45289-45D00.

45289-45D01

Unavailable

21

SCREW

09139-06075

Unavailable

22

BOX SET, SEAT TAIL (WHITE) | OPT, FOR M18

45500-17870-0JW

Unavailable

22

BOX SET, SEAT TAIL (BLACK) | OPT, FOR 3WC

45500-17870-33J

Unavailable

23

BACKREST, SEAT (BLACK) | OPT

46220-17E00-58R

Unavailable

24

CUSHION | OPT

09320-12031

$2.34
