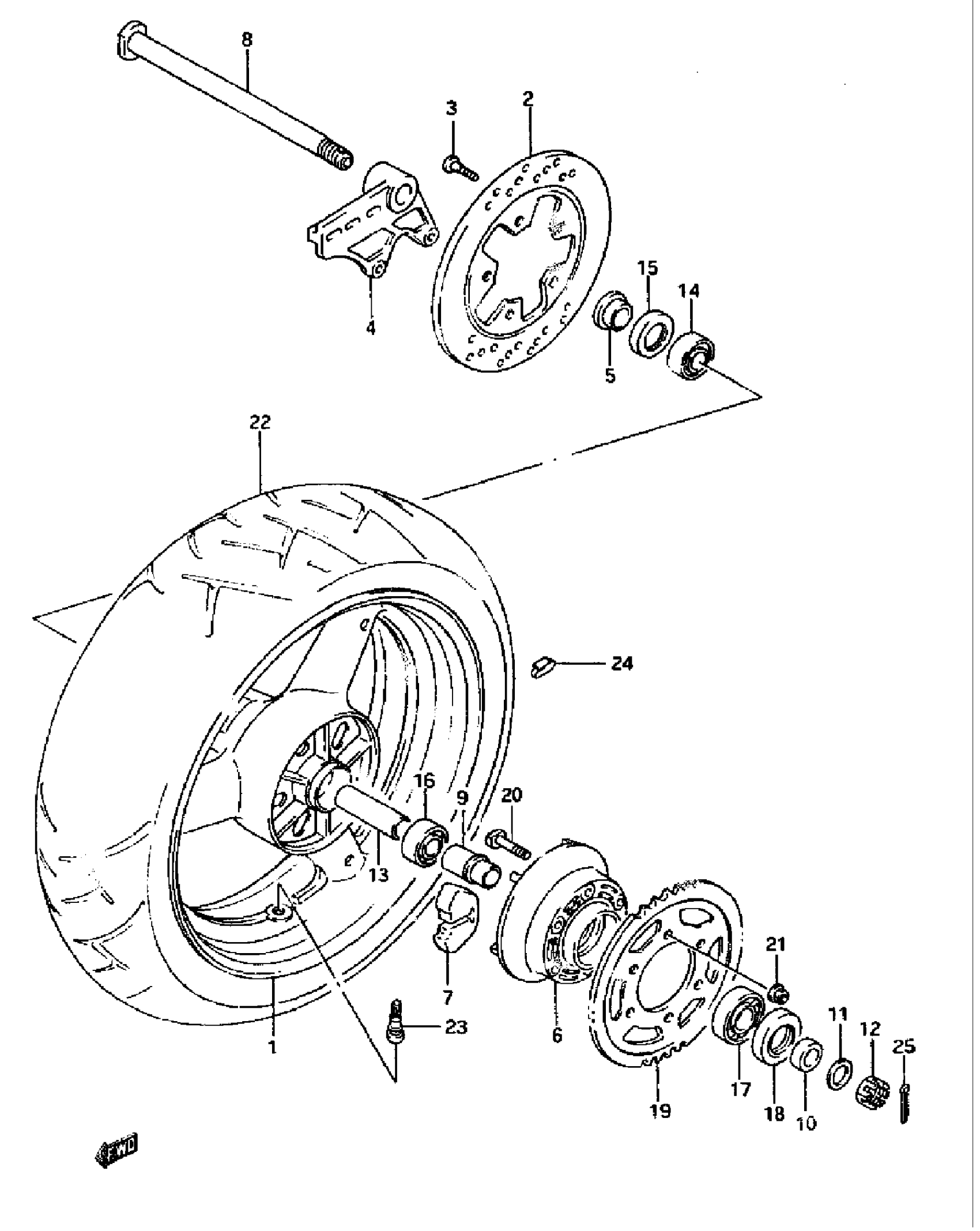

Suzuki GSX-R750W (1995) REAR WHEEL (MODEL R/S) Diagram

#

Description
Price

1

WHEEL,REAR,MT5. | WHEEL MODEL R FOR M18 This part replaces 64111-17E10-1MJ.

64111-17E11-1MJ

Unavailable

1

NO DESCRIPTION AVAILABLE | WHEEL FOR LUJ This part replaces 64111-17E10-1LS.

64111-17E11-1LS

Unavailable

1

WHEEL, REAR (17XMT5.50) | WHEEL MODEL S FOR M18 This part replaces 64111-17E10-1ZV.

64111-17E11-1ZV

Unavailable

1

WHEEL,REAR,MT4. | WHEEL FOR D4A This part replaces 64111-17E10-Y22.

64111-17E11-Y22

Unavailable

2

DISC, REAR BROKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | MODEL R This part replaces 69721-17E00.

69721-17E10

Unavailable

4

BRACKET. REAR CALIPERS | MODEL S

69721-17E10

Unavailable

5

SPACER, RH

64741-17E00

$25.52

6

DRUM, SPROCKET

64611-17E00

Unavailable

7

SHOCK A9SNRBER, DRUM

64651-17E00

$15.63

8

AXLE. 'REAR

64711-17E30

Unavailable

9

RETAINER, DRUM

64733-48B00

$27.45

10

SPACER, LH

64751-46E00

$17.82

11

WASHER This part replaces 09160-18026.

09160-18030

$2.56

12

NUT This part replaces 08314-40183.

08314-4018A

$4.64

13

SPACER, BEARING

64731-40C00

$25.75

14

BEARING, RH

09262-20114

$32.57

15

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

16

BEARING, LH

09262-20042

$23.28

17

BEARING, DRUM

09262-25073

$25.92

18

SEAL,OIL (35X62X8)

09285-35001

$10.19

19

SPROCKET, REAR (NT:42)

64511-17D01

Unavailable

20

BOLT

09119-10037

$4.32

21

NUT

08319-31107

$2.73

22

TIRE, REAR (180/55 ZRI7 0204)) DUNL0P

65110-17E50

Unavailable

23

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

24

BALANCER (10G)

55411-00A00

$1.49

24

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

24

BALANCER (30G)

55413-00A01

Unavailable

25

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
