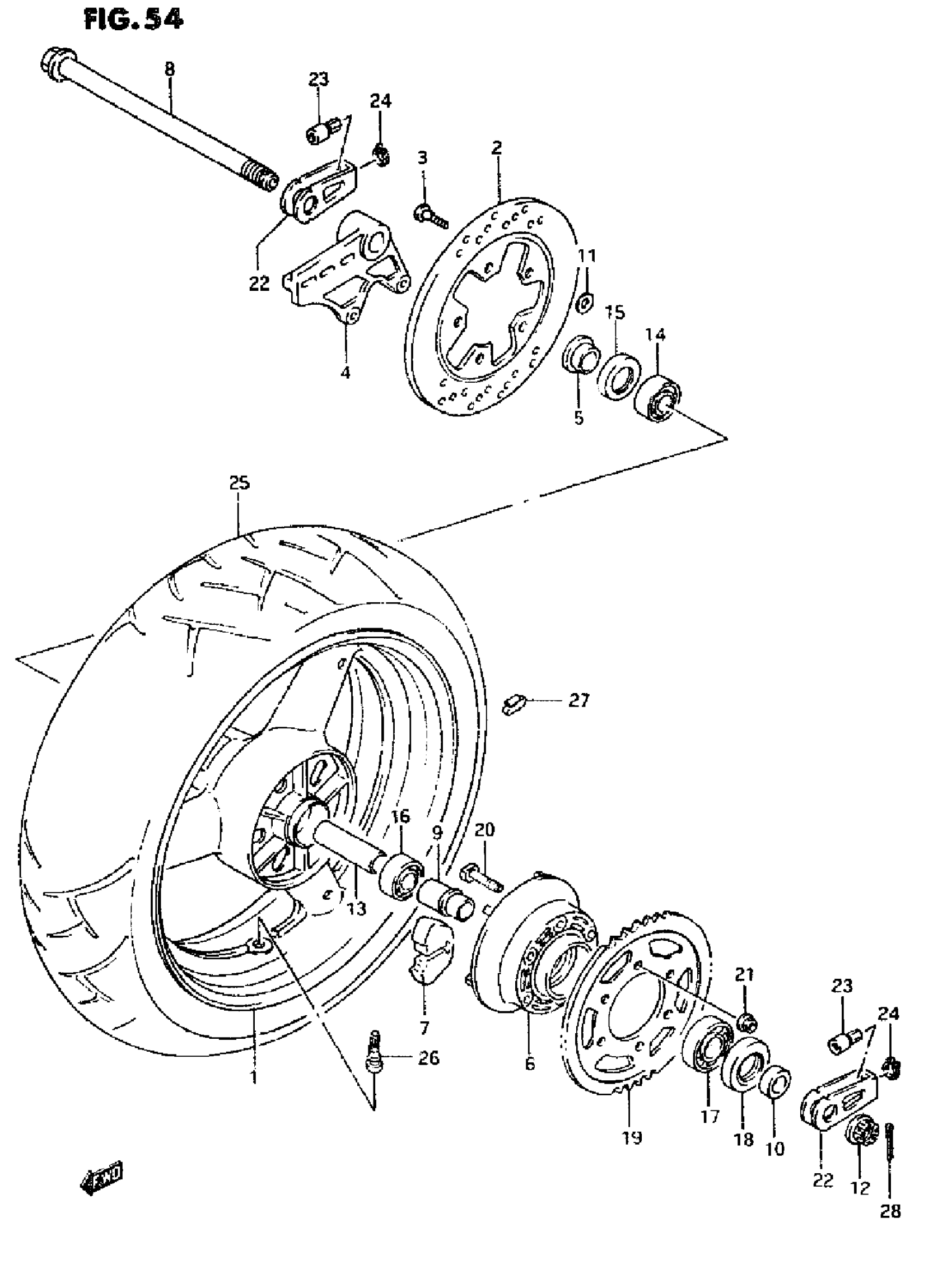

Suzuki GSX-R750W (1995) REAR WHEEL (MODEL P) Diagram

#

Description
Price

1

WHEEL, REAR (17XKF5.50) (BLUE) | WHEEL FOR MIS

64111-07D10-1MJ

Unavailable

1

WHEEL, REAR (17XMT5.50) (PURPLE) | WHEEL FOR 1TUI

64111-07D10-1TU

Unavailable

2

DISC, REAR BRAKE

69211-17C10

Unavailable

3

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS This part replaces 69721-17E00.

69721-17E10

Unavailable

5

SPACER, RH

64741-17E00

$25.52

6

DRUM, SPROCKET

64611-17E00

Unavailable

7

SHOCK ABSORBER, DRUM

64651-17E00

$15.63

8

AXLE. REAR

64711-17E10

Unavailable

9

RETAINER, DRWN

64733-48B00

$27.45

10

SPACER, LH

64751-46E00

$17.82

11

SHIM, REAR DISC

09181-10002

Unavailable

12

NUT

09141-20004

$29.20

13

SPACER, BEARING

64731-40C00

$25.75

14

BEARING, RH

09262-20114

$32.57

15

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

16

BEARING. LH

09262-20042

$23.28

17

BEARING, DRUM

09262-25073

$25.92

18

SEAL,OIL (35X62X8)

09285-35001

$10.19

19

SPROCKET, REAR (NT:42)

64511-17D01

Unavailable

20

SOLT

09119-10037

$4.32

21

NUT

08319-31107

$2.73

22

ADJUSTER, CHAIN

61411-40C00

$14.85

23

NUT, CHAIN ADJUSTER This part replaces 61415-40C00.

61415-22D00

$25.60

24

CIRCLIP This part replaces 08331-31136.

08331-3113A

$2.23

25

TIRE, REAR (170/60 ZR17) DUNLOP | TIRE,

65110-18D00

Unavailable

26

VALVE ASSY

43130-24A00

$8.85

27

BALANCER (10G)

55411-00A00

$1.49

27

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

27

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

28

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
