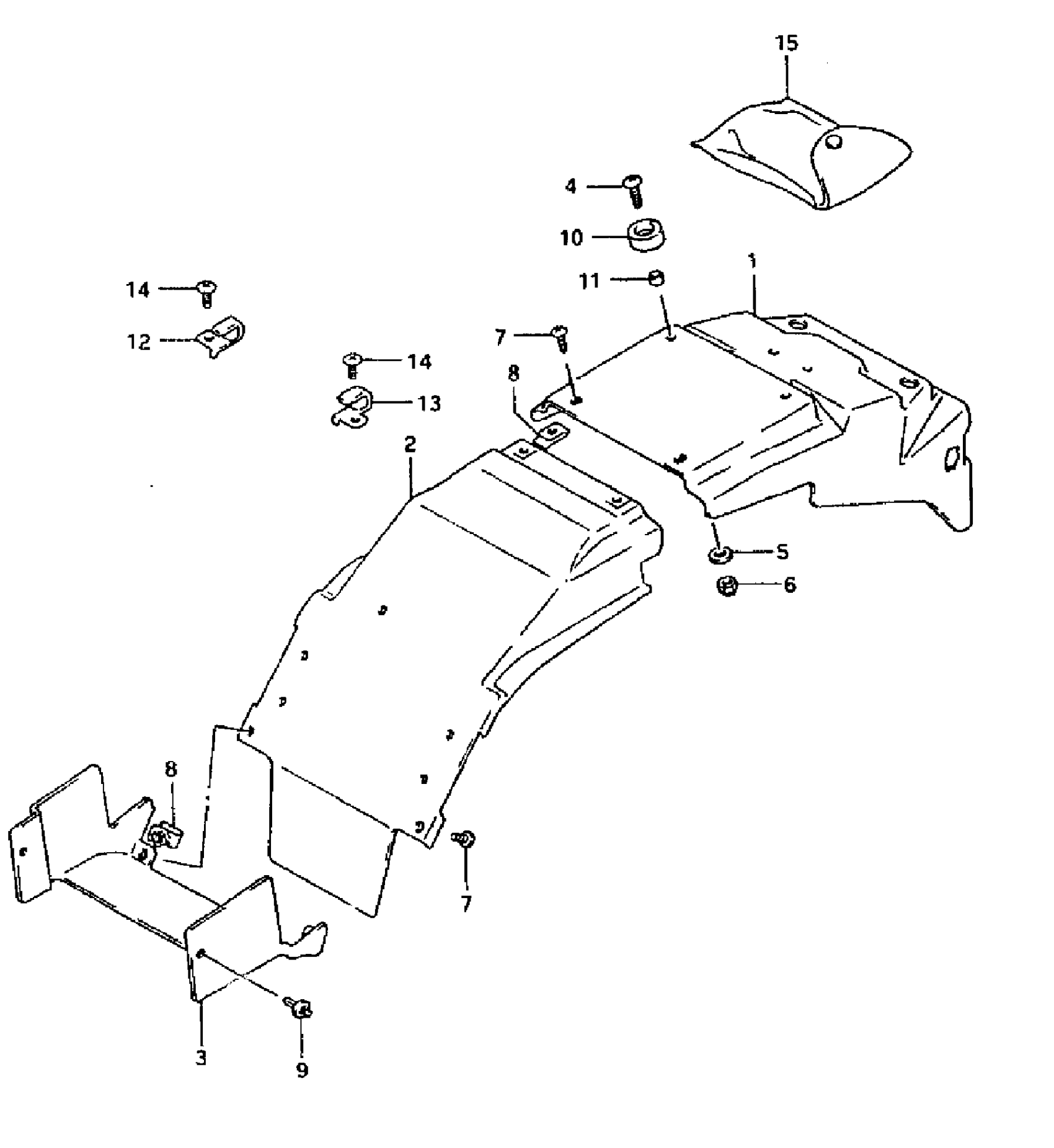

Suzuki GSX-R750W (1995) REAR FENDER (MODEL P) Diagram

#

Description
Price

1

BODY, REAR FENDER UPPER

63112-18D00

Unavailable

2

BODY, REAR FENDER FRONT

63114-17E00

Unavailable

3

BODY, REAR FENDER FRONT

63113-17E00

Unavailable

4

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

5

WASHER This part replaces 09160-06006.

09160-06084

$1.78

6

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

7

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

8

NUT COWL This part replaces 94484-32B00.

94484-24F00

$4.03

9

CLIP This part replaces 09409-06307.

09409-06322-5PK

$3.10

10

CUSHION. PILLION SEAT

45149-04A00

$3.59

11

SPACER This part replaces 09180-06053.

09180-06309

$2.06

12

HOLDER, HELMET RH

95721-17E00

Unavailable

13

HOLDER, HELMET LH

95731-17E00

Unavailable

14

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

15

TOOL ASSY This part replaces 09800-20049.

09800-21065

Unavailable
