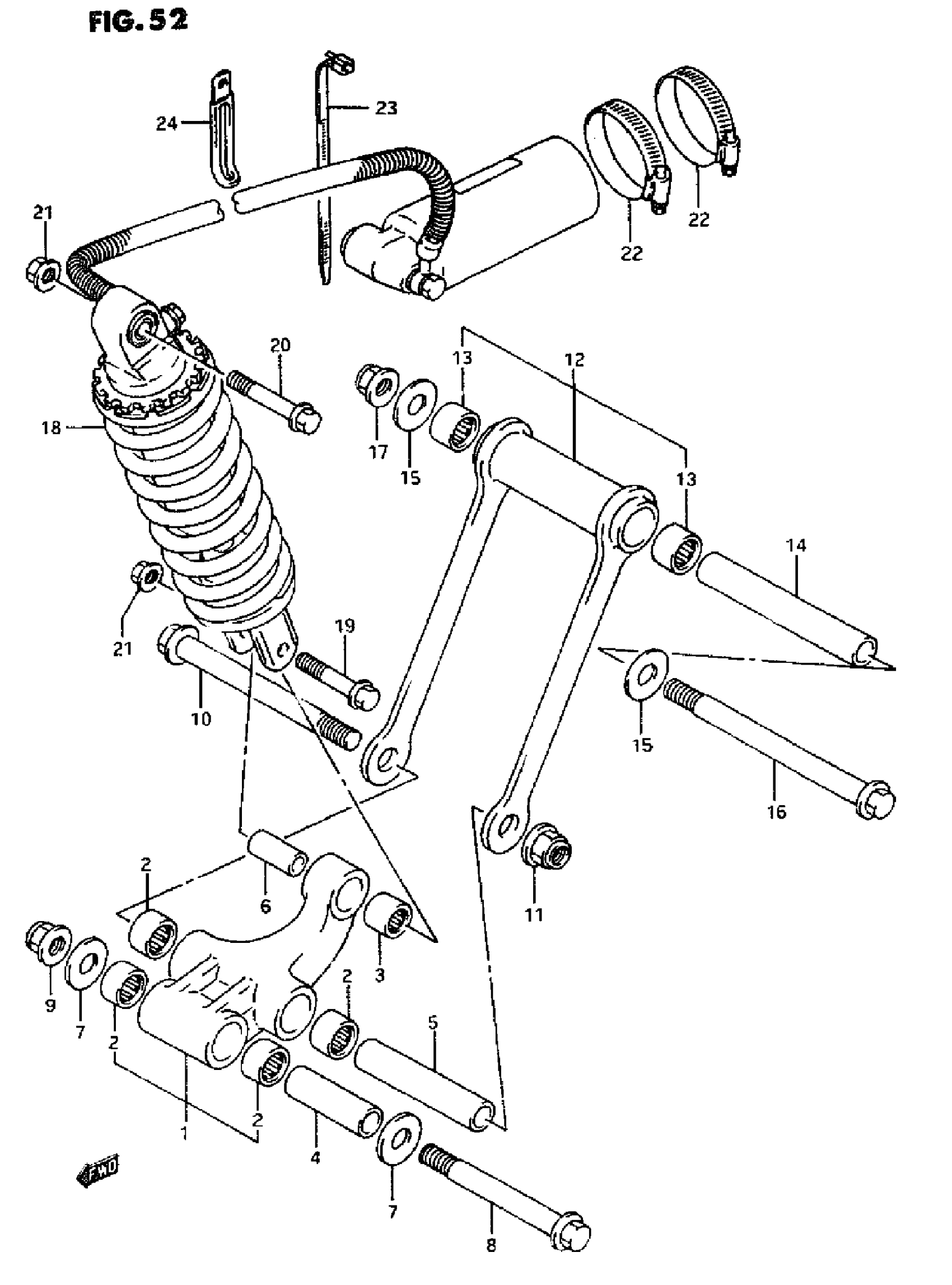

Suzuki GSX-R750W (1995) REAR CUSHION LEVER (MODEL P) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-40830

Unavailable

2

BEARING

09263-20071

$25.92

3

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

4

SPACER, FRONT

62317-17C00

Unavailable

5

SPACER, CENTER

62317-40C10

Unavailable

6

SPACER, REAR

62684-40A10

$12.15

7

WASHER. FRONT

08211-14323

$3.85

8

SOLT, FRONT

62621-17C00

$23.07

9

NUT This part replaces 08319-31148.

08319-3114A

$9.66

10

BOLT, CENTER

62658-40C10

Unavailable

11

NUT This part replaces 08319-31148.

08319-3114A

$9.66

12

ROD SET, REAR CUSHION LEVER

62600-17840

Unavailable

13

BEARING

09263-20071

$25.92

14

SPACER, ROD

09180-14022

Unavailable

15

WASHER, ROD

08211-14321

$3.85

16

BOLT, ROD (14XL6L)

09103-14019

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$9.66

18

NO DESCRIPTION AVAILABLE This part replaces 62100-18E00.

62100-17E00

Unavailable

19

SOLT, LOWER

09103-10027

$4.60

20

BOLT, UPPER

09103-10032

Unavailable

21

NUT

08319-31107

$2.73

22

.CLAMP This part replaces 09402-57501.

09402-57511

$13.30

23

CLAMP

09407-18402

$2.19

24

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
