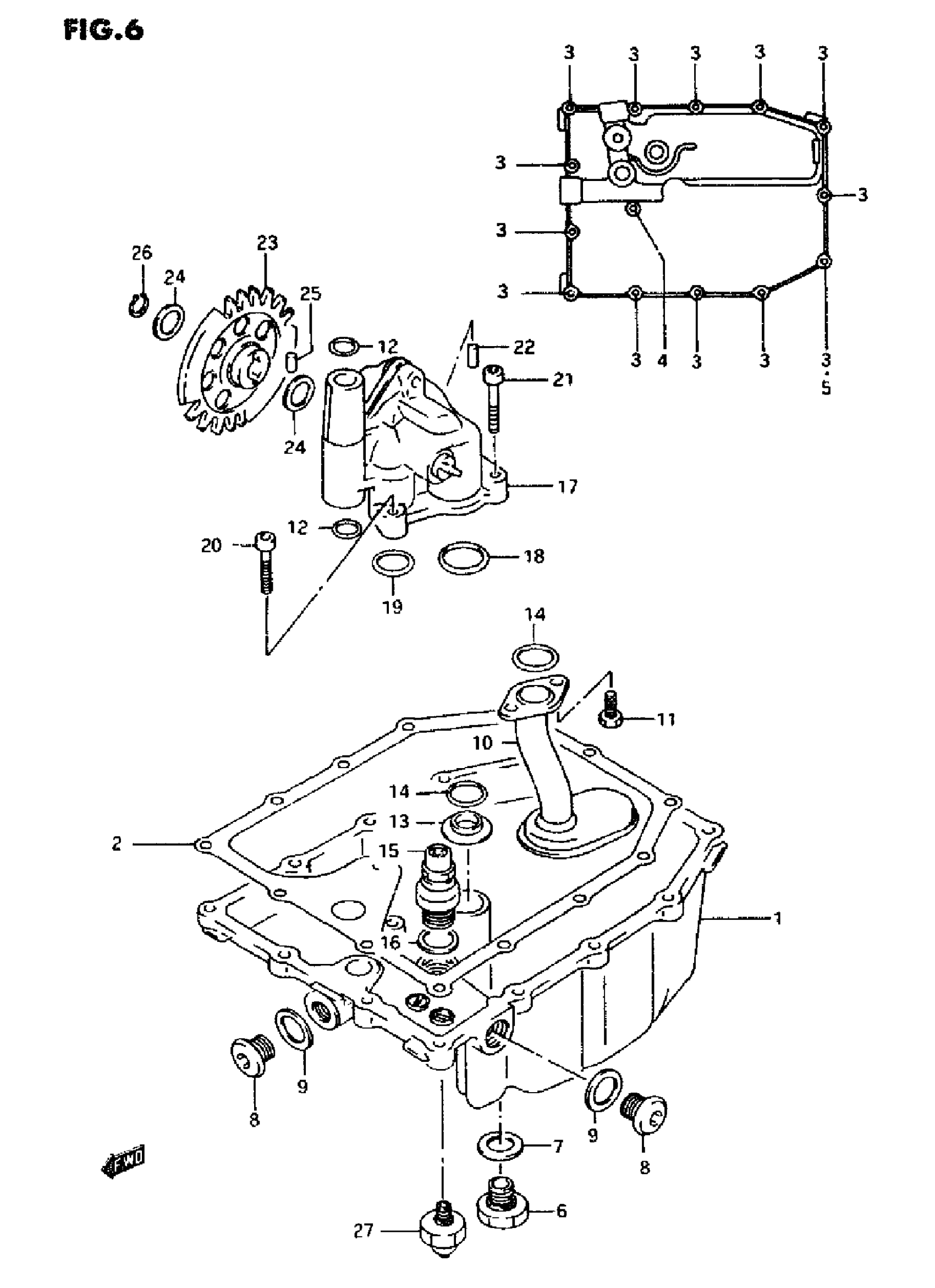

Suzuki GSX-R750W (1995) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-17E00

Unavailable

2

GASKET, OIL PAN | MODEL P/R This part replaces 11489-17E00.

11489-17E01

Unavailable

2

GASKET, OIL PAN | MODEL S

11489-17E01

Unavailable

3

BOLT | MODEL P

01547-06257

$2.03

3

BOLT, FINAL GEAR CASE COVER | MODEL R/S. This part replaces 01547-06253.

01547-0625B

$2.45

4

BOLT | MODEL P

01547-06307

$2.03

4

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

5

GASKET

09168-06024

$2.20

6

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

7

GASKET

09168-14002

$2.26

8

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

9

GASKET

09168-16002

$1.91

10

STRAINER. ENGINE OIL

16520-17E00

Unavailable

11

BOLT (6X16)

09128-06039

Unavailable

12

0 RING, OIL. GALLERY

09280-12012

$4.64

13

GASKET, OUTLET

16529-27A01

$2.15

14

0 RING

09280-18009

$5.83

15

VALVE ASSY, OIL RELIEF This part replaces 16440-17C00.

16440-17C10

$67.28

16

GASKET

09168-16002

$1.91

17

PUMP ASSY, ENGINE ALL

16400-17E00

Unavailable

18

0 RING

09280-26005

$2.30

19

0 RING

09280-18009

$5.83

20

BOLT | MODEL P This part replaces 07110-06307.

07130-06307

$4.32

20

BOLT | MODEL R/S This part replaces 07130-06303.

07130-0630B

$3.37

21

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 07110-06357.

07130-06357

Unavailable

21

BOLT | MODEL R/S This part replaces 07130-06353.

07130-0635B

$3.37

22

PIN

04211-09129

$1.65

23

GEAR. OIL PUMP DRIVEN

16332-19C00

$73.80

24

WASHER

08221-12205

$2.30

25

PIN

09261-05006

$1.49

26

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

27

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$25.13
