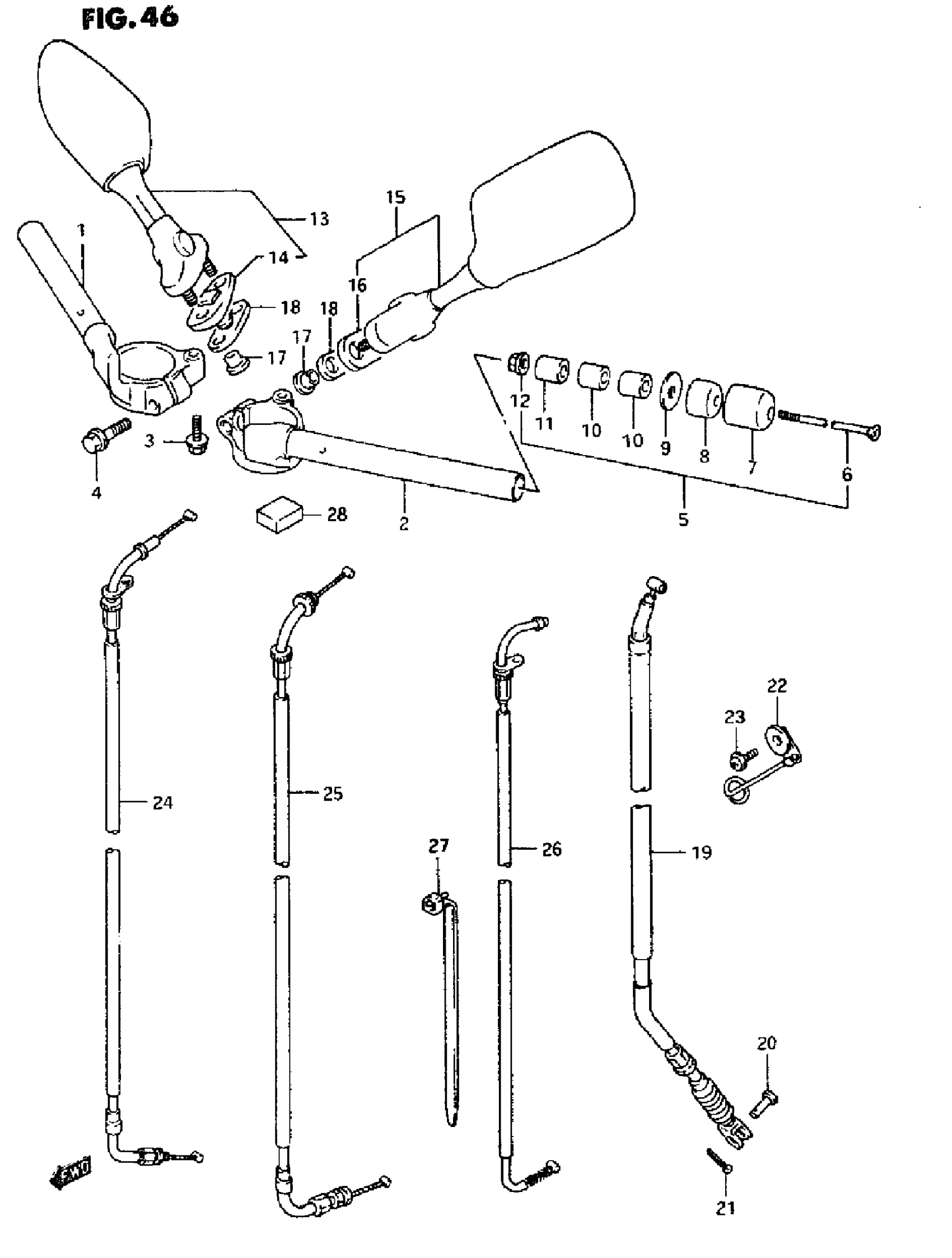

Suzuki GSX-R750W (1995) HANDLEBAR (MODEL P) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-17E00.

56111-17E02

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 56151-17E00.

56151-17E03

Unavailable

3

BOLT This part replaces 01517-06207.

01550-06207

$2.30

4

BOLT This part replaces 01127-08308.

01550-08307

$3.54

5

BALANCER SET, HANDLEBAR This part replaces 56200-45830.

56200-45821

Unavailable

6

SCREW

09127-06018

$3.38

7

CAP This part replaces 56274-05350.

56274-31300

Unavailable

8

BALANCER

56271-49420

Unavailable

9

SPACER This part replaces 56275-34400.

56275-34401

$4.02

10

BALANCER

56271-43500

Unavailable

11

EXPANDER

56272-44500

$4.42

12

NUT

09159-06024

$2.11

13

MIRROR ASSY, REAR VIEW RH (BLACK) | 56528-18000 CUSHION, MIRROR RH 1

56500-18D01-84N

Unavailable

14

CUSHION, MIRROR LH

56258-18000

Unavailable

15

MIRROR ASSY, REAR VIEW LH (BLACK) | 56628-18000 CUSHION, MIRROR LH 1

56600-18D01-84N

Unavailable

16

CUSHION, MIRROR LH

56628-18D00

Unavailable

17

NUT, MIRROR

56619-12C00

$7.78

18

CUSHION, MIRROR

94576-22D00

$5.44

19

CABLE ASSY, CLUTCH

58200-17E00

Unavailable

20

PIN

09200-06011

Unavailable

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

22

GUIDE, CLUTCH CABLE

44480-12C01

Unavailable

23

SCREW This part replaces 02112-16168.

02142-06167

$1.49

24

CABLE ASSY,THRO This part replaces 58300-17E00.

58300-17E01

Unavailable

24

CABLE ASSY. THROTTLE NO.1 | CALIFORNIA ONLY

58300-17E20

Unavailable

25

CABLE ASSY,THRO This part replaces 58300-17E10.

58300-17E11

Unavailable

25

CABLE ASSY, THROTTLE NO.2 | CALIFORNIA ONLY

58300-17E30

Unavailable

26

CABLE, STARTER

58410-17E00

Unavailable

27

CLAMP

09407-25401

$4.66

28

CUSHION This part replaces 47165-48B10.

47165-48B11

Unavailable
