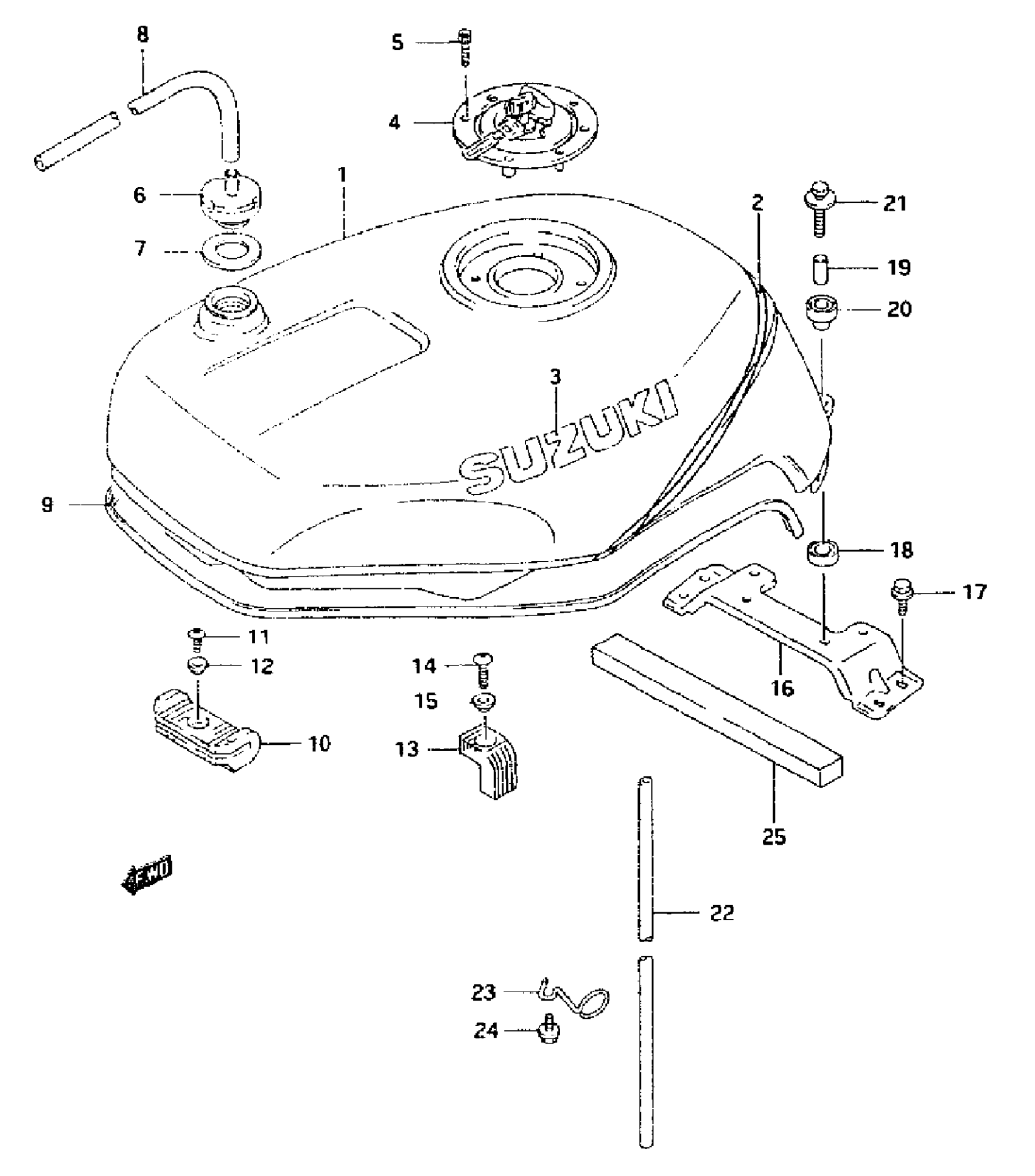

Suzuki GSX-R750W (1995) FUEL TANK (MODEL S) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-17EN1-M18

Unavailable

1

TAW ASSY, FUEL | CALIFORNIA ONLY

44100-17ER1-M18

Unavailable

1

TAW ASSY, FUEL

44100-17EN1-D4A

Unavailable

1

TAW ASSY, FUEL | CALIFORNIA ONLY

44100-17ER1-D4A

Unavailable

2

JAPE, FUEL TANK | FOR M18

68115-17E20-D4G

Unavailable

2

TAPE, FUEL TANK | FOR D4A

68115-17E20-D6F

Unavailable

3

EMBLEM (WHITE) | FOR M18 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

3

EMBLEM, FUEL TA | FOR D4A This part replaces 68111-12C00-20H.

68111-12C30-20H

Unavailable

4

CAP SET, FUEL TANK

44201-01852

Unavailable

5

BOLT

09106-05017

$2.83

6

PLUG, BREATHER

44240-06B10

$38.33

6

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

7

GASKET

09168-12012

$1.83

7

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

9

MOLDING This part replaces 68241-17E00.

68241-04X50-00B

$27.30

10

CUSHI0N, FRONT

44511-41C00

Unavailable

11

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

12

WASHER

09169-05012

$2.38

13

CUSHION, SIDE

44545-33C01

Unavailable

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

15

WASHER This part replaces 09169-06045.

09169-06055

$2.27

16

BRACKET, FUEL TANK REAR

44530-17E11

Unavailable

17

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

18

CUSHION, REAR LOWER

09320-14017

$2.35

19

SPACER This part replaces 09180-06072.

09180-06271

$2.35

20

CUSHION, REAR UPPER

09320-10038

$2.61

21

BOLT This part replaces 01500-06353.

01500-0635A

$2.19

22

HOSE(7X10.2X200 This part replaces 09352-70103-00B.

09352-70104-00B

$15.32

23

GUIDE, DRAIN

44481-17E01

Unavailable

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

CUSHION, AIR SEAL

13841-17E00

Unavailable
