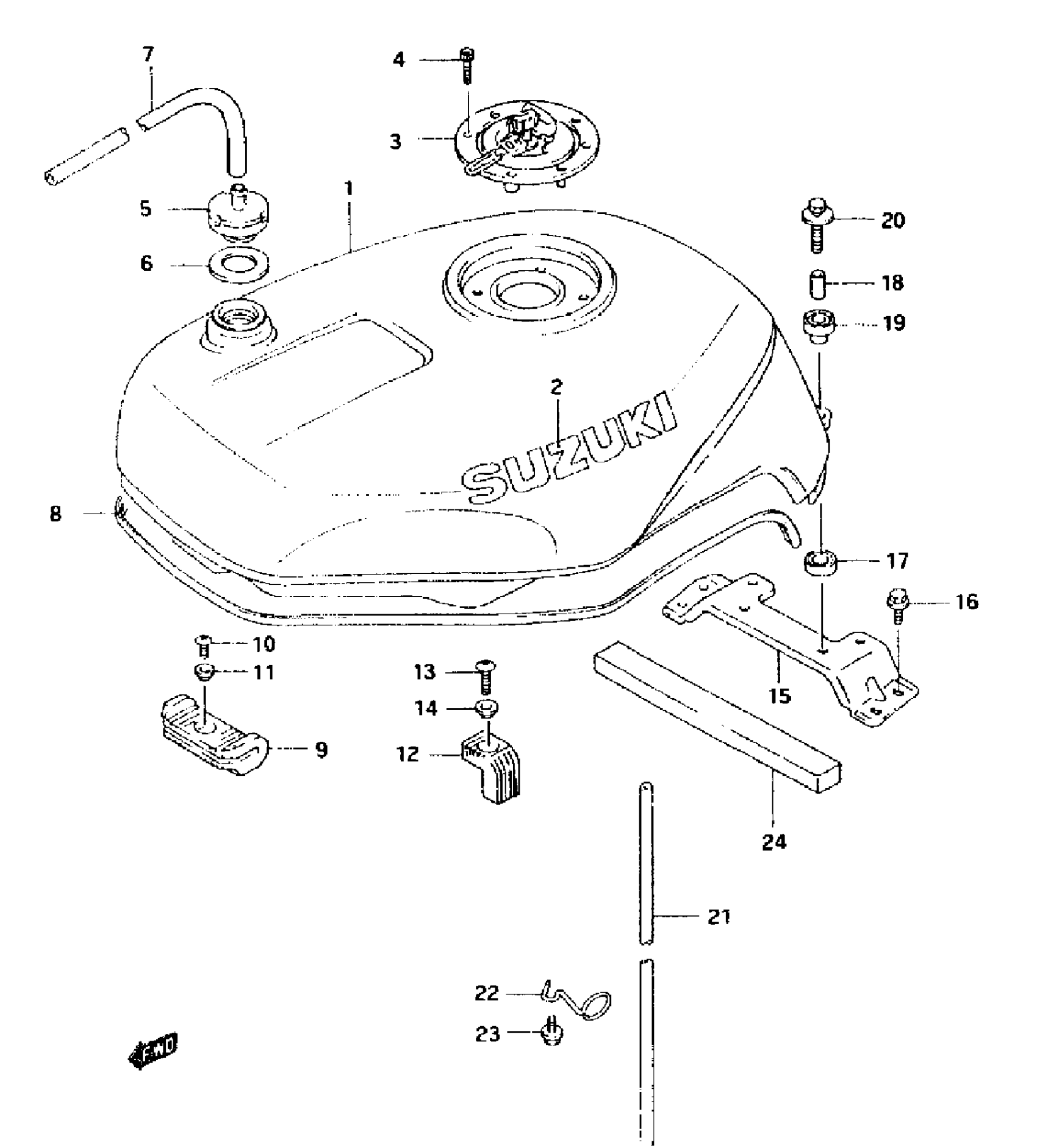

Suzuki GSX-R750W (1995) FUEL TANK (MODEL R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | FOR M18 This part replaces 44100-17EG0-1LE.

44100-17ES0-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY FOR MIS This part replaces 44100-17EK0-1LE.

44100-17EK1-1LE

Unavailable

1

NO DESCRIPTION AVAILABLE | FOR 1UJ This part replaces 44100-17EG0-1UJ.

44100-17ES0-1UJ

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY FOR 1UJ This part replaces 44100-17EK0-1UJ.

44100-17EK1-1UJ

Unavailable

2

EMBLEM (WHITE) | FOR 1LF This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

2

EMBLEM (PURPLE) | FOR 1UJ

68111-12C00-1SZ

Unavailable

3

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

4

BOLT

09106-05017

$2.83

5

PLUG, BREATHER

44240-06B10

$38.33

5

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

6

GASKET

09168-12012

$1.83

6

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

7

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

8

MOLDING This part replaces 68241-17E00.

68241-04X50-00B

$27.30

9

CUSHION, FRONT

44511-41C00

Unavailable

10

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

11

WASHER

09169-05012

$2.38

12

CUSHION, SIDE

44545-33C01

Unavailable

13

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

14

WASHER This part replaces 09169-06045.

09169-06055

$2.27

15

BRACKET, FUEL TANK REAR

44530-17E11

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

CUSHION. REAR LOWER

09320-14017

$2.35

18

SPACER This part replaces 09180-06072.

09180-06271

$2.35

19

CUSHION. REAR UPPER

09320-10038

$2.61

20

BOLT This part replaces 01500-06353.

01500-0635A

$2.19

21

HOSE(7X10.2X200 This part replaces 09352-70103-00A.

09352-70104-00B

$15.32

22

GUIDE, DRAIN

44481-17E01

Unavailable

23

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

24

CUSHION. AIR SEAL

13841-17E00

Unavailable
