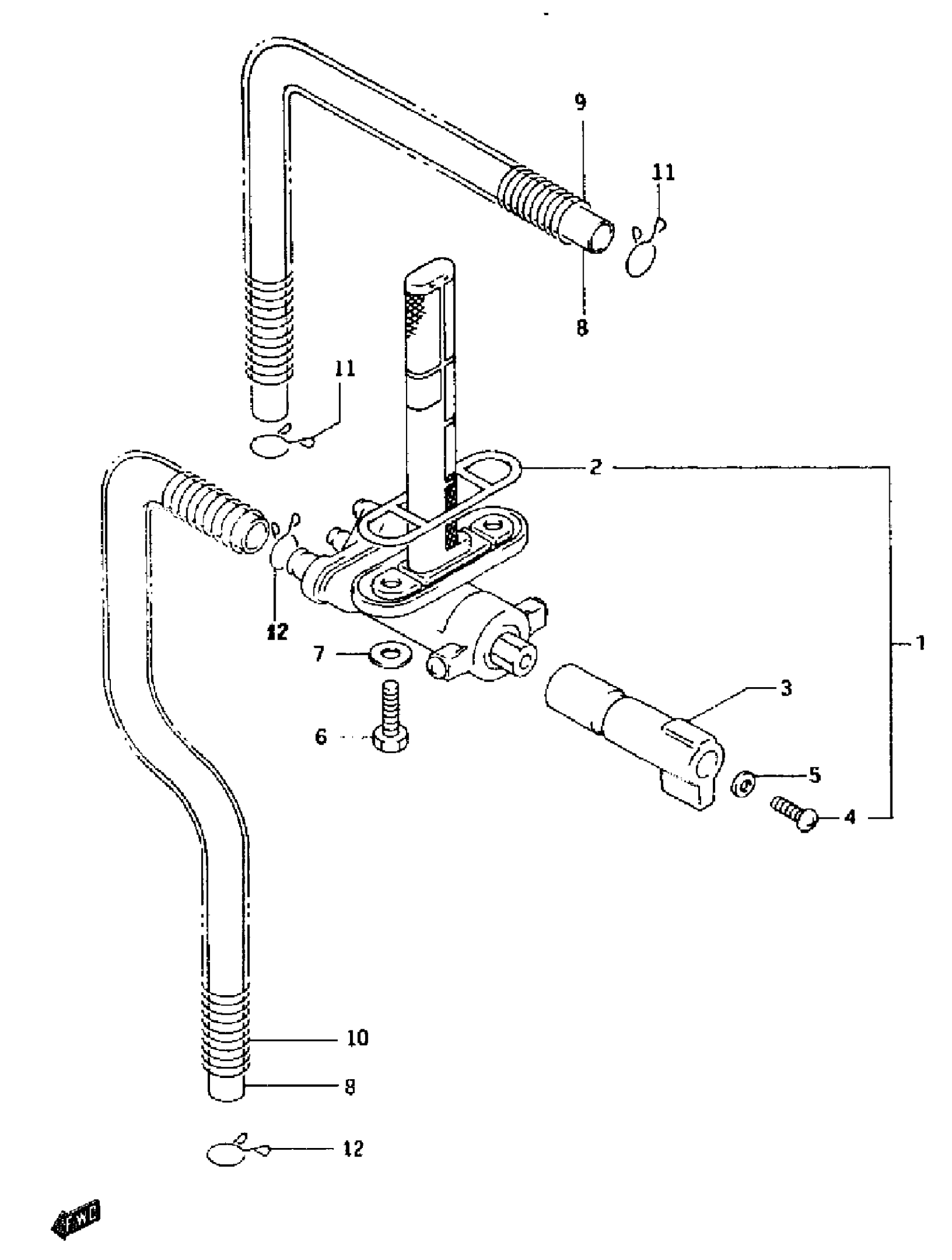

Suzuki GSX-R750W (1995) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL | MODEL P This part replaces 44300-17E00.

44300-17EVV

$275.15

1

COCK ASSY,FUEL | MODEL R/S This part replaces 44300-17E20.

44300-17EVV

$275.15

2

O RING

44305-17C00

$7.85

3

LEVER | MODEL P This part replaces 44306-17E00.

44306-17E20

Unavailable

3

LEVER | MODEL R/S

44306-17E20

Unavailable

4

SCREW | MODEL P/R This part replaces 02112-04126.

02112-0412A

$1.49

4

SCREW | MODEL S This part replaces 02112-34123.

02112-3412B

$2.30

5

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

6

BOLT This part replaces 09128-06006.

09128-06057

$1.65

7

GASKET

09168-06026

$3.10

8

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

8

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

9

SPRING This part replaces 09440-13038.

09440-13038-XC0

Unavailable

10

SPRING, NO.2

09440-13047

$4.82

11

CLIP

09401-10403

$1.65

12

CLIP This part replaces 09401-10201.

09401-10201-XC0

$2.19
