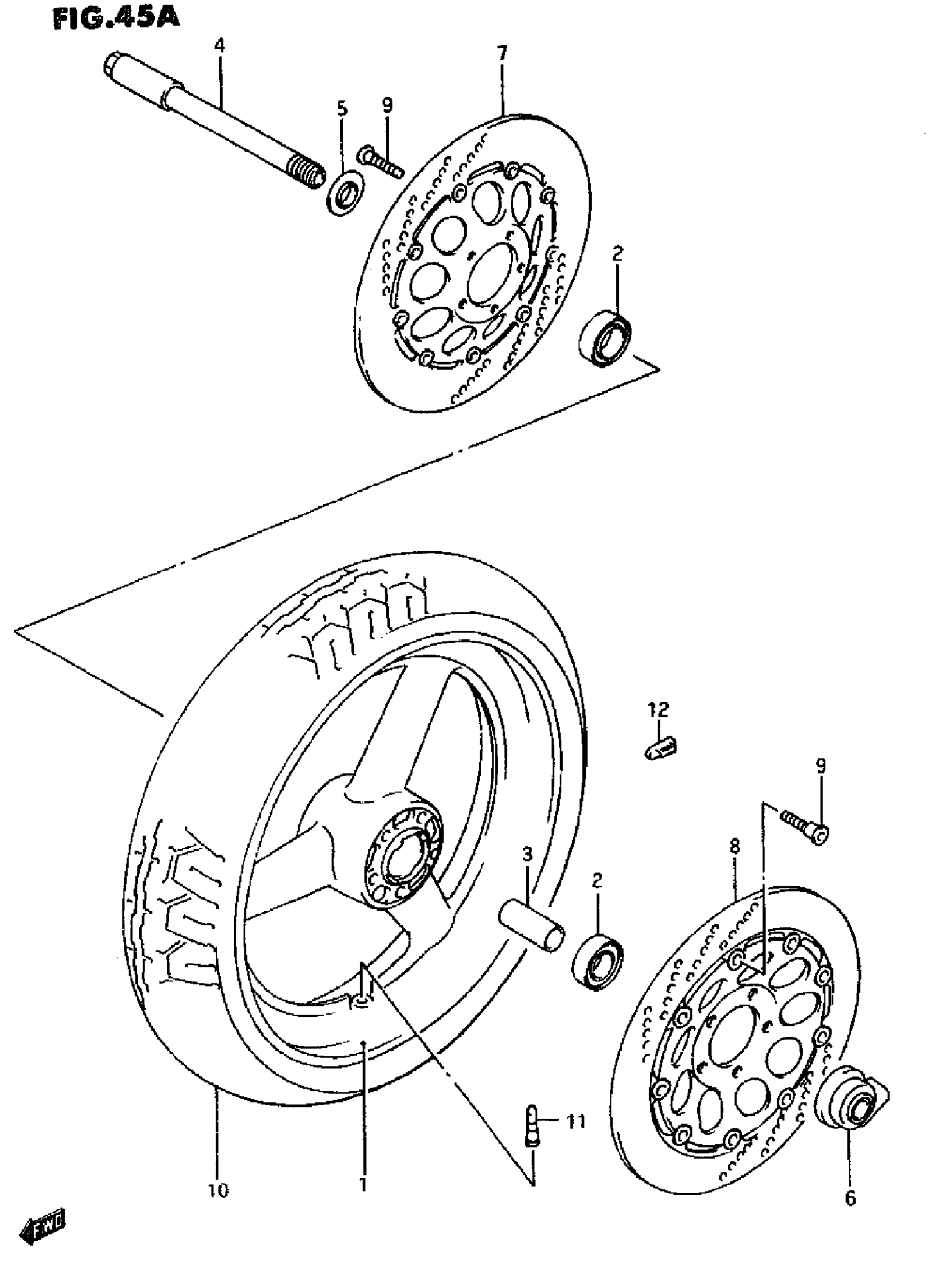

Suzuki GSX-R750W (1995) FRONT WHEEL (MODEL R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | WHEEL MODEL R FOR M18 This part replaces 54111-17E10-1MJ.

54111-17E12-1MJ

Unavailable

1

NO DESCRIPTION AVAILABLE | WHEEL FOR 1UJ This part replaces 54111-17E10-1LS.

54111-17E11-1LS

Unavailable

1

WHEEL,FR,17M/CX | WHEEL MODEL S FOR M18 This part replaces 54111-17E10-1ZV.

54111-17E12-1ZV

Unavailable

1

WHEEL,FR,17M/CX | FOR D4A 08123-62047 BEARING 2 This part replaces 54111-17E10-Y22.

54111-17E12-Y22

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER

09180-20103

$26.25

4

AXLE, FRONT

54711-17D00

Unavailable

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR

54600-17C01

Unavailable

7

DISC, FRONT BRAKE RH (BLACK/SILVER) | DISC, MODEL R

59210-17E00

Unavailable

7

DISC. FRONT BRAKE RH (BLACK/SILVER) | DISC. MODEL S

59210-17E10

Unavailable

8

DISC, FRONT BRAKE LH (BLACK/SILVER) | DISC, MODEL R

59220-17E00

Unavailable

8

DISC, FRONT BRAKE LH (BLACK/SILVER) | DISC, MODEL S

59220-17E10

Unavailable

9

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

10

TIRE, FRONT (120/70 ZR17 D204FG) (DUNLOP) | TIRE,

55110-17E30

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412) This part replaces 43130-24A11.

43130-24A00

$8.85

12

BALANCER (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

12

BALANCER (30G)

55413-00A01

Unavailable
