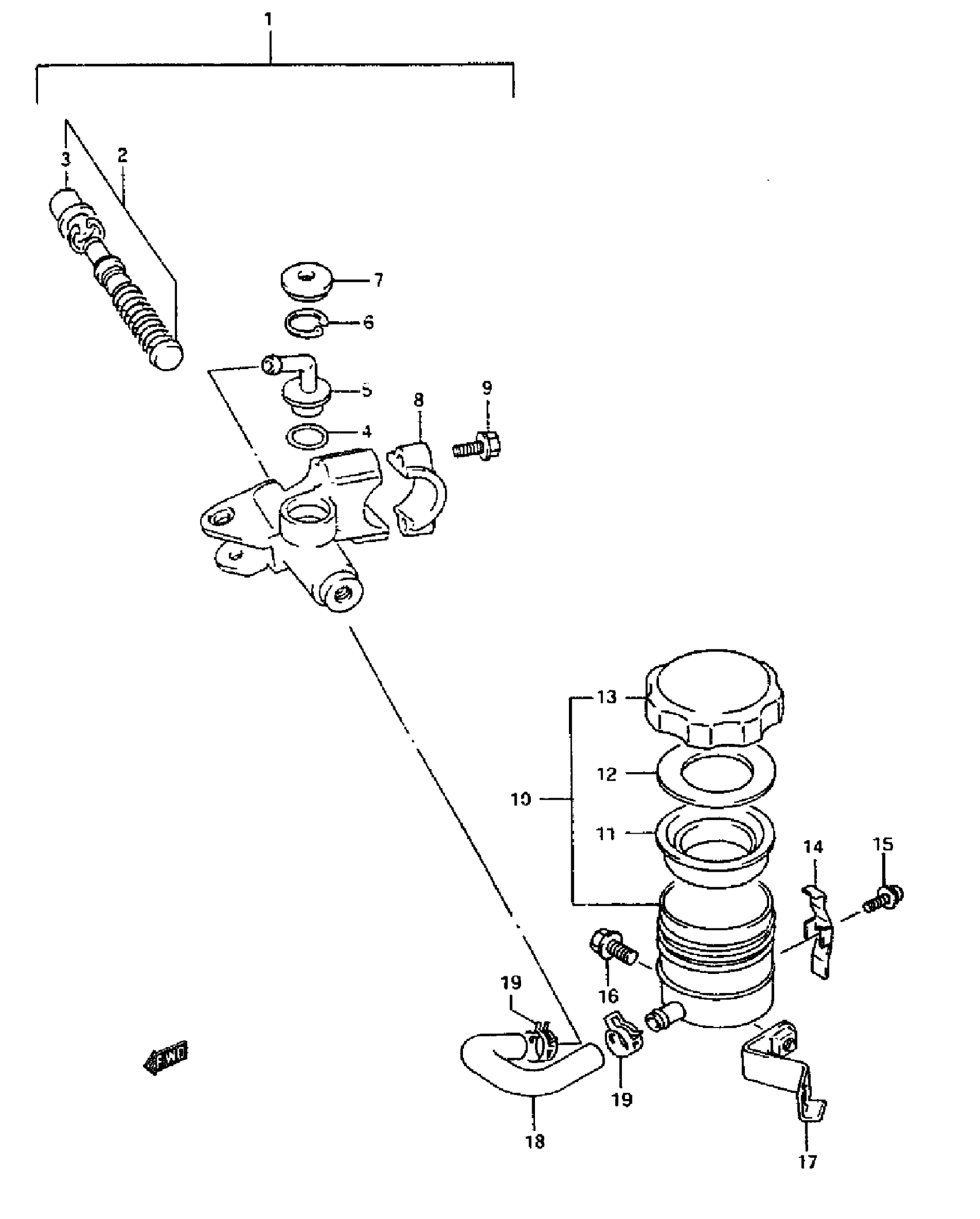

Suzuki GSX-R750W (1995) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-32C01

$325.48

2

PISTON/CUP SET

59600-45860

$37.77

3

BOOT

59666-44300

$5.54

4

0 RING

69686-34200

$2.80

5

CONNECTOR

59672-17C00

$8.91

6

CIRCLIP

69674-00B20

$3.90

7

COVER, DUST

59673-17C00

$8.27

8

.HOLDER

59671-36500

$12.01

9

BOLT HOLDER SET

59675-19C00

$4.53

10

TANK ASSY, RESERVOIR

59740-07D00

$57.78

11

DIAPHRAGM

59667-18441

$9.84

12

PLATE

59668-18441

$4.46

13

CAP

59669-07000

Unavailable

14

PLATE. TANK CAP

59743-17C00

$8.91

15

.SCREW | MODEL P This part replaces 02112-74128.

02112-7412A

$2.67

15

.SCREW | MODEL R/S This part replaces 02112-74123.

02112-7412A

$2.67

16

BOLT | MODEL P

01517-46167

Unavailable

16

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$2.01

17

NO DESCRIPTION AVAILABLE This part replaces 59750-17E00.

59750-17E01

Unavailable

18

HOSE. TANK

59731-17E00

$26.32

19

CLAMP, HOSE

59735-17C00

$4.71

20

TAG, RESERVOIR TANK | DRAWING NOT SHOWN

68321-17E10

Unavailable
