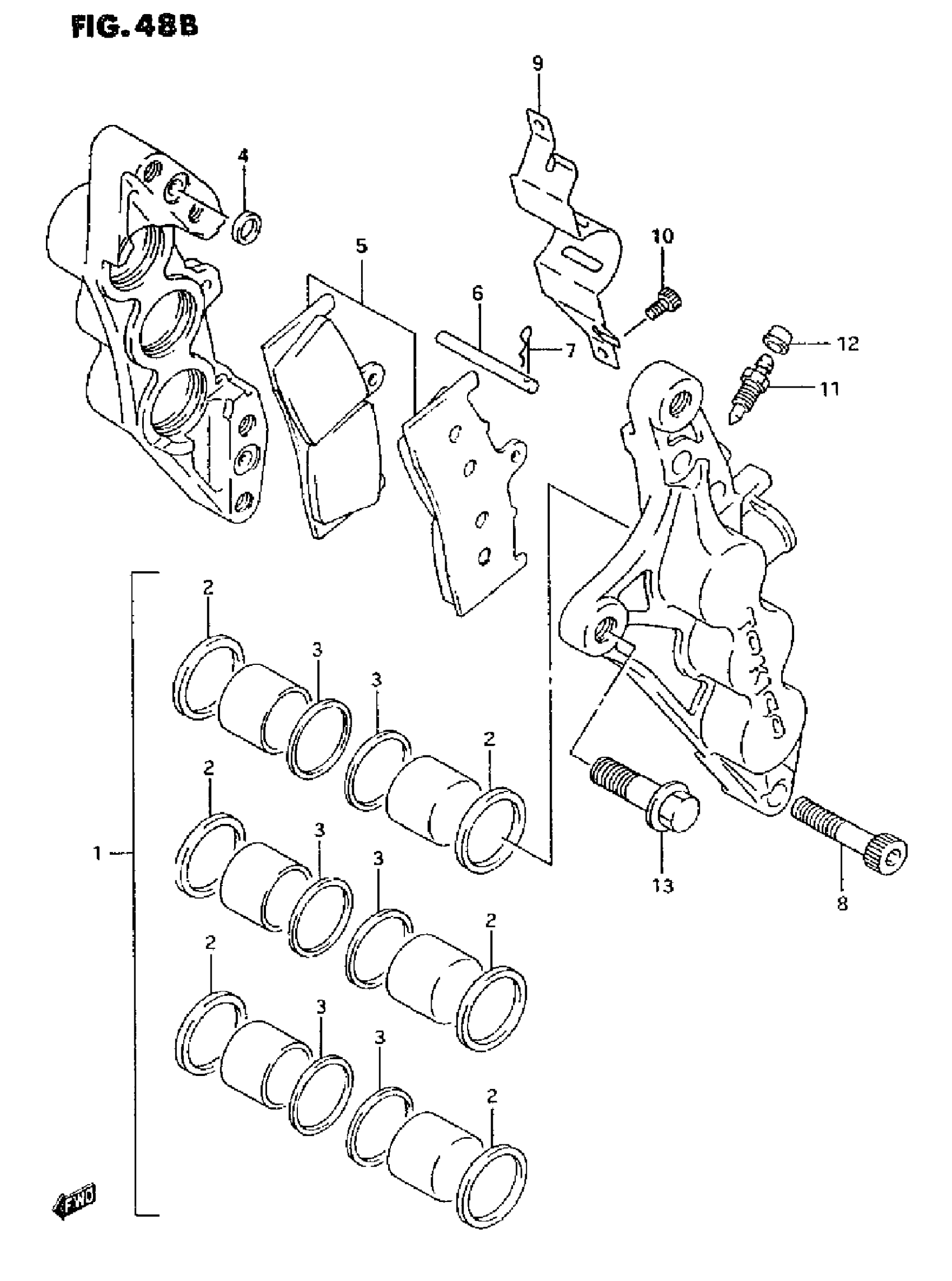

Suzuki GSX-R750W (1995) FRONT CALIPERS (MODEL S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 59100-46E10.

59100-46E11

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 59300-46E10.

59300-46E11

Unavailable

1

PISTON SET This part replaces 59100-46810.

59100-46811

Unavailable

2

SEAL,PISTON This part replaces 59107-04A00.

59107-40F00

$10.95

3

SEAL. WIPER

59108-04A00

$10.77

4

SEAL

69107-34200

$10.71

5

PAD SET

59300-46830

Unavailable

6

PIN

69141-45000

$5.17

7

.CLIP, PAD PIN

69142-45000

$4.34

8

BOLT

59145-00A00

Unavailable

9

XOVER

59151-46E00

$30.05

10

.SCREW

59153-22D00

$6.30

11

BLEEDER

59121-18410

$8.73

12

CAP

55156-66310

$5.17

13

BOLT This part replaces 01550-10303.

01550-1030A

$3.55
