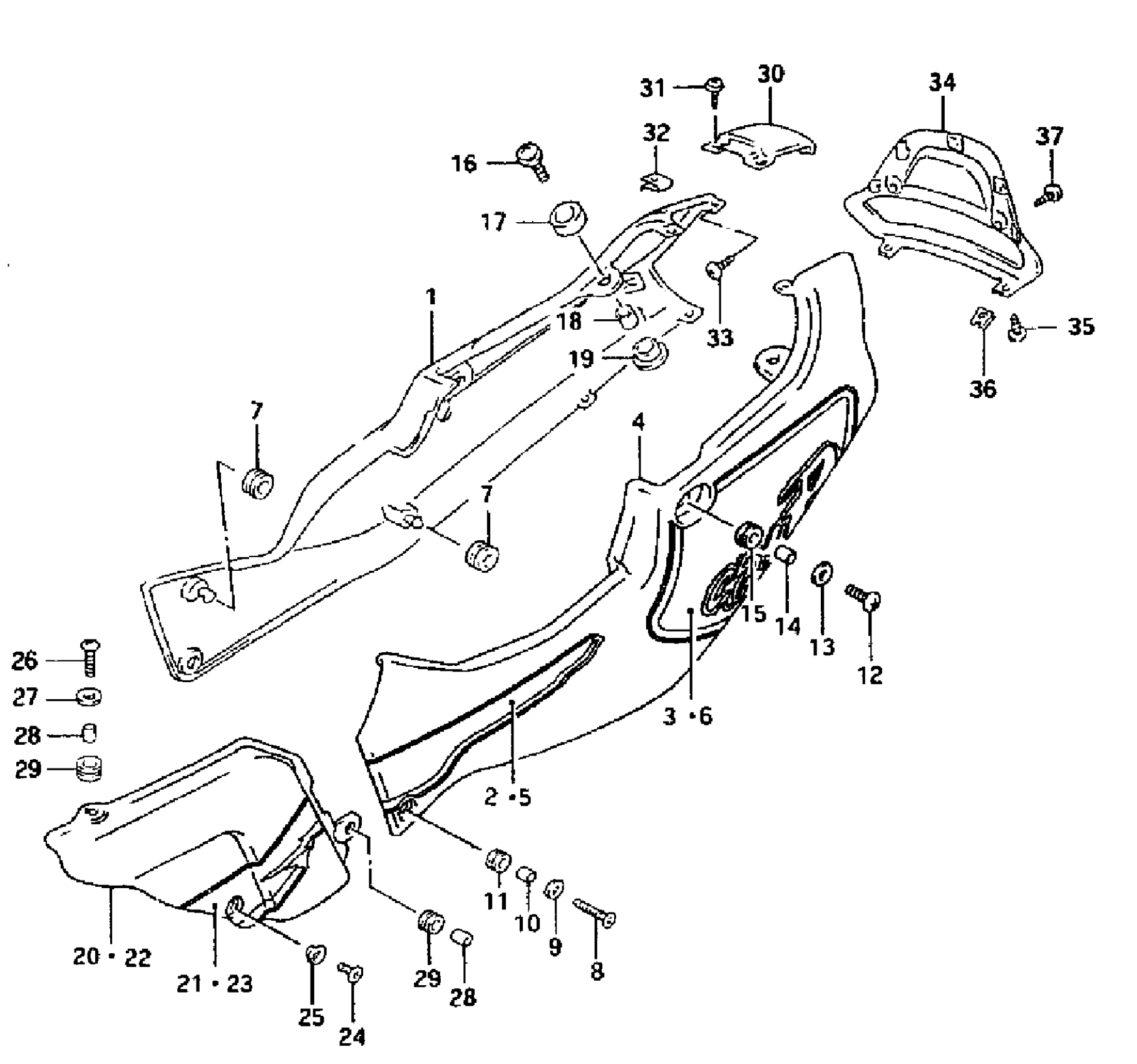

Suzuki GSX-R750W (1995) FRAME COVER (MODEL S) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR M18

47100-17EG0-0JW

Unavailable

1

COVER, FRAME RH (BLACK) | FOR MA

47100-17EG0-33J

Unavailable

2

TAPE, FRONT RH | FOR OJW

68135-17E20-D4H

Unavailable

2

TAPE, FRONT RH | FOR 333

68135-17E20-D6G

Unavailable

3

TAPE, ZECKEN RH | FOR 0JW

68136-17E20-Y96

Unavailable

3

TAPE, ZECKEN RH | FOR 333

68136-17E20-Y79

Unavailable

4

COVER, FRAME LH (WHITE) | FOR M18

47200-17EG0-0JW

Unavailable

4

COVER, FRAME LH (BLACK) | FOR D4A

47200-17EG0-33J

Unavailable

5

TAPE, FRONT LH | FOR OJW

68145-17E20-D4H

Unavailable

5

TAPE, FRONT LH | FOR 33J

68145-17E20-D6G

Unavailable

6

TAPE, ZECKEN LH | FOR OJW

68146-17E20-Y96

Unavailable

6

TAPE, ZECKEN LH | FOR 33J

68146-17E20-Y79

Unavailable

7

CUSHION, INNER

09320-08018

$3.04

8

SCREW, FRONT

09139-06042

$5.55

9

WASHER This part replaces 09160-06006.

09160-06084

$1.78

10

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

11

CUSHION

09320-09016

$1.97

12

SCREW, SIDE

09139-06071

$4.41

13

WASHER

09160-06054

$1.62

14

SPACER This part replaces 09180-06027.

09180-06258

$1.81

15

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

16

SCREW, UPPER

09136-06083

$2.19

17

CUSHION, UPPER

45149-04A00

$3.59

18

SPACER This part replaces 09180-06167.

09180-06286

$2.50

19

CUSHION, LOWER

45326-17C00

$5.09

20

COVER, FRAME BODY RH (WHITE) | FOR M18

47500-17E70-0JW

Unavailable

20

COVER, FRAME BODY RH (BLACK) | FOR MA

47500-17E70-33J

Unavailable

21

TAPE, RH | FOR OJW

68665-17E10-D4H

Unavailable

21

TAPE, RH | FOR 33J

68665-17E10-D6G

Unavailable

22

COVER. FRAME BODY LH (WHITE) | FOR NIS

47600-17E70-0JW

Unavailable

22

COVER, FRAME BODY LH (BLACK) | FOR MA

47600-17E70-33J

Unavailable

23

TAPE. LH | FOR 0JW

68675-17E10-D4H

Unavailable

23

TAPE, LM | FOR 33J

68675-17E10-D6G

Unavailable

24

SCREW. SIDE

09139-05025

$2.05

25

WASHER

09169-06040

$1.92

26

SCREW. UPPER

09136-06113

$2.83

27

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

28

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

29

CUSHION

09320-09016

$1.97

30

COVER , FRAME CENTER (WHITE) | FOR NIB

47300-17E00-0JW

Unavailable

30

COVER, FRAME CENTER (BLACK) | FOR MA

47300-17E00-33J

Unavailable

31

SCREW This part replaces 03141-14123.

03141-1412B

$2.83

32

NUT

09148-04024

$2.23

33

SCREW, INNER

09139-05025

$2.05

34

COVER, FRAME REAR

47411-17E00

Unavailable

35

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

36

NUT

09148-05021

$1.86

37

SCREW This part replaces 03541-04103.

03541-0410A

$1.68
