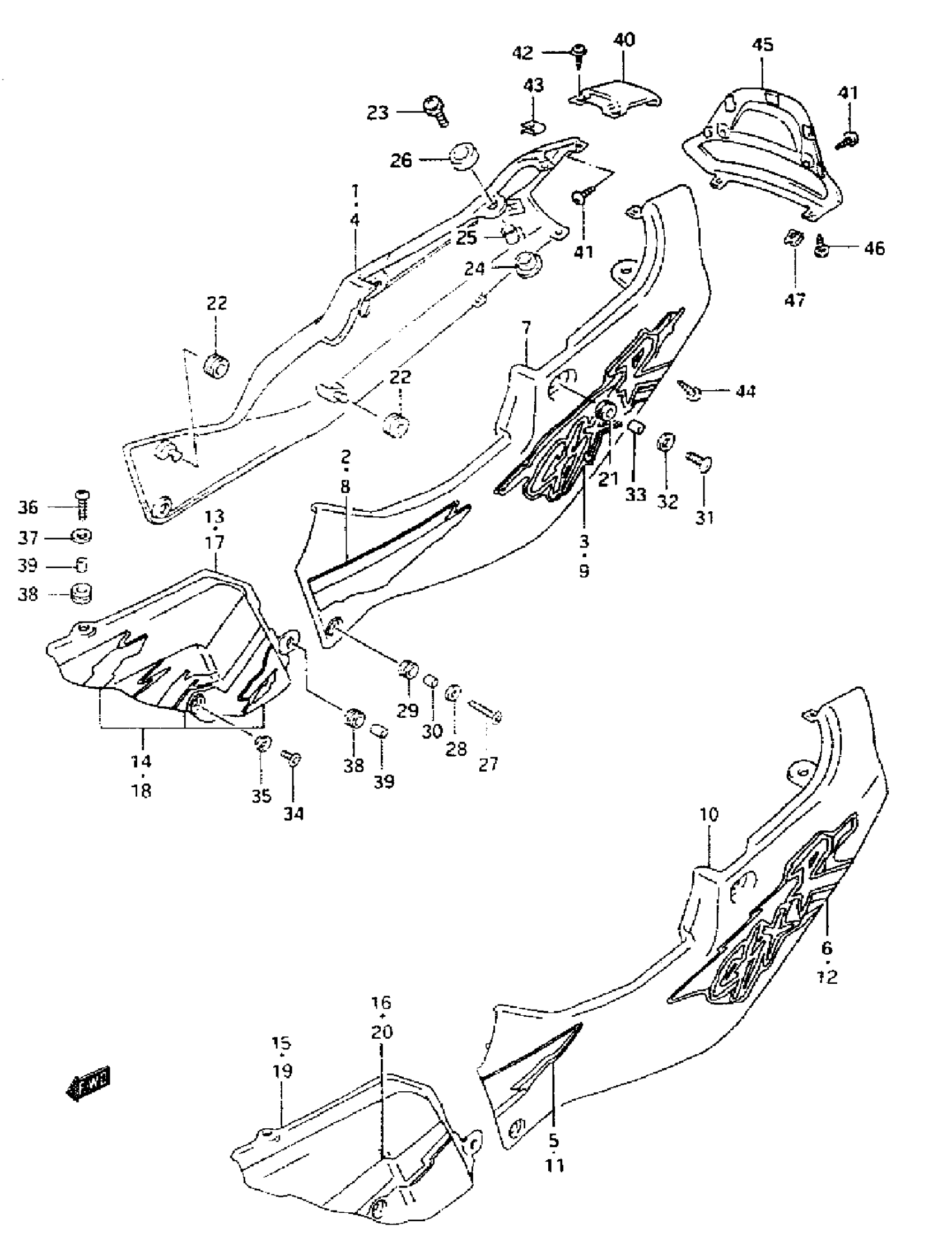

Suzuki GSX-R750W (1995) FRAME COVER (MODEL R) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR ML$

47100-17EA0-1LX

Unavailable

2

TAPE, RH | FOR 1LX

68135-46E10-C4P

Unavailable

3

EMBLEM, RH | FOR ILX

68131-46E00-1WW

Unavailable

4

COVER, FRAME RH (SILVER) | FOR ITU

47100-17EB0-1UJ

Unavailable

5

TAPE, RH | FOR 1UJ

68135-17E10-C4S

Unavailable

6

EMBLEM. RH | FOR IUJ

68131-17E20-1YA

Unavailable

7

COVER. FRAME LH (WHITE) | FOR M18

47200-17EA0-1LX

Unavailable

8

TAPE, LH | FOR 1LX

68145-46E10-C4P

Unavailable

9

EMBLM. LH | FOR ILX

68141-46E00-1WW

Unavailable

10

COVER, FRAME LH (SILVER) | FOR IUJ

47200-17EB0-1UJ

Unavailable

11

TAPE, LH | FOR IUJ

68145-17E10-C4S

Unavailable

12

EMBLEM, LH | FOR 1UJ

68141-17E20-1YA

Unavailable

13

COVER, FRAME BODY RH (BLUE) | FOR M18

47500-46E20-1LE

Unavailable

14

TAPE SET. RH | FOR ILE

68660-46E10-C4P

Unavailable

15

COVER, FRAME BODY RH (SILVER) | FOR IUJ

47500-17E60-1UJ

Unavailable

16

TAPE, RH | FOR 1UJ

68665-17E00-C4S

Unavailable

17

COVER, FRAME BODY LH (BLUE) | FOR HIS

47600-46E20-1LE

Unavailable

18

TAPE SET, LH | FOR ILE

68670-46E10-C4P

Unavailable

19

COVER, FRAME BODY LH (SILVER) | FOR 1UJ

47600-17E60-1UJ

Unavailable

20

TAPE, LH | FOR 1UJ

68675-17E00-C4S

Unavailable

21

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

22

CUSHION. INNER

09320-08018

$3.04

23

SCREW. UPPER

09136-06083

$2.19

24

CUSHION, CENTER LOWER

45326-17C00

$5.09

25

SPACER This part replaces 09180-06167.

09180-06286

$2.50

26

CUSHION, CENTER UPPER

45149-04A00

$3.59

27

SCREW, FRAME COVER FRONT

09139-06042

$5.55

28

WASHER This part replaces 09160-06006.

09160-06084

$1.78

29

CUSHION

09320-09016

$1.97

30

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

31

SCREW, SIDE

09139-06050

$4.73

32

WASHER

09160-06054

$1.62

33

SPACER This part replaces 09180-06027.

09180-06258

$1.81

34

SCREW, BODY COVER SIDE

09139-05025

$2.05

35

WASHER

09169-06040

$1.92

36

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

37

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

38

CUSHION

09320-09016

$1.97

39

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

40

COVER, FRAME CENTER (WHITE) | FOR M18

47300-17E00-0JW

Unavailable

40

COVER, FRAME CENTER (SILVER) | FOR 1UJ

47300-17E00-1UJ

Unavailable

41

SCREW, CENTER

09139-05021

$1.72

42

SCREW This part replaces 03141-14123.

03141-1412B

$2.83

43

NUT, FRONT

09148-04024

$2.23

44

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

45

COVER, FRAME REAR

47411-17E00

Unavailable

46

SCREW

09139-05021

$1.72

47

NUT This part replaces 09148-05023.

09148-05021

$1.86
