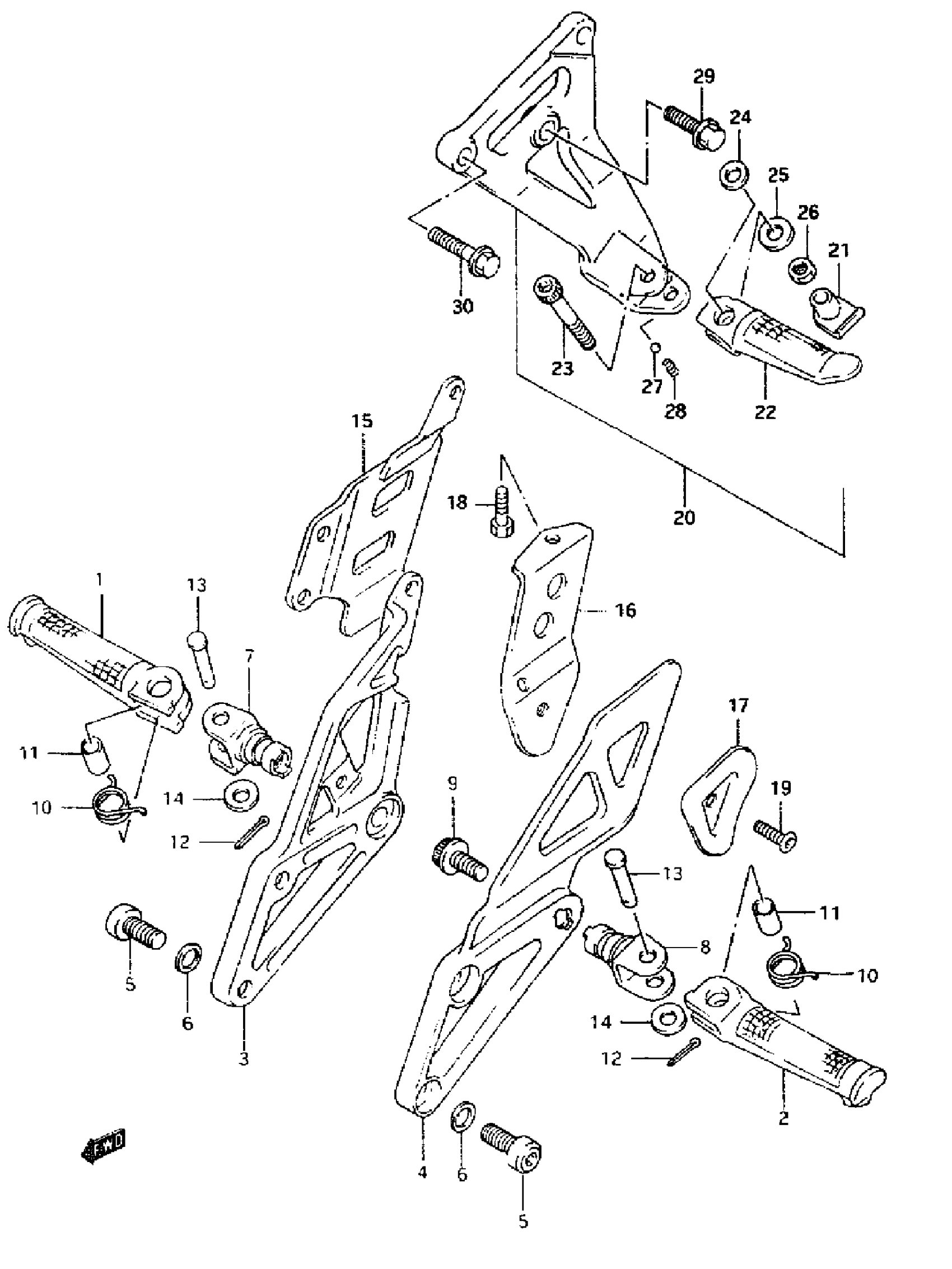

Suzuki GSX-R750W (1995) FOOTREST Diagram

#

Description
Price

1

OM, FRONT FOOTREST RH

43511-17C02

Unavailable

2

BAR, FRONT FOOTREST LK

43521-17C02

Unavailable

3

BRACKET, FOOTREST RH | MODEL P This part replaces 43511-17E00.

43511-17E01

Unavailable

3

BRACKET, FOOTREST RH | MODEL R/S

43511-17E01

Unavailable

4

BRACKET, FOOTREST LH | MODEL P This part replaces 43522-17E00.

43522-17E02

Unavailable

4

BRACKET, FOOTREST LH | MODEL R This part replaces 43522-17E01.

43522-17E02

Unavailable

4

BRACKET, FOOTREST LH | MODEL 5

43522-17E02

Unavailable

5

BOLT | MODEL P TO 07130-10203 This part replaces 43529-17E00.

07130-1020B

$4.60

5

BOLT | MODEL R/S This part replaces 07130-10203.

07130-1020B

$4.60

6

WASHER

09164-10010

$4.83

7

HOLDER, FOOTREST RH This part replaces 43530-17E00.

43530-17E01

$56.05

8

HOLDER, FRONT FOOTREST.1H

43540-17E00

$53.98

9

BOLT, FOOTREST HOLDER

09106-10052

Unavailable

10

SPRING This part replaces 09448-19020.

09448-18022

$3.79

11

SPACER, FRONT FOOTREST

09180-08149

$5.58

12

PIN This part replaces 04111-25158.

04111-2515A

$1.49

13

PIN

09200-08057

$2.36

14

WASHER | MODEL P/R

09160-08043

$1.83

15

GUARD, FOOTREST RH This part replaces 43571-46E00.

43570-17E00

Unavailable

16

REINFORCEMENT, LH

43531-17E01

Unavailable

17

PLATE | MODEL P/R

43532-17E00

Unavailable

18

BOLT, GEAR SHIFT ARM | MODEL P This part replaces 01107-06255.

01500-0625A

$1.78

18

BOLT | MODEL R/S

01580-06253

Unavailable

18

SCREW | MODEL P This part replaces 02142-06205.

02142-0620A

$1.49

18

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

$1.49

19

SCREW, PLATE

09139-06027

$2.16

20

FOOTREST ASSY, PILLION RH | MODEL P

43600-17E00

Unavailable

20

FOOTREST ASSY, PILLION RH | MODEL R/S

43600-17E10

Unavailable

20

FOOTREST ASSY, PILLION LH | MODEL P

43700-17E00

Unavailable

20

FOOTREST ASSY, PILLION LH | MODEL R/S

43700-17E10

Unavailable

21

BOSS, PILLION FOOTREST RH

43580-17E00

Unavailable

21

BOSS, PILLION FOOTREST LH

43590-17E00

Unavailable

22

OM, RH

43611-32C00

$54.48

22

BAR, LH

43621-32C00

Unavailable

23

BOLT | MODEL P

07130-08507

$4.77

23

BOLT | MODEL R/S This part replaces 07130-08553.

07130-0855B

$4.77

24

WASHER

09160-08043

$1.83

25

WASHER | MODEL P

08322-01087

$2.13

25

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

26

NUT This part replaces 08319-21088.

08319-2108A

$2.12

27

BALL

06111-07004

$1.49

28

SPRING

09440-05003

$1.49

29

BOLT | MODEL P

01550-08207

$2.69

29

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

30

BOLT | MODEL P

01550-08307

$3.54

30

BOLT | MODEL R/S This part replaces 01550-08303.

01550-0830A

$3.04
