Partiron

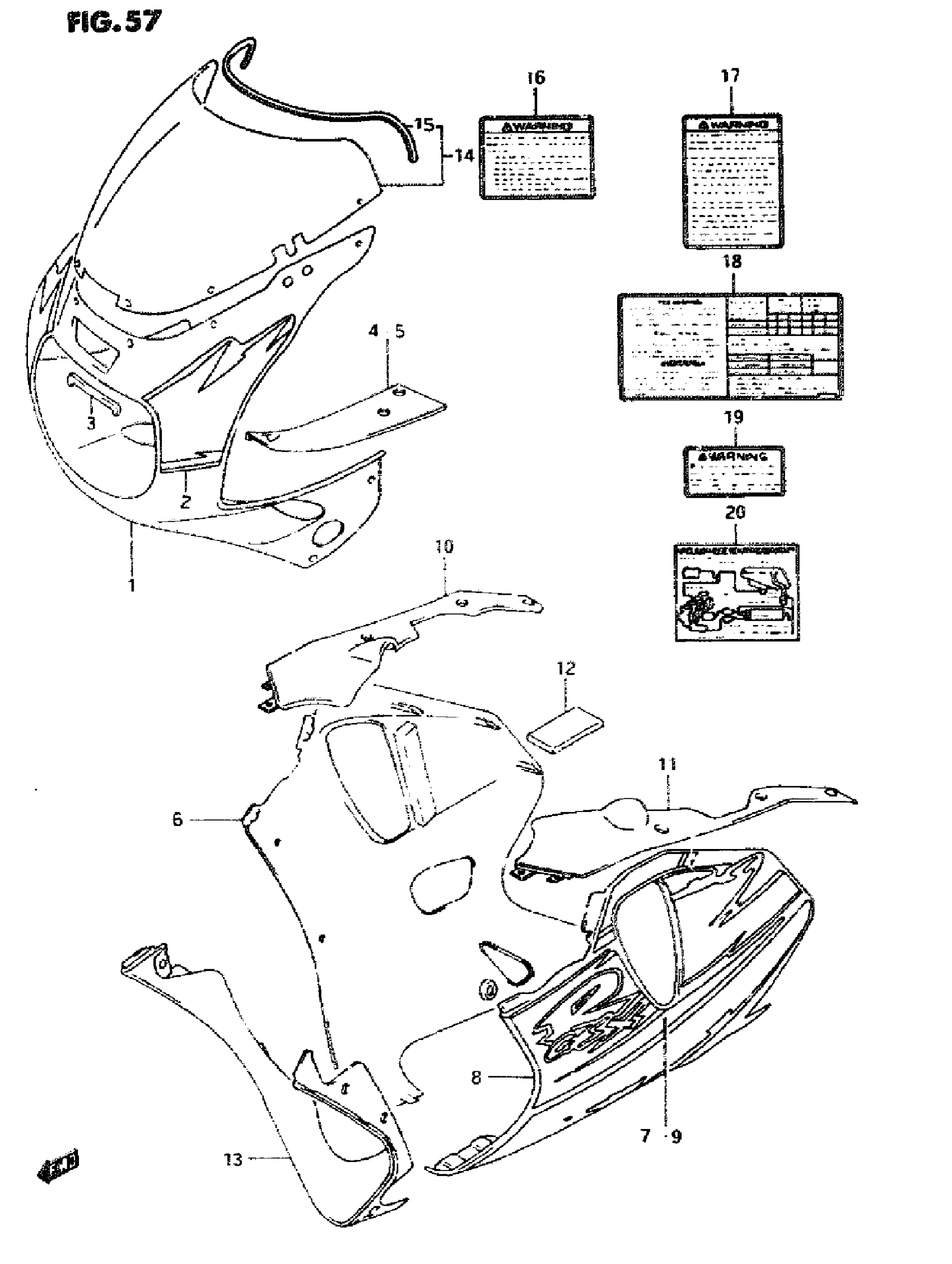

Suzuki GSX-R750W (1995) COWLING BODY PARTS (MODEL P 1TU) Diagram

#

Description
Price

1

COWLING ASSY. BGDY (PURPLE)

94400-17E60-1TU

Unavailable

2

TAPE SET, UPPER

68270-17E20-A6B

Unavailable

3

CUSHION, FRONT POSITION LAMP

94418-17E00

Unavailable

4

PANEL. UPPER. RH

94415-17E00

Unavailable

5

PANEL, LIPPER, LH

94425-17E00

Unavailable

6

COWLING ASSY, UNDER RH (BLACK) | COWLI

94407-17E70-33J

Unavailable

7

JAK SET, UNDER RH

68180-17E40-A6C

Unavailable

8

COWLING ASSY, UNDER LH (BLACK) | COWLI

94408-17E70-33J

Unavailable

9

TAPE SET, UNDER LH

68190-17E40-A6C

Unavailable

10

PANEL, LOWER RH

94416-17E00

Unavailable

11

PANEL. LOWER LH

94426-17E00

Unavailable

12

CUSHION This part replaces 69732-17C01.

47451-38A01

$4.43

13

COWLING, UNDER CENTER (BLOCK)

94498-17E00-019

Unavailable

14

SCREEN SET. WIND

94610-17E00

Unavailable

15

MOLDING | ->94631-18001 This part replaces 94631-19C30.

94631-18D01

Unavailable

16

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

17

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

18

LABEL, TIRE AIR PRESSURE

68332-17E30

Unavailable

19

LABEL,WARNING S This part replaces 68613-18E00.

68613-18E01

$6.37

20

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY

68387-46E00

Unavailable
