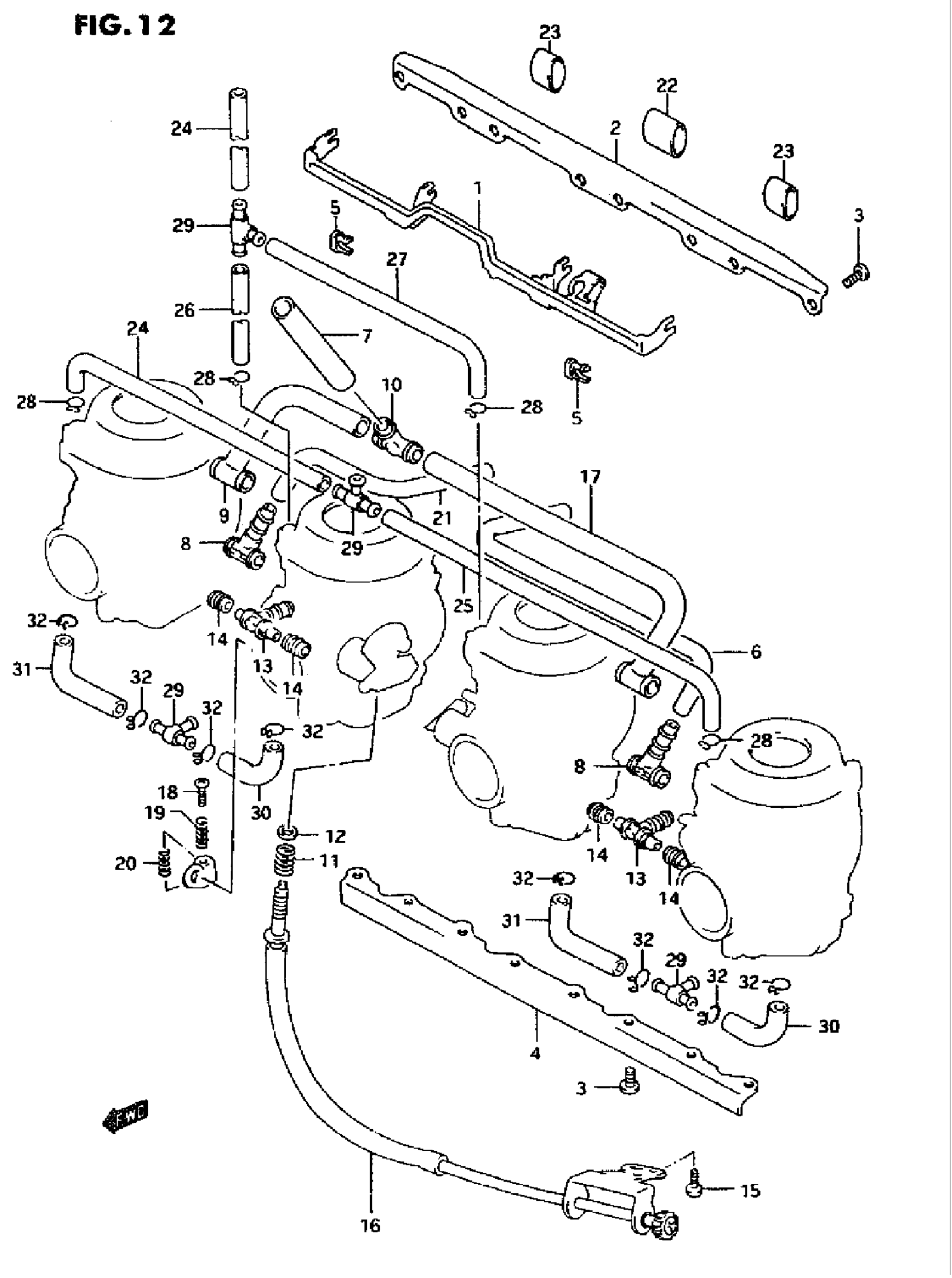

Suzuki GSX-R750W (1995) CARBURETOR FITTINGS Diagram

#

Description
Price

1

LEVER, STARTER

13413-17E00

Unavailable

2

PLATE

13628-17E10

Unavailable

3

SCREW

02112-05127

$1.97

4

NO DESCRIPTION AVAILABLE This part replaces 13628-17E00.

13620-17EV0

Unavailable

5

HOLDER

13439-17C00

$10.62

6

HOSE This part replaces 13683-17E00.

13684-17E00

Unavailable

6

HOSE | CALIFORNIA ONLY

13684-17E00

Unavailable

7

NO DESCRIPTION AVAILABLE | EXCEPT CALIFORNIA This part replaces 13683-17E10.

13683-46E00

Unavailable

8

NIPPLE

13684-20C10

$5.56

9

HOSE ASSY | EXCEPT CALIFORNIA This part replaces 13680-17E10.

13680-17E00

Unavailable

10

NIPPLE | EXCEPT CALIFORNIA

13685-17E00

Unavailable

11

SPRING

13375-60A00

$8.42

11

SPRING | CALIMANIA OMLY This part replaces 13268-43410.

13375-14D10

$7.05

12

WASHER

13427-38300

$1.92

13

NIPPLE

13685-44B00

$11.37

14

SEAL

13673-44B00

$4.60

15

SCREW

02112-05107

$1.49

16

ADJUSTER ASSY

13279-17E00

Unavailable

17

HOSE ASSY | EXCEPT CALIFORNIA

13680-17E00

Unavailable

18

SCREW

13267-44B00

$4.10

19

SPRING

13271-44B00

$3.89

20

SPRING

13268-17C10

$6.19

21

HOSE This part replaces 13683-17E20.

13684-17E10

Unavailable

21

HOSE | CALIFORNIA ONLY

13684-17E10

Unavailable

22

HOSE | CALIFORNIA ONLY This part replaces 13684-17C00.

13684-43440

Unavailable

23

HOSE | CALIFORNIA ONLY This part replaces 13684-17C10.

13684-43440

Unavailable

24

HOSE | CALIFORNIA ONLY This part replaces 13684-17D10.

09352-50901-600

$8.06

25

.HOSE | CALIFORNIA ONLY This part replaces 13687-17C00.

09352-50006-600

$7.48

26

HOSE | L:125+35 CALIFORNIA ONLY This part replaces 13684-17D10.

09352-50901-600

$8.06

27

HOSE | U125+100 CALIFORNIA ONLY This part replaces 13684-17D10.

09352-50901-600

$8.06

28

CLIP | CALIFORNIA ONLY This part replaces 13671-05A30.

09401-08410

$1.84

29

.NIPPLE | CALIFORNIA ONLY

13685-48B00

$12.15

30

HOSE | CALIFORNIA ONLY This part replaces 13684-48B00.

13684-48B11

$15.96

31

HOSE | CALIFORNIA ONLY This part replaces 13684-18E10.

13684-48B11

$15.96

32

CLIP | CALIFORNIA ONLY C4 This part replaces 13671-48B10.

09401-10401

$1.49
