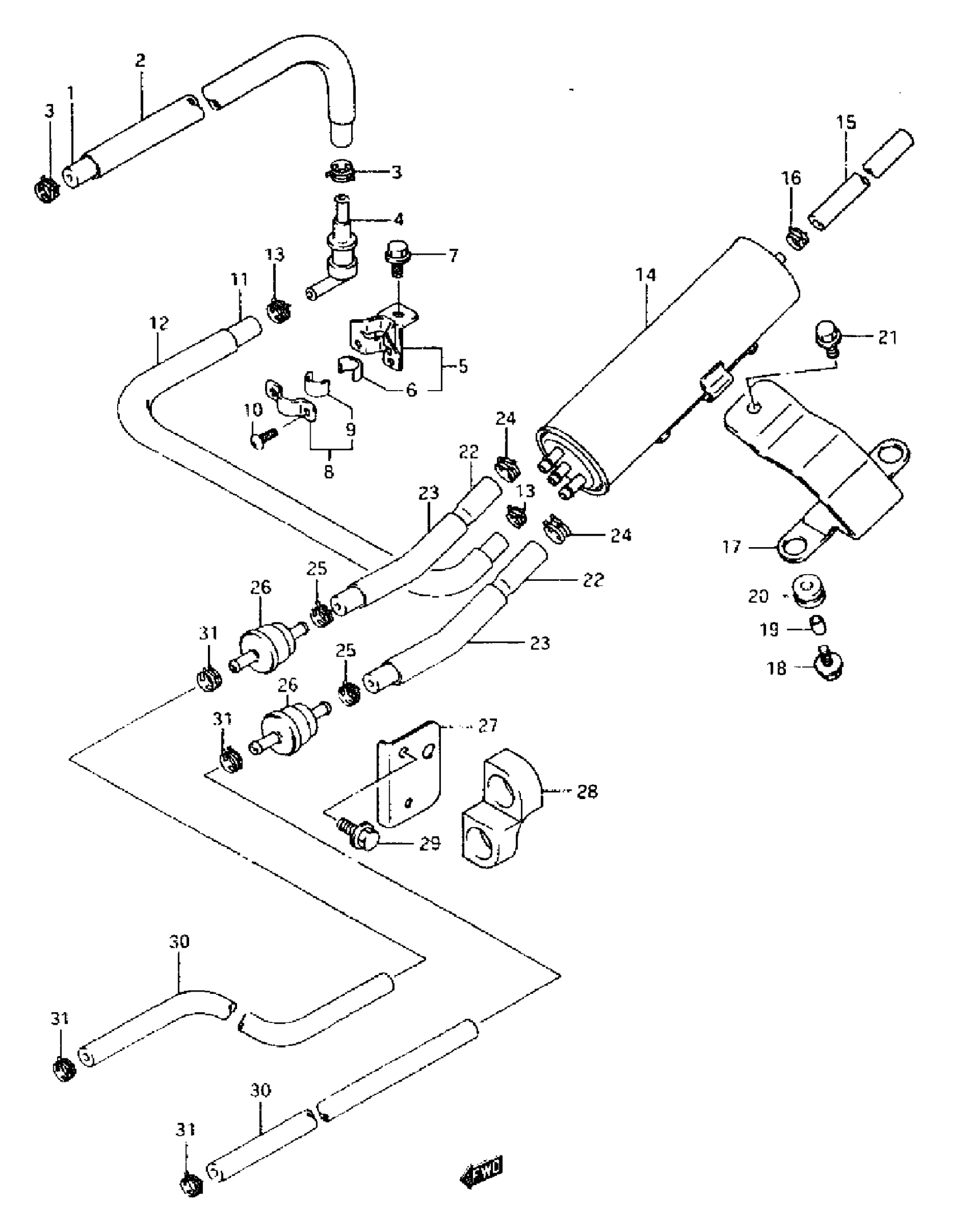

Suzuki GSX-R750W (1995) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:600-->230 This part replaces 09354-54115-600.

09355-54115-600

$12.71

2

PROTECTORM,FUEL This part replaces 44461-01D01.

44461-24D00

$11.83

3

CLIP

09401-11413

$2.31

4

VALVE FUEL TANK BREATHER

44240-17C00

$73.01

5

BRACKET, BREATHER VALVE

44890-17E00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.86

7

BOLT, CLAMP | MODEL P/R This part replaces 01517-06125.

01550-0612A

$2.01

7

BOLT, CLAMP | MODEL S This part replaces 01550-06123.

01550-0612A

$2.01

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

9

CUSHION (10X30X2)

44894-24A00

$1.86

10

SCREW This part replaces 02142-04103.

02142-0410A

$1.25

11

HOSE, TANK & BREATHER VALVE | L:600-->330 This part replaces 09354-54115-600.

09355-54115-600

$12.71

12

PROTECTOR

44462-26D01

Unavailable

13

CLIP

09401-11413

$2.31

14

CANISTER ASSY

17210-17E00

Unavailable

15

HOSE, 3 OUT/CANISTER This part replaces 09343-07502.

09343-07501

$20.80

16

CLIP This part replaces 09401-12406.

09401-11415

$2.31

17

BRACKET. CANISTER

44881-17E00

Unavailable

18

BOLT (6X16) This part replaces 09116-06016.

09116-06168

$2.57

19

SPACER This part replaces 09180-06152.

09180-06262

$2.64

20

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.14

21

BOLT | MODEL P/R This part replaces 01517-06164.

01550-0616A

$2.01

21

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$2.01

22

HOSE, CANISTER & PURGE | L:600-->105

09359-54111-600

$28.05

22

HOSE, CANISTER & PURGE | L:600-->25

09359-54111-600

$28.05

23

PROTECTOR

44462-17E00

Unavailable

23

PROTECTOR

44461-17E00

Unavailable

24

CLIP This part replaces 09401-11407.

09401-11415

$2.31

25

CLIP

09401-11413

$2.31

26

VALVE, CANISTER PURGE

44250-48B00

Unavailable

27

BRACKET, PURGE VALVE

44883-17E00

Unavailable

28

CUSHION

44882-17C00

Unavailable

29

BOLT, CLAMP | MODEL P/R This part replaces 01517-06125.

01550-0612A

$2.01

29

BOLT, CLAMP | MODEL S This part replaces 01550-06123.

01550-0612A

$2.01

30

HOSE, TANK & BREATHER VALVE | L:600-->390 This part replaces 09354-54115-600.

09355-54115-600

$12.71

30

HOSE, TANK & BREATHER VALVE | L:600-->470 F10 This part replaces 09354-54115-600.

09355-54115-600

$12.71

31

CLIP

09401-11413

$2.31
