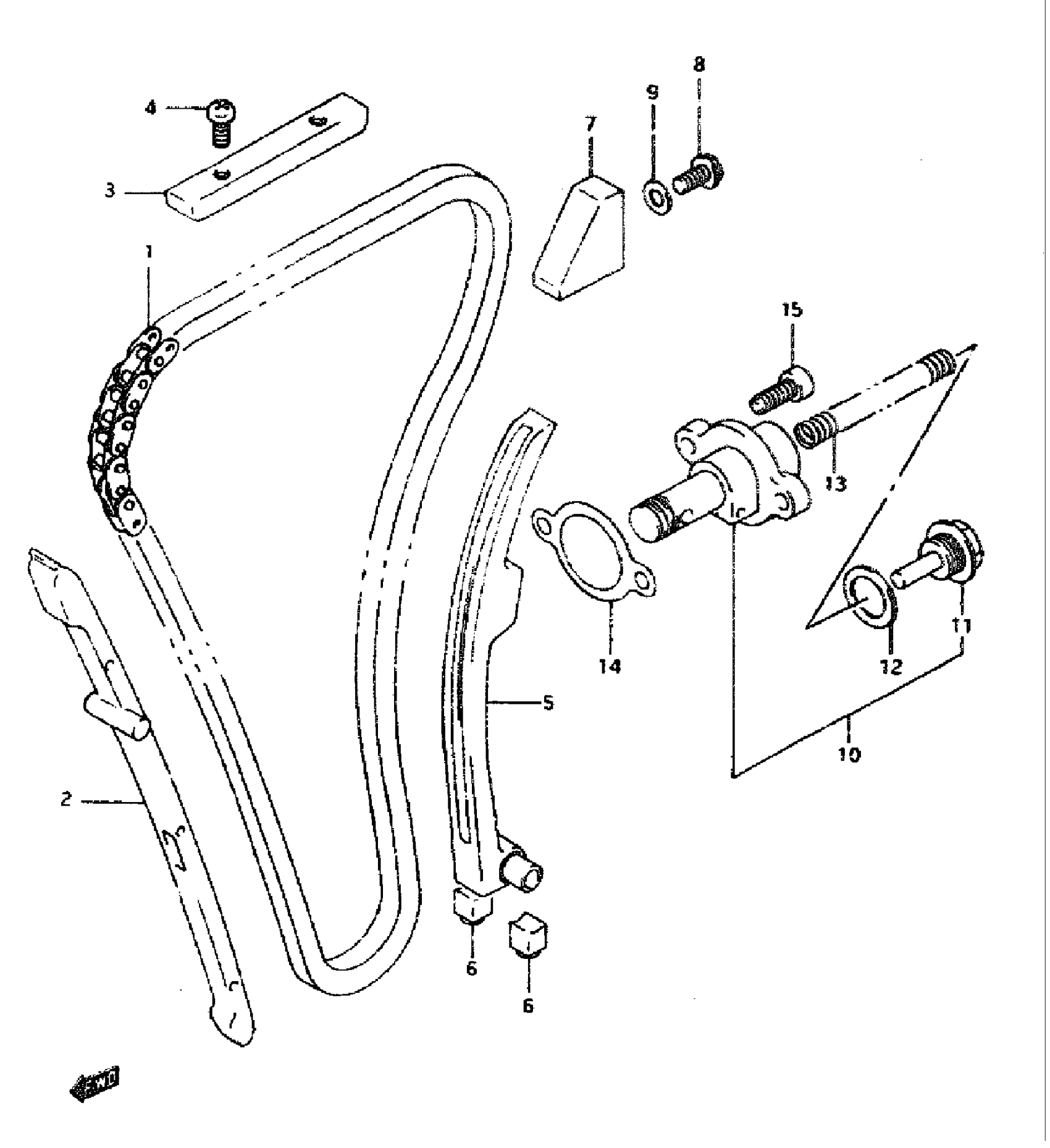

Suzuki GSX-R750W (1995) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CM SHAFT DRIVE | MODEL FIR This part replaces 12760-17E00.

12760-17E01

Unavailable

1

CHAIN, CM SHAFT DRIVE | MADEL S

12760-17E01

Unavailable

2

GUIDE, CM CHAIN NO.1

12771-17E00

Unavailable

3

GUM, CM CHAIN N 2

12782-18E00

Unavailable

4

SCREW | =X191 P This part replaces 02112-05108.

02112-05107

$1.49

4

SCREW, THROTTLE | MODEL WS This part replaces 02112-05103.

02112-0510A

$1.49

5

TENSIONER, CM CHAIN | MODEL P This part replaces 12810-17E00.

12810-17E01

Unavailable

5

TENSIONER, CM CHAIN | MOD&L RIS

12810-17E01

Unavailable

6

CUSHION

12814-34200

$5.58

7

GUIDE, CAM CHAIN NO.3 | MODEL FIR This part replaces 12791-17E00.

12791-17E01

$79.07

7

GUIDE. CM CHAIN NO.1 | MODEL S

12791-17E01

$79.07

8

BOLT, CLAMP | MODEL P This part replaces 01517-06125.

01550-0612A

$1.97

8

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

9

WASHER

09168-06023

$2.35

10

ADJUSTER ASSY, TENSIONER | MD& I P This part replaces 12830-26D10.

12830-46E00

Unavailable

10

ADJUSTER ASSY, TENSIONER | MODEL R/S This part replaces 12830-26D12.

12830-46E00

Unavailable

11

PLUG

12834-27A00

Unavailable

12

GASKET

12932-27A00

$2.26

13

SPRING

12833-26D10

$6.88

14

CASKET. ADJUSTER (MR)

12837-27A10

$3.85

15

BOLT,6X23 | MODEL P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

15

BOLT (6X23) | MODEL R/S

09106-06082

$2.62
