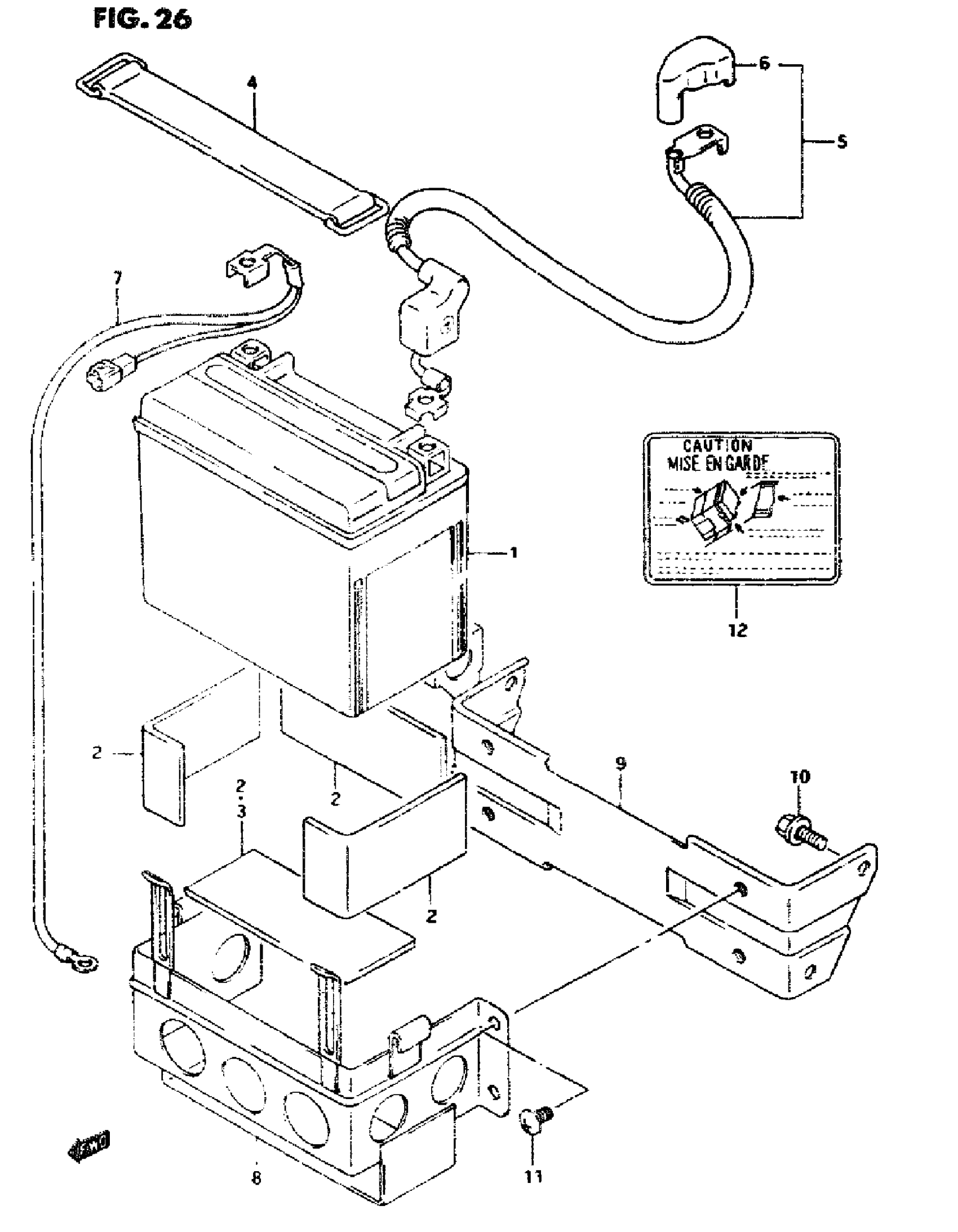

Suzuki GSX-R750W (1995) BATTERY Diagram

#

Description
Price

1

BATTERY (FTX12-BS,12V,10AH) | MODEL P This part replaces 33610-17E00.

33610-48E20

$98.67

1

BATTERY ASSY (12V,8AH) | MODEL R/S This part replaces 33610-10D00.

33610-33E20

Unavailable

2

CUSHION | CUT AS REQUIRED PROFILE (50X115)

33651-37000

$4.48

3

PROTECTOR (90X45X28) | MODEL R/S This part replaces 33652-47D00.

33652-47D01

Unavailable

4

LEAD WIRE

09462-00015

$11.10

5

LEAD WIRE | MODEL P This part replaces 33820-17E00.

33820-17E01

Unavailable

5

LEAD WIRE | MODEL R/S

33820-17E01

Unavailable

6

CAP. TERMINAL | MODEL P

33624-01D10

Unavailable

6

CAP, TERMIANL | MODEL R/S

33624-33C10

Unavailable

7

WIRE, BATTERY (-) | MODEL P/R This part replaces 33860-17E00.

33860-46E00

Unavailable

7

LEAD WIRE | MODEL S

33860-46E00

Unavailable

8

HOLDER, BATTERY | MODEL P This part replaces 41540-17E00.

41540-17E10

Unavailable

8

HOLDER, BATTERY | MODEL R/S This part replaces 41540-17E50.

41540-17E61

Unavailable

8

HOLDER, BATTERY | MODEL P CALIFORNIA ONLY

41540-17E10

Unavailable

8

HOLDER, BATTERY | MODEL R/S CALIFORNIA ONLY This part replaces 41540-17E60.

41540-17E61

Unavailable

9

BRACKET | MODEL P

41560-17E00

Unavailable

9

BRACKET | MODEL R/S

41560-17E50

Unavailable

10

BOLT | MODEL P This part replaces 01114-06168.

01550-06167

$2.30

10

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

11

SCREW | MODEL P

02142-06127

$1.49

11

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

12

PLATE, BATTERY CAUTION

33690-17E00

Unavailable
