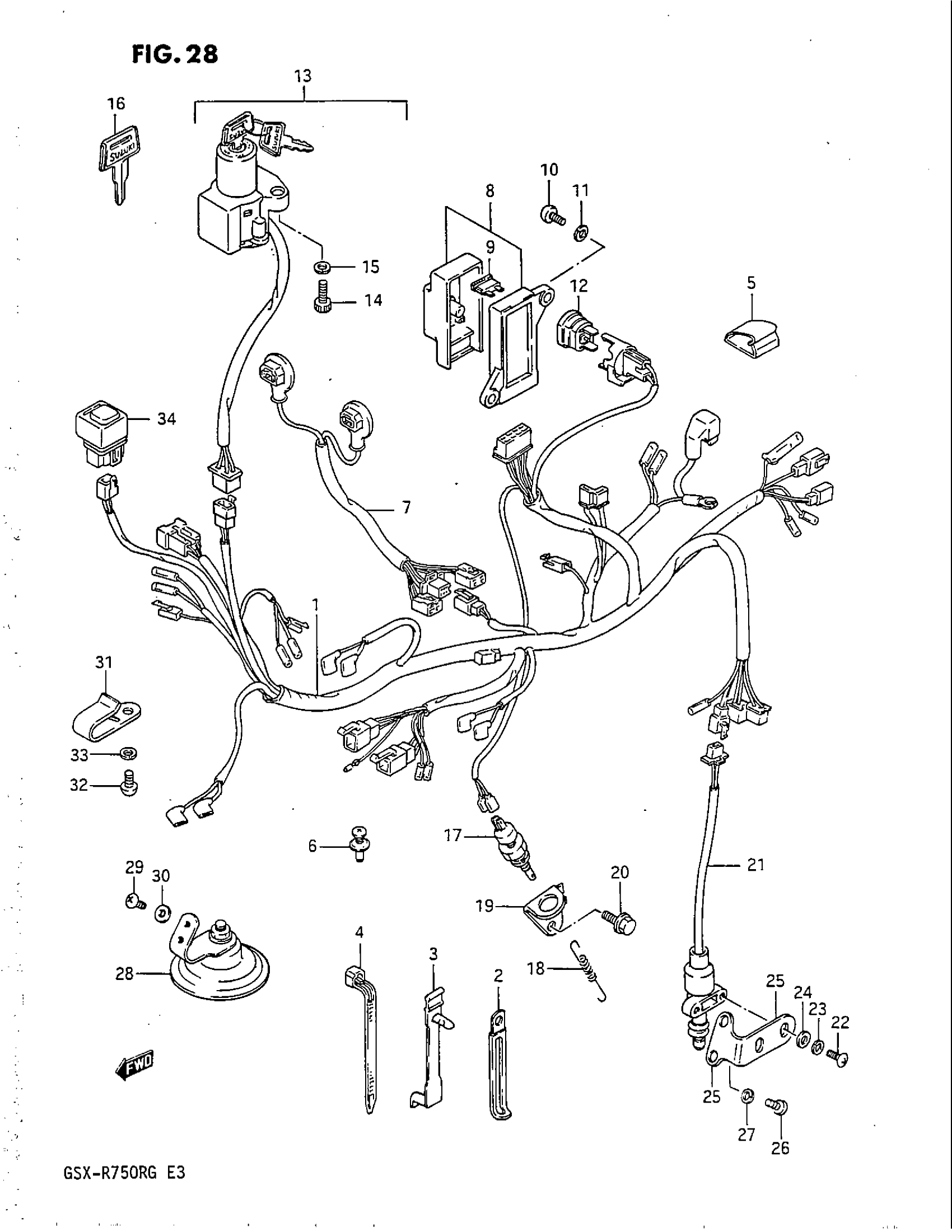

Suzuki GSX-R750R (1986) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING This part replaces 36610-27A50.

36610-27A82

Unavailable

2

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

3

CLAMP This part replaces 09407-07401.

09407-05403

$2.38

4

CLAMP (L:95)

09407-11401

$2.63

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235) This part replaces 09407-25403.

09407-25401

$4.66

5

CLAMP

09408-00052

Unavailable

6

CLIP This part replaces 09409-07305.

09409-07305-5PK

$2.21

7

WIRE,HEADLAMP L This part replaces 36856-06B10.

36856-06B02

Unavailable

8

BOX ASSY, FUSE | Includes Item(s) 9 This part replaces 36740-05A01.

36740-27A00

Unavailable

9

FUSE (10A)

09481-10101

$2.07

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

WASHER This part replaces 08322-21067.

08322-01067

$2.13

12

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

13

SWITCH ASSY, IGNITION | Includes Item(s) 14 - 15

37110-06B00

Unavailable

14

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

KEY, BLANK | OPT

37145-16700

$13.74

17

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

18

SPRING This part replaces 09443-06056.

09443-06056-XC0

Unavailable

19

BRACKET, STOP LAMP SWITCH

43251-27A00

Unavailable

20

BOLT This part replaces 01547-06208.

01547-06207

$2.01

21

SWITCH, SIDE STAND WARNING

37840-14A01

Unavailable

22

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

23

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

24

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

25

BRACKET, SIDE STAND SWITCH

42361-27A00

Unavailable

26

SCREW This part replaces 02112-06128.

02112-06127

$1.84

27

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

28

HORN ASSY

38500-28A00

Unavailable

29

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

30

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

31

CLAMP, HANDLE SWITCH WIRE

36619-06B00

Unavailable

32

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

33

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

34

RELAY ASSY, SIDE STAND This part replaces 38640-06B00.

38740-24X50

$45.20
