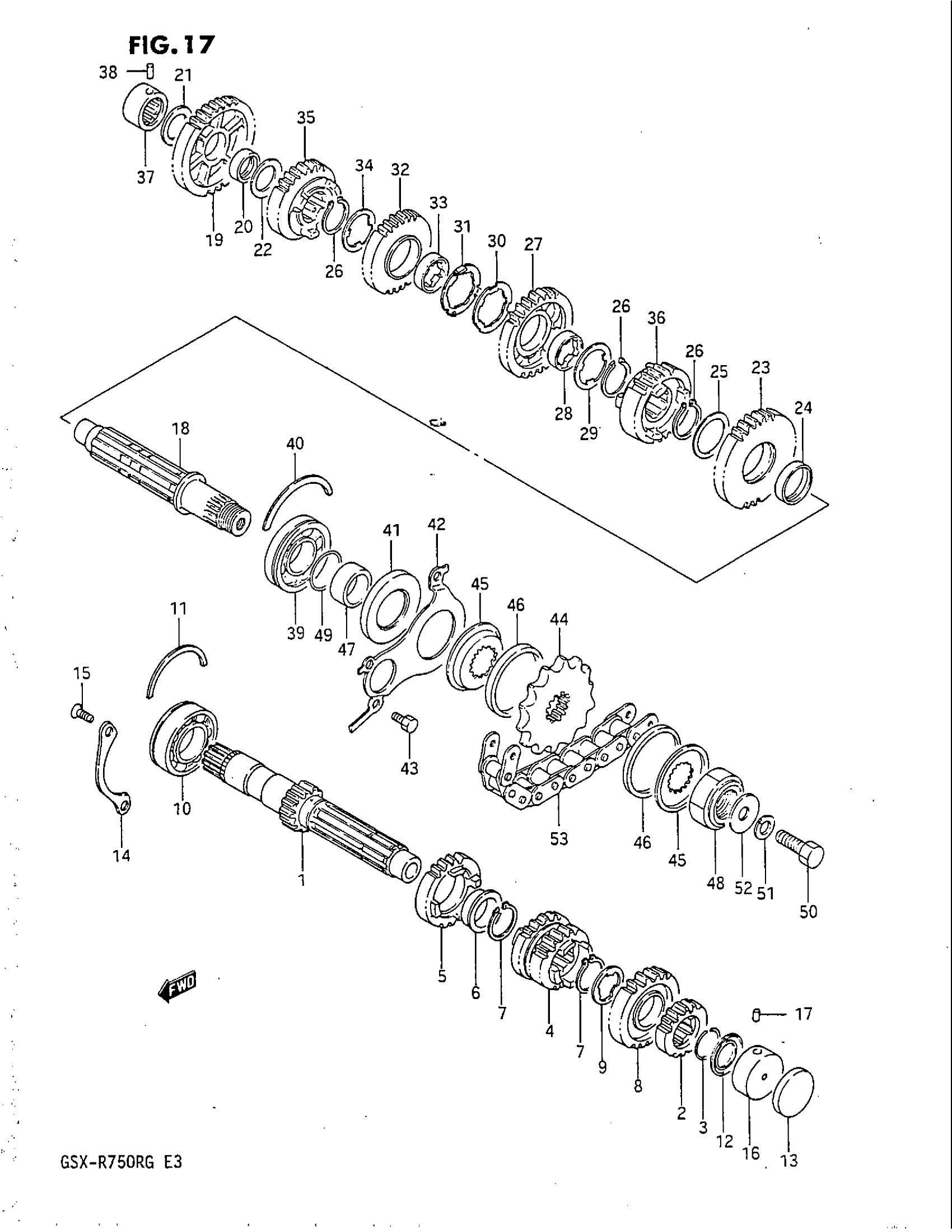

Suzuki GSX-R750R (1986) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 24121-27A30.

24121-27A31

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-27A01

Unavailable

3

CIRCLIP

09380-25006

Unavailable

4

GEAR, 3/4TH DRIVE (NT:17/20)

24231-27A00

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-27A01

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

SNAP RING

09380-25003

$3.04

8

GEAR, 6TH DRIVE (NT:21) This part replaces 24261-27A00.

24261-17C02

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

10

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

11

C RING This part replaces 09390-62006.

09390-62012

$7.31

12

OIL SEAL

09285-20006

$6.51

13

CAP, COUNTER SHAFT

23116-27A30

Unavailable

14

HOLDER, BEARING

24741-27A00

$10.07

15

SCREW

02122-06167

$1.49

16

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

17

PIN

04221-07129

$1.86

18

DRIVESHAFT

24131-27A02

Unavailable

19

GEAR, 1ST DRIVEN (NT:36)

24311-27A01

Unavailable

20

BUSH

09300-22008

$14.82

21

WASHER, RH

08211-20341

$2.80

22

WASHER, LH

08211-22341

$3.85

23

GEAR, 2ND DRIVEN (NT:33) This part replaces 24321-27A01.

24321-27A02

Unavailable

24

BUSH

09300-28001

Unavailable

25

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

$4.77

26

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

27

GEAR, 3RD DRIVEN (NT:28)

24331-27A00

Unavailable

28

BUSH

24332-27A00

Unavailable

29

WASHER, LH

09167-28001

$4.60

30

WASHER, RH (T:1.5)

09167-28002

$4.77

31

WASHER, RH (T:1.0)

09169-28001

$3.85

32

GEAR, 4TH DRIVEN (NT:28) This part replaces 24341-27A00.

24341-27A01

Unavailable

33

BUSH

24332-27A00

Unavailable

34

WASHER, RH

09167-28001

$4.60

35

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

Unavailable

36

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-27A00.

24361-27A02

Unavailable

37

BEARING, RH

09263-20040

$55.20

38

PIN (L:20)

04221-07209

$2.30

39

BEARING, LH This part replaces 09262-25065.

09262-25105

$68.10

40

C RING This part replaces 09390-62006.

09390-62012

$7.31

41

OIL SEAL

09283-34005

$12.61

42

PLATE This part replaces 24751-27A00.

24751-27A01

Unavailable

43

BOLT This part replaces 01107-06108.

01500-06107

$2.06

44

SPROCKET, ENGINE (NT:14) This part replaces 27511-27A11.

27510-21E00

Unavailable

45

HOLDER, DAMPER This part replaces 27516-31301.

27516-19C00

$3.77

46

DAMPER, ENGINE SPROCKET

27517-31300

Unavailable

47

SPACER

09180-25080

Unavailable

48

NUT

09159-20004

$15.67

49

O RING

09280-25001

$1.56

50

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

51

LOCK WASHER This part replaces 08321-31067.

08321-01067

$2.13

52

WASHER

08212-06222

$1.78

53

CHAIN, DRIVE (50HF0X110LE) RK

27600-27A31-110

Unavailable
