1986 Suzuki GSX-R750R Stand Diagram

← All diagrams

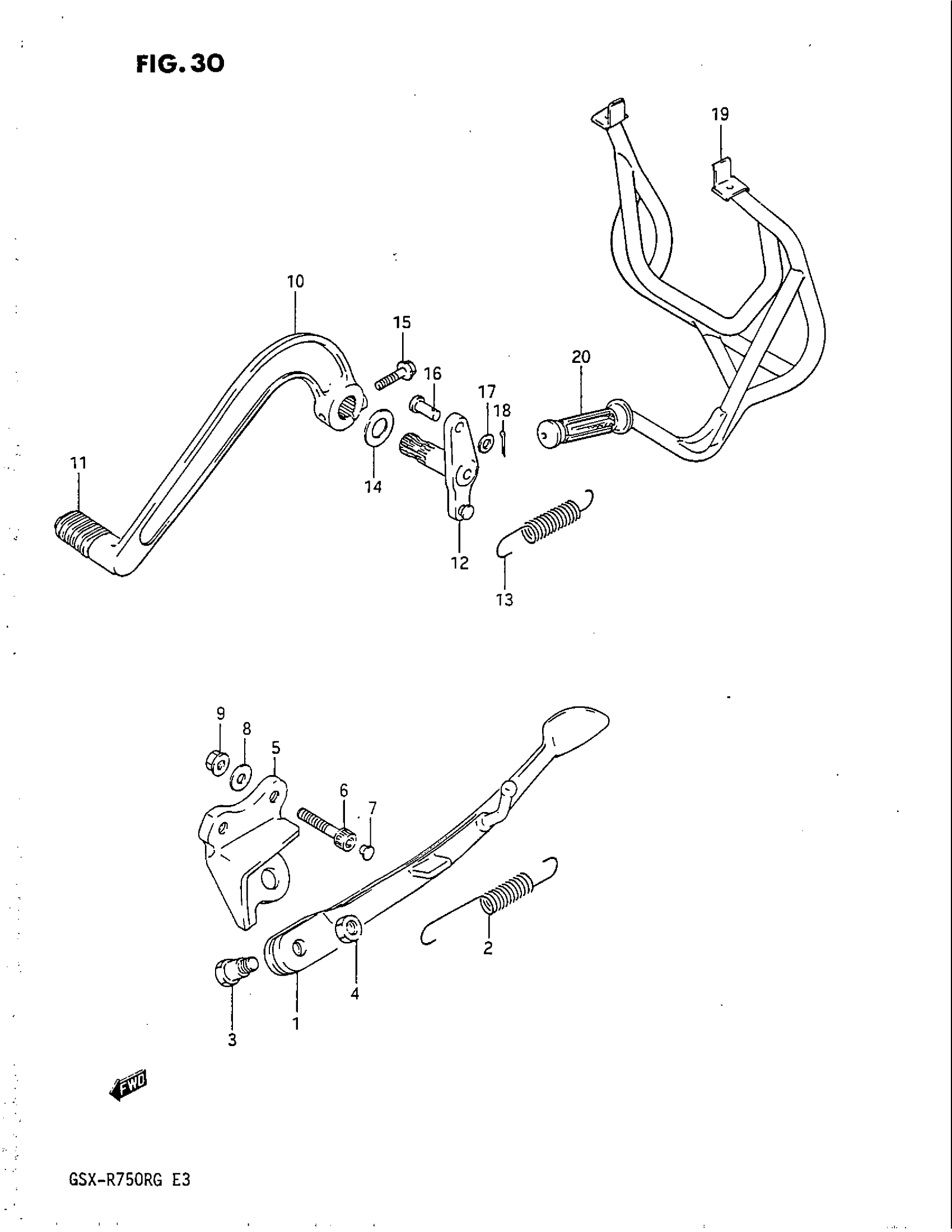

Find the part on the Stand diagram for your 1986 Suzuki GSX-R750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GSX-R750R Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (SILVER) This part replaces 42310-27A01-13L.

42310-27B30-13L

1
Out of stock

2

SPRING This part replaces 09443-14040.

09443-14040-XC0

1
Out of stock

3

BOLT

09111-10036

1

$6.15

In stock

4

1

$2.35

In stock

5

NO DESCRIPTION AVAILABLE This part replaces 42330-27A01-13L.

42330-27A20-13L

1
Out of stock

6

2

$3.14

In stock

7

CAP

41575-04A00

2
Out of stock

8

WASHER

09164-08015

2
Out of stock

9

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

10

PEDAL COMP BRAK This part replaces 43110-27A01.

43110-05C03

1
Out of stock

11

RUBBER, BRAKE PEDAL

43151-04701

1

$5.95

In stock

12

ARM, BRAKE ROD

43120-27A00

1
Out of stock

13

SPRING This part replaces 09443-14044.

09443-14044-XC0

1
Out of stock

14

WASHER, BRAKE PEDAL

43212-04A00

1

$1.48

In stock

15

BOLT

01547-06207

1
Out of stock

16

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

1
Out of stock

17

1

$1.84

In stock

18

1

$1.31

In stock

19

STAND ASSY, REAR | OPT; Includes Item(s) 20

42100-27A30

—
Out of stock

20

GRIP, STAND | OPT

57211-49510

1
Out of stock
