1986 Suzuki GSX-R750R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Suzuki GSX-R750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

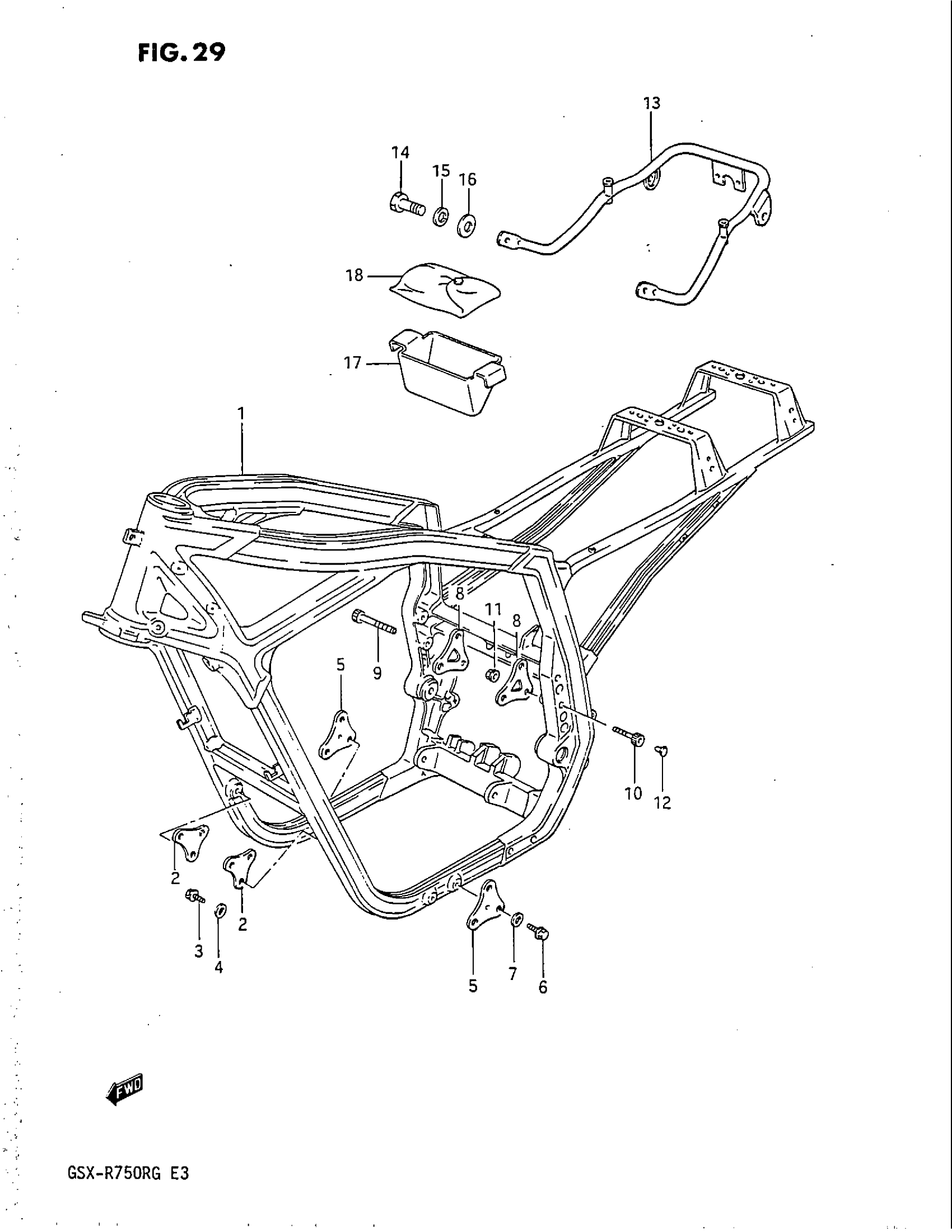

1986 Suzuki GSX-R750R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 41100-27A80.

41100-27A82

1
Out of stock

2

PLATE, ENGINE MOUNT NO.1

41911-27A00

2
Out of stock

3

BOLT This part replaces 01517-08258.

01550-08257

4
Out of stock

4

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

4
Out of stock

5

PLATE, ENGINE MOUNT NO.2

41921-27A00

2
Out of stock

6

BOLT This part replaces 01517-08258.

01550-08257

4
Out of stock

7

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

4
Out of stock

8

PLATE, ENGINE MOUNT NO.3

41931-27A00

2
Out of stock

9

BOLT This part replaces 07110-08408.

07130-08407

2
Out of stock

10

CAP HEAD BOLT M8X45 This part replaces 07110-08458.

07130-08457

2
Out of stock

11

NUT

08319-31087

4
Out of stock

12

CAP

41575-04A00

4
Out of stock

13

GRIP, REAR

43980-27A31

1
Out of stock

14

BOLT This part replaces 01107-06207.

01500-06207

2
Out of stock

15

2

$2.28

In stock

16

WASHER This part replaces 08322-21067.

08322-01067

2
Out of stock

17

HOLDER, TOOL

47431-27A01

1
Out of stock

18

TOOL ASSY This part replaces 09800-00344.

09800-21068

1
Out of stock
