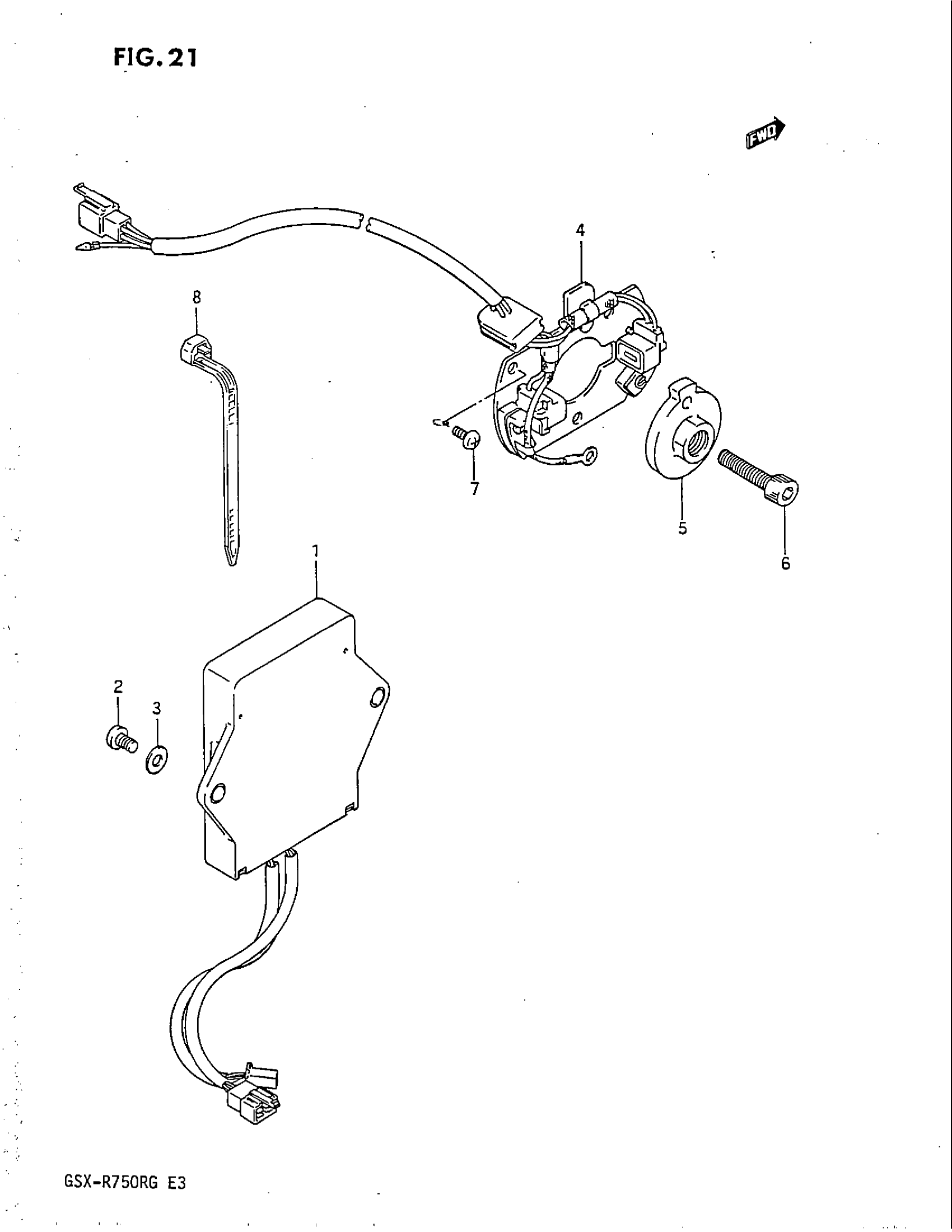

Suzuki GSX-R750R (1986) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER UNIT This part replaces 32900-27A00.

32900-06B00

Unavailable

2

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

3

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

4

SIGNAL GENERATOR ASSY

33110-27A00

Unavailable

5

ROTOR, SIGNAL

33120-27A00

Unavailable

6

BOLT, STEERING DAMPER This part replaces 07110-08306.

07130-0830A

$1.74

7

SCREW

02112-05107

$1.49

8

CLAMP

09407-11401

$2.63
