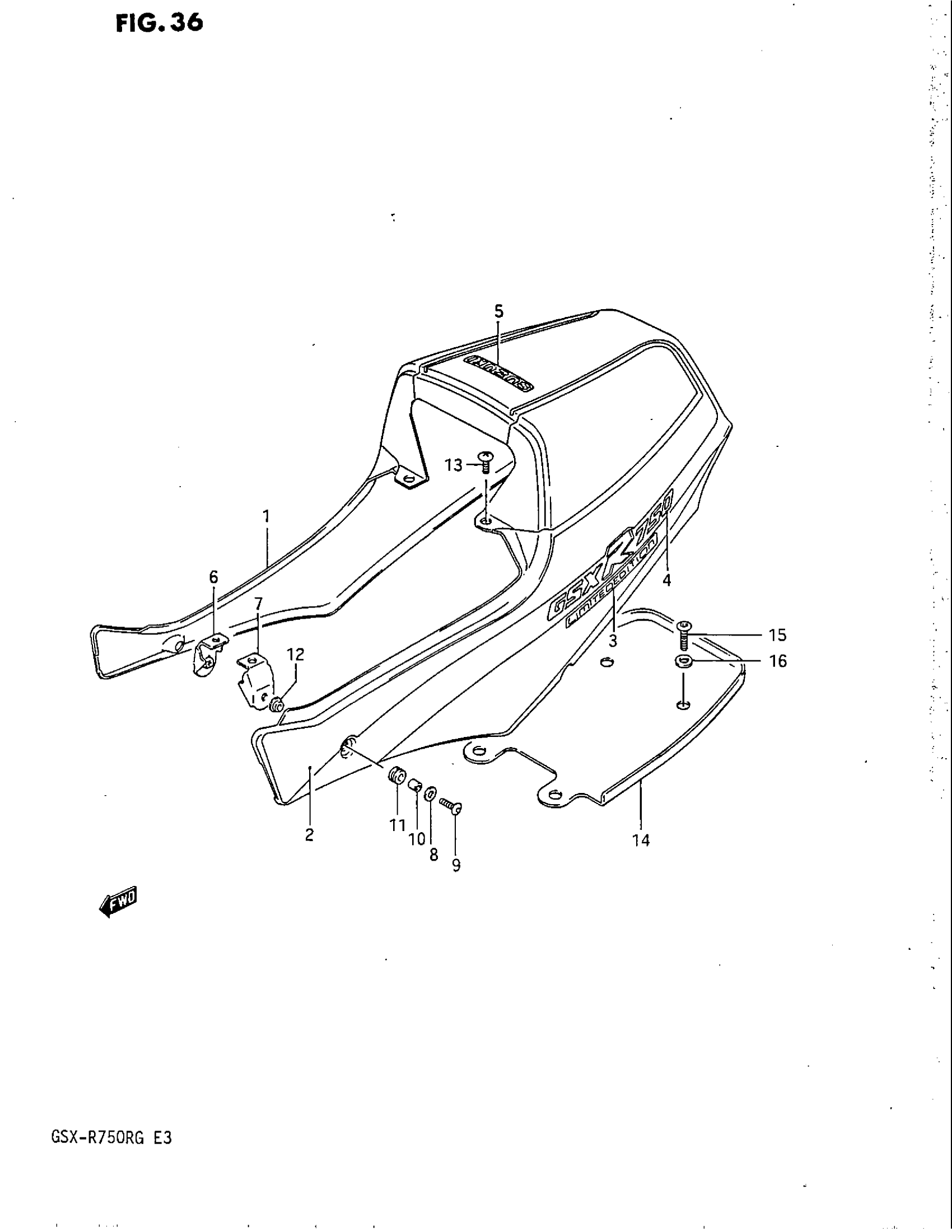

Suzuki GSX-R750R (1986) SEAT TAIL COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 45510-27A95-8RC.

45590-27A90-8RC

Unavailable

2

TAPE SET, TAIL COVER LH (RED

68160-27A00-29W

Unavailable

3

EMBLEM, LIMITED EDITION

68166-27A10-7YT

Unavailable

4

EMBLEM

68166-27A21-73E

Unavailable

5

EMBLEM,"SUZUKI" This part replaces 68166-31300-07G.

68166-31310-719

Unavailable

6

HOLDER, SEAT TAIL COVER RH

47141-27A30

Unavailable

7

HOLDER, SEAT TAIL COVER LH

47171-27A30

Unavailable

8

WASHER, OUTER

09160-06056

$1.72

9

SCREW, SIDE

09139-06028

$3.70

10

SPACER This part replaces 09180-06152.

09180-06262

$2.55

11

CUSHION

09320-09016

$1.97

12

WASHER

09169-06041

$2.20

13

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

14

BOTTOM, SEAT TAIL COVER

45561-27A30

Unavailable

15

SCREW

09139-06039

$2.19

16

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49
