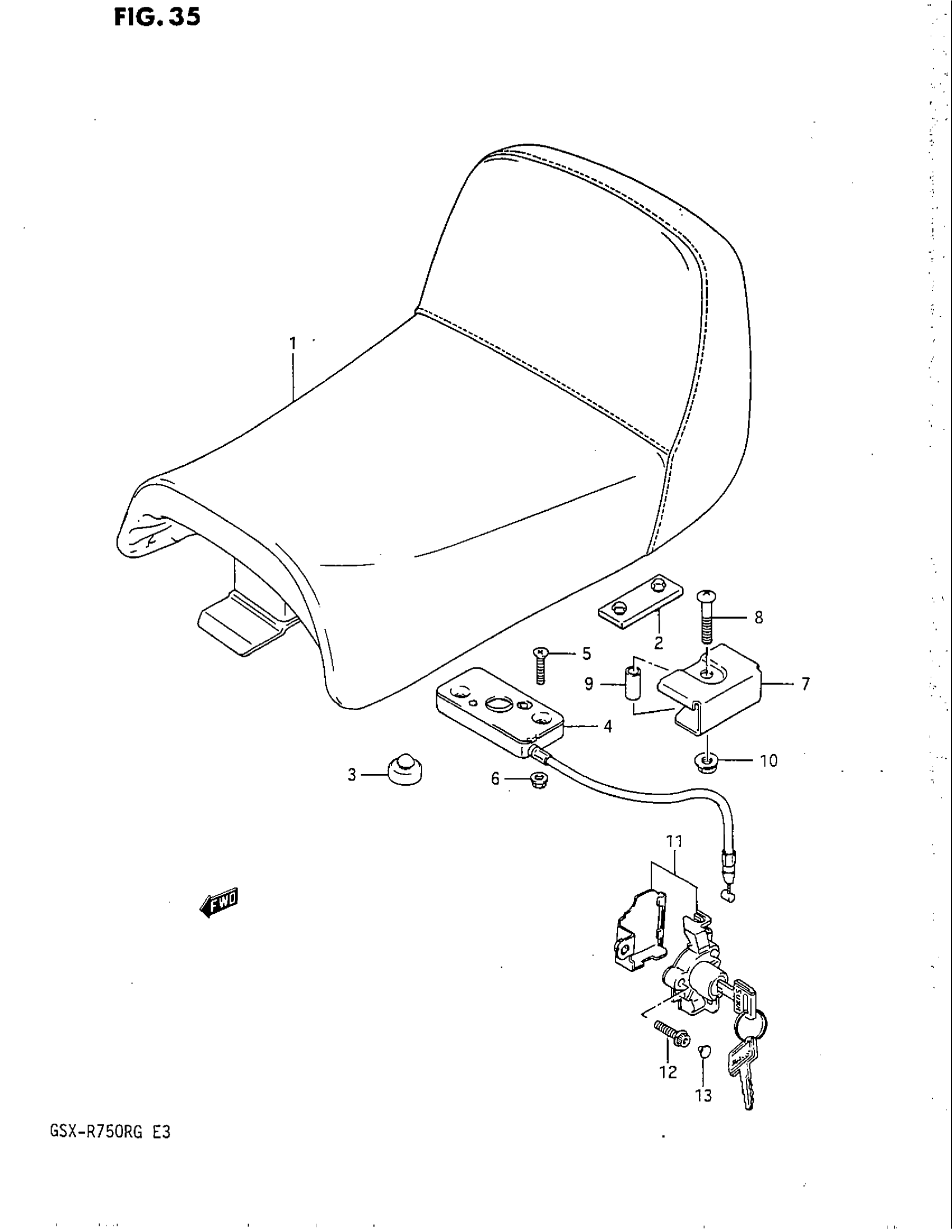

Suzuki GSX-R750R (1986) SEAT Diagram

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45100-27A40-54G.

45100-27A31-48H

Unavailable

CUSHION FRONT

09321-10002

$2.22

CUSHION This part replaces 09321-16710.

45149-16710

$3.88

BRACKET, SEAT SUPPORT REAR

45220-27A01

Unavailable

SCREW This part replaces 02122-06305.

02122-0630B

$2.06

NUT This part replaces 08316-26065.

08316-2006A

$2.63

PLATE, SEAT CUSHION

45138-27A30

Unavailable

SCREW

02142-06357

$1.78

SPACER,6.5X9X17 This part replaces 09180-06185.

09180-06270

Unavailable

NUT

08319-31067

$2.03

LOCK SET, SEAT This part replaces 95700-27A00-KEY.

95700-27820

Unavailable

BOLT, FRONT This part replaces 07120-06205.

07120-0620B

$3.04

CAP

09250-05009

$2.19
