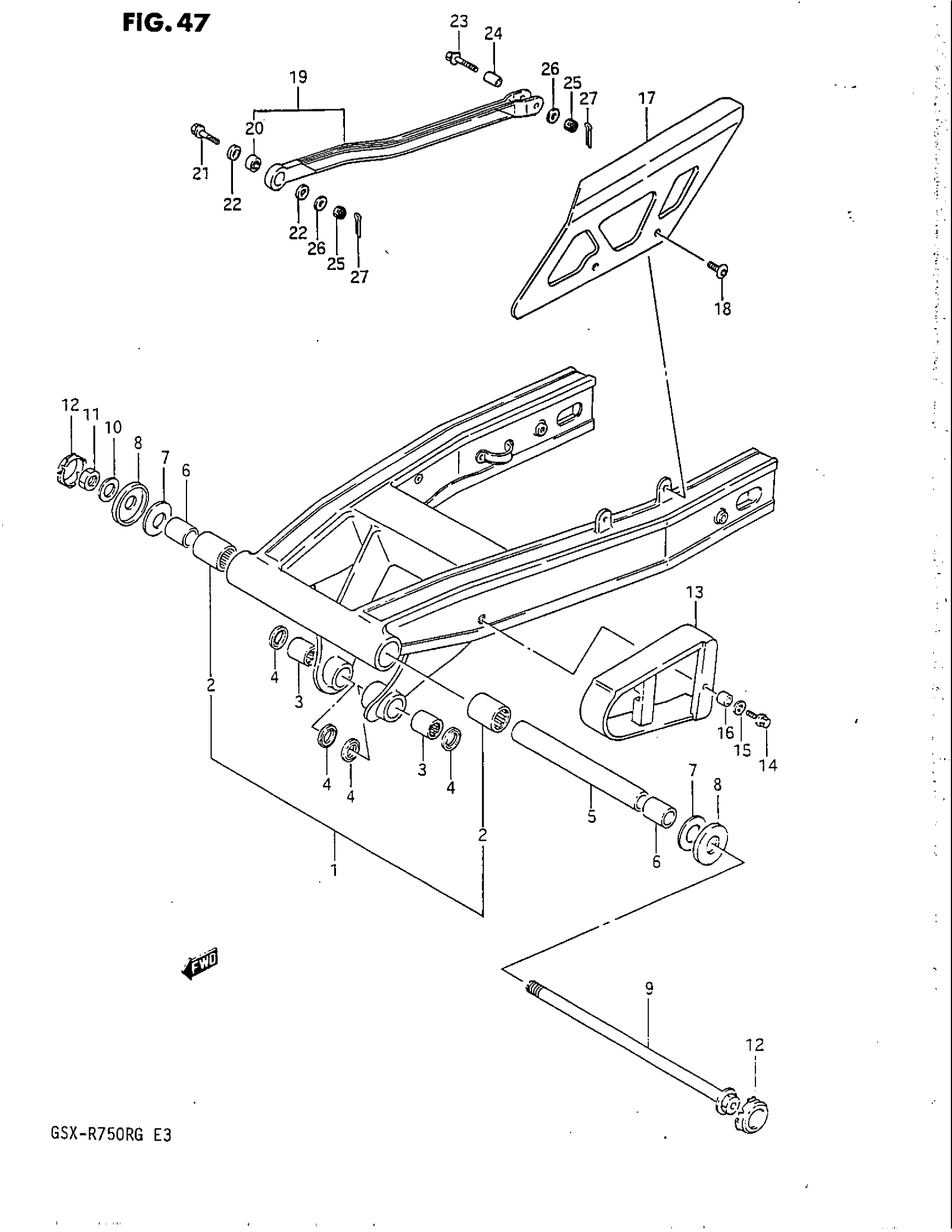

Suzuki GSX-R750R (1986) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 61000-27A40.

61000-27A41

Unavailable

2

BEARING

09263-22025

Unavailable

3

.BEARING (17X24X25) This part replaces 09263-17029.

09263-17053

$21.66

4

.SEAL,OIL (17X24X3) This part replaces 62647-02B00.

09285-17007

$3.76

5

SPACER, CENTER

61282-27A00

Unavailable

6

SPACER, PIVOT BEARING

61251-27A00

Unavailable

7

WASHER

08211-16381

$2.42

8

DUST SEAL, PIVOT SHAFT

61262-49000

Unavailable

9

SHAFT, SWINGING ARM PIVOT

61211-27A01

Unavailable

10

WASHER

09160-14015

Unavailable

11

NUT This part replaces 09159-14013.

09159-14019

$11.61

12

CAP, SWINGING ARM PIVOT

61222-43400

$5.24

13

BUFFER, CHAIN TOUCH DEFENCE

61273-27A00

Unavailable

14

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

15

WASHER (6.5X16X1.2)

09160-06019

$1.49

16

SPACER

09180-06135

Unavailable

17

CASE, CHAIN

61311-27A30

Unavailable

18

SCREW

09139-06027

$2.16

19

NO DESCRIPTION AVAILABLE | Includes Item(s) 20 This part replaces 64300-27840.

64300-27841

Unavailable

20

BEARING This part replaces 64352-40411.

64352-40401

Unavailable

21

BOLT, FRONT

09103-08160

Unavailable

22

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

23

BOLT, REAR This part replaces 09103-08161.

09103-08160

Unavailable

24

SPACER, TORQUE LINK

64336-20A00

Unavailable

25

NUT This part replaces 08314-41088.

08314-4008B

$3.03

26

WASHER This part replaces 08322-11088.

08322-01087

$2.13

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
