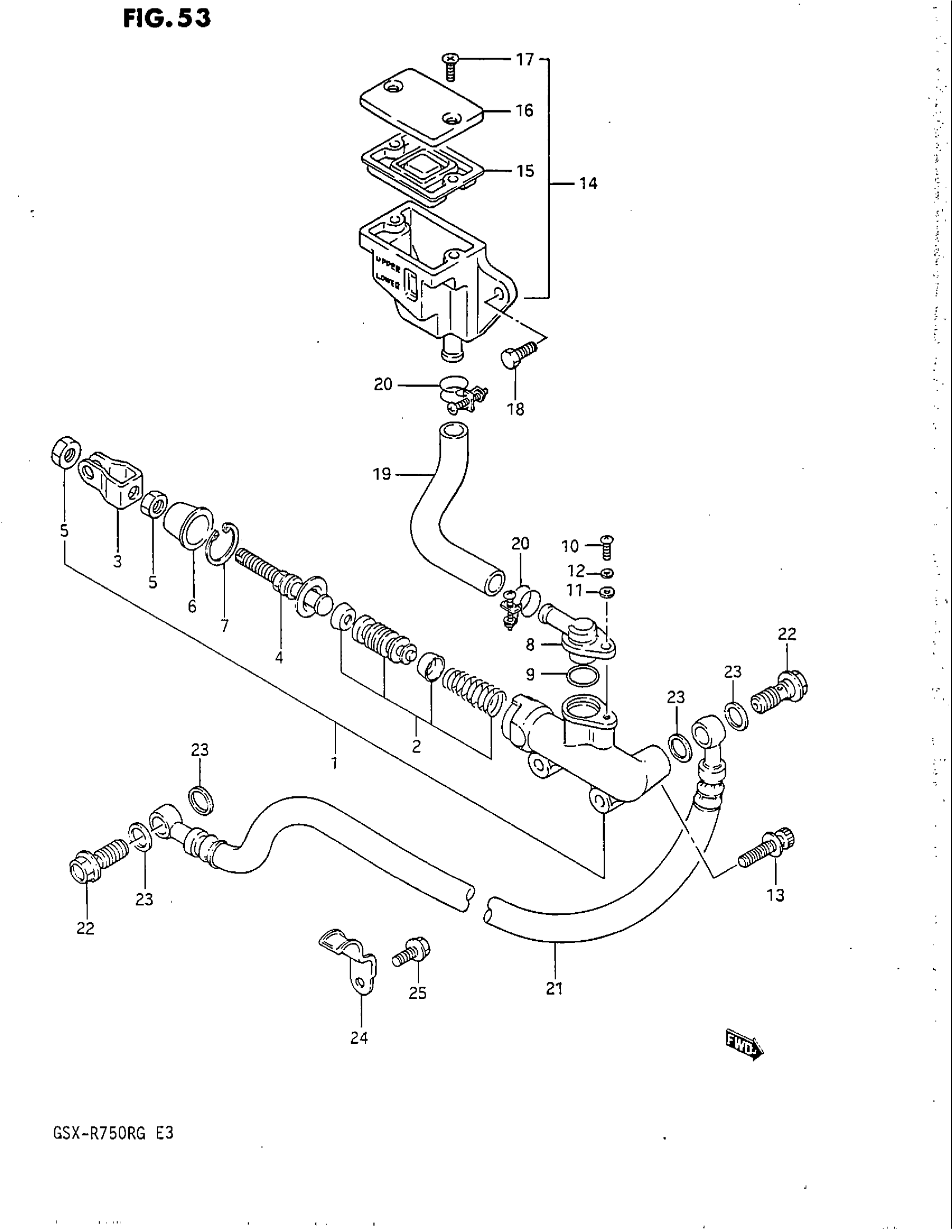

Suzuki GSX-R750R (1986) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 12

69600-27A30

Unavailable

2

PISTON & CUP SET This part replaces 69600-16820.

69600-04810

$49.42

3

YOKE

69692-27A30

$13.81

4

ROD, PUSH

69670-27A30

$26.23

5

NUT

69693-27A30

Unavailable

6

.BOOT

69691-00A00

$5.30

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-05A00

$5.56

9

O RING

69686-34200

$2.93

10

SCREW This part replaces 02112-04124.

02112-0412A

$1.49

11

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

12

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

13

BOLT This part replaces 09106-06062.

07120-0635B

$3.38

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17 This part replaces 69740-27A31.

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP This part replaces 59669-04710.

69669-24A01

$15.10

17

SCREW

69689-04A00

$1.78

18

BOLT This part replaces 01107-06128.

01500-06127

$1.97

19

HOSE, RESERVOIR

69731-27A00

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

21

HOSE, REAR BRAKE This part replaces 69480-27A10.

69480-27A11

Unavailable

22

BOLT

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

CLAMP

61196-06B01

Unavailable

25

BOLT This part replaces 01517-05128.

01550-0512B

$2.87
