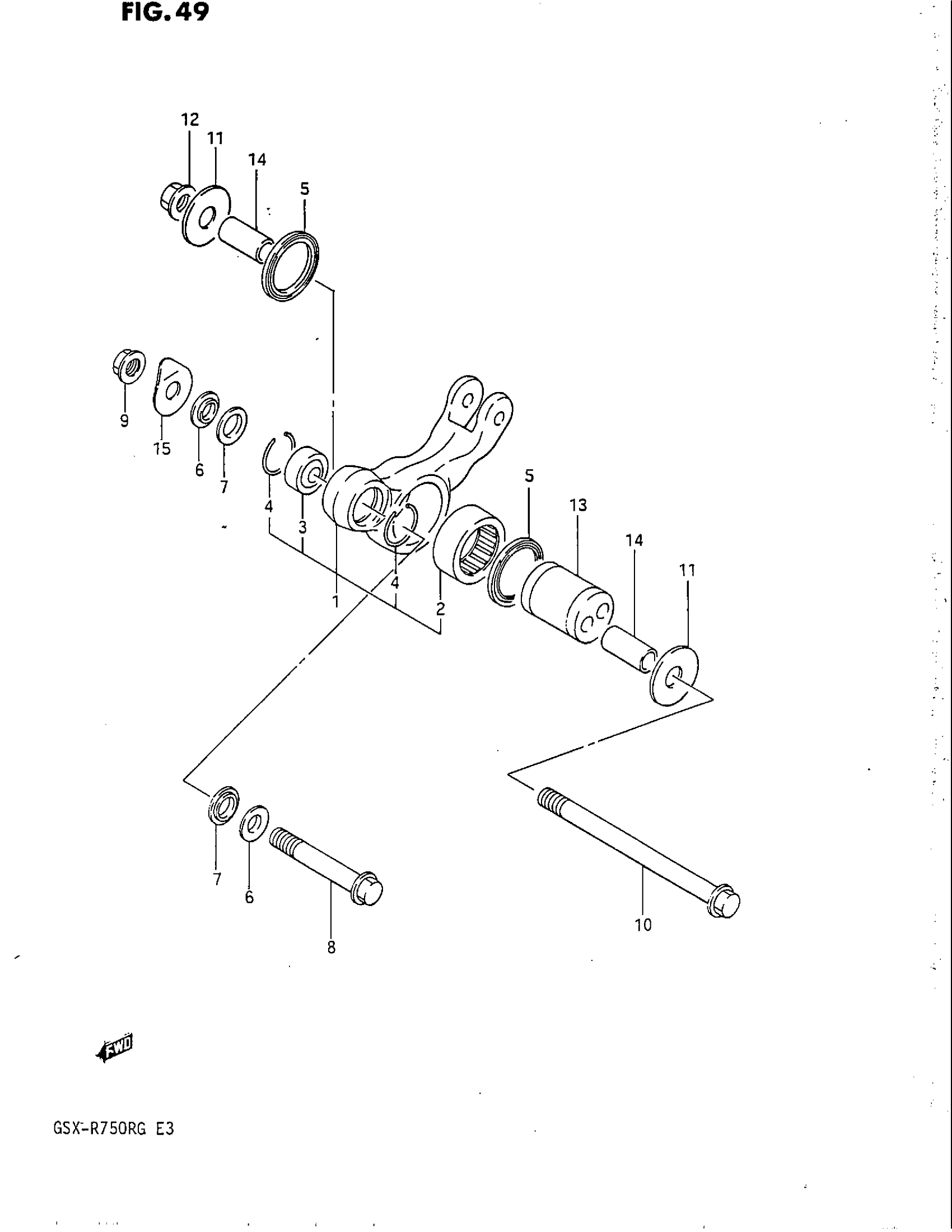

Suzuki GSX-R750R (1986) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION | Includes Item(s) 2 - 4

62600-27821

Unavailable

2

BEARING

09263-35020

Unavailable

3

BEARING

09269-12004

Unavailable

4

RING, STOPPER REAR This part replaces 62657-05A00.

62277-27C20

$3.92

5

DUST SEAL

62624-02B00

Unavailable

6

SPACER, FRONT

62316-05A01

$10.54

7

DUST SEAL

62647-05A00

$3.30

8

BOLT

62668-27A00

$12.28

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

SHAFT

62621-27A20

Unavailable

11

WASHER

09160-12076

Unavailable

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

SPACER, ECCENTRIC

62623-27A21

Unavailable

14

SPACER

62646-27A20

Unavailable

15

SHIM

62667-27A00

Unavailable
